Product introduction

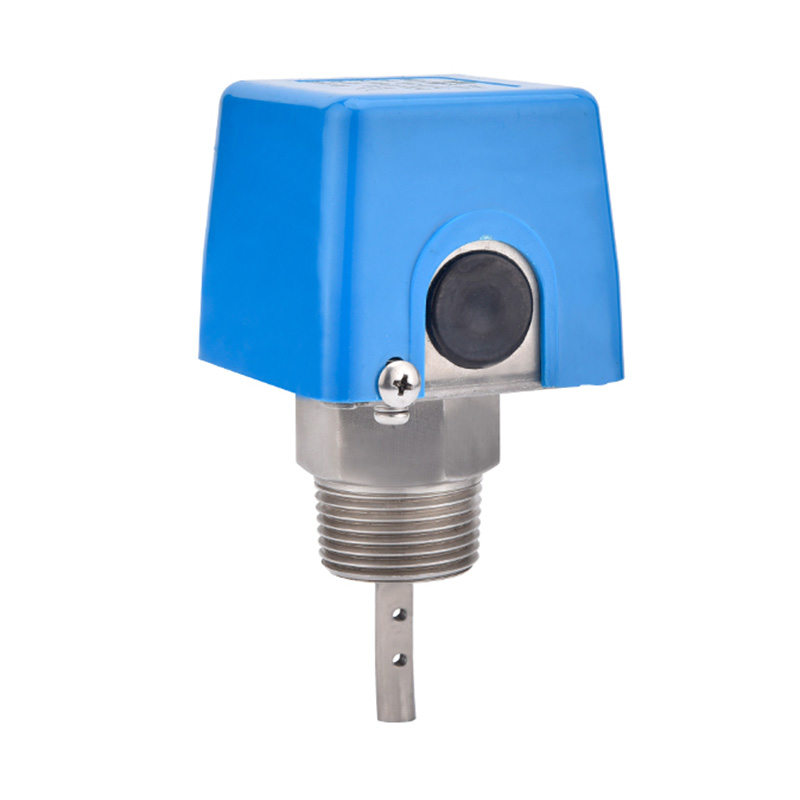

Mechanical flow switch, built-in spring-supported baffle, when the flow rate reaches the prefabricated value the mechanical structure triggers the microswitch. spdt output, small pressure loss, mechanical and electronic parts are completely isolated / flow range, easy to regulate the setting, the switch is equipped with a set of baffle (5 pieces), according to the site conditions flexible combination of the use of a wide range of pipelines, the switch has a high degree of reliability and good reproducibility The switch has high reliability and good repeatability.

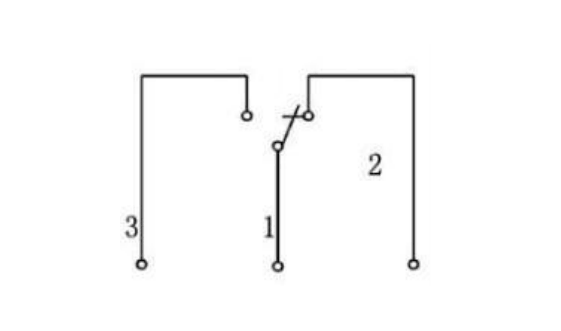

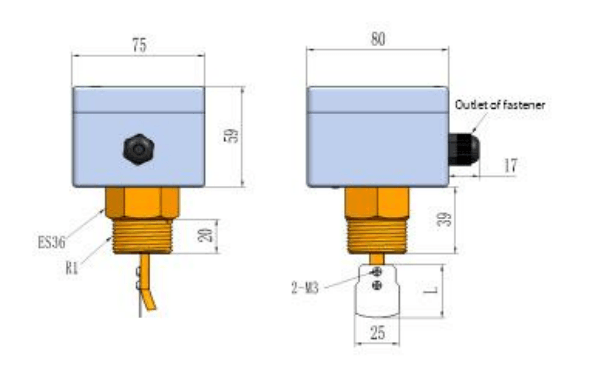

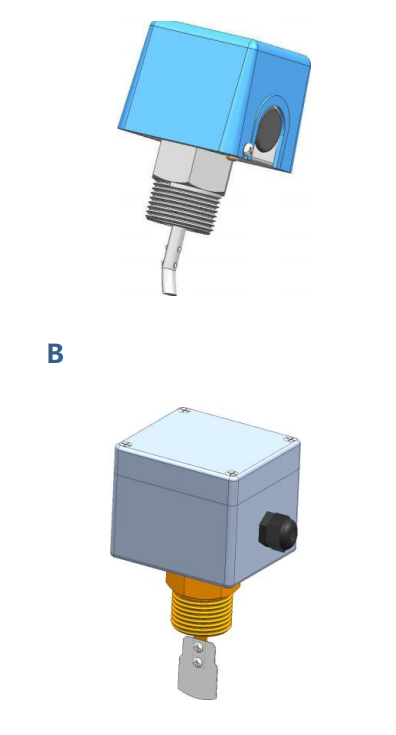

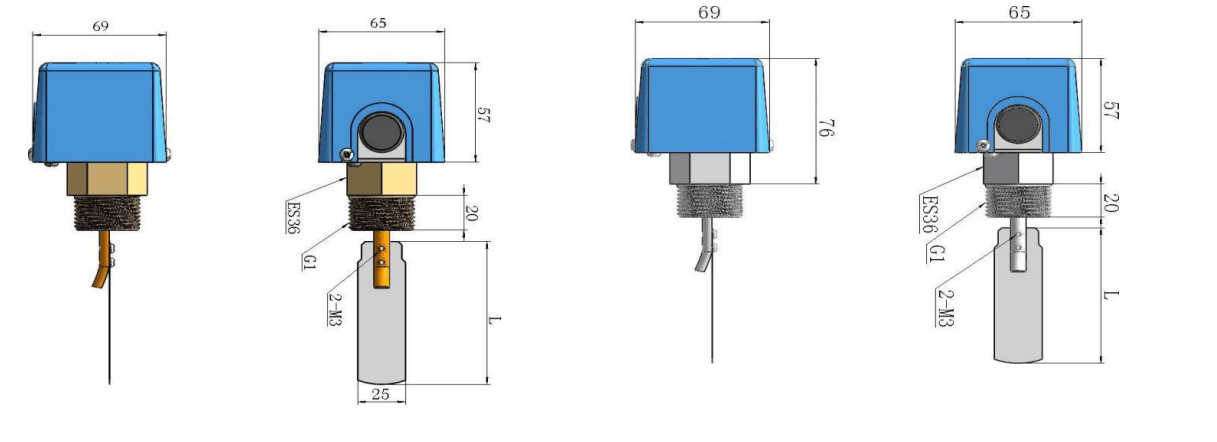

Product Application Model A-Stainless steel Technical Specification Applicable Range Of Blade Length And Flow Dimension Figure Wiring Diagram Selection Table

Pneumatic liquid dual purpose, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning is suitable for diameter >25mm pipeline.

Setting range: See the table below
Repeatability: ± 2.5% total range
Wiring mode: terminal wiring
Output: Switch Normally On + Normally Closed (250VAC,3A)
Pressure: 16bar (brass), 40bar (stainless steel)
Average pressure loss: 0.08bar(at maximum flow)
Ambient temperature:-25... 80 ℃
medium temperature: brass material 90°C, stainless steel material 180℃
interface thread: R1 female thread
Protection grade: IP33 (type A), IP67 (type B)
materials:
Body: stainless steel
Shell material: engineering plastic/zinc alloy
Process connection: brass/stainless steel
baffle: stainless steel

blade length Pipe diameter (adjustable range L/min)
1” 2” 3” 4” 5” 6”
1# 20-48 120-280
2#   40-140 180-470 350-920
3#     100-220 210-590 380-1400
4#       160-450 330-1200
5#         230-900 400-1800

SN41- A H A specification weight
SN41-         SN41 series baffle type flow switch
  A       A
  B       B
        Threaded interface R1
      H   RA
        A Process connection: Brass material 0.55
        B Process connection: stainless steel
material
0.85
 * Please indicate medium flow direction, medium type, pipe diameter and expected set value when ordering. We can
 complete the setting for you at the factory.
 * For viscous media, please indicate viscosity, temperature and type of media.
 * For gaseous media, please indicate pressure (gauge/absolute pressure), temperature and medium type.
 * Micro switch can be imported according to customer requirements of two options.
 * The selection table is only available for parameter selection, and the corresponding code is delivered.
