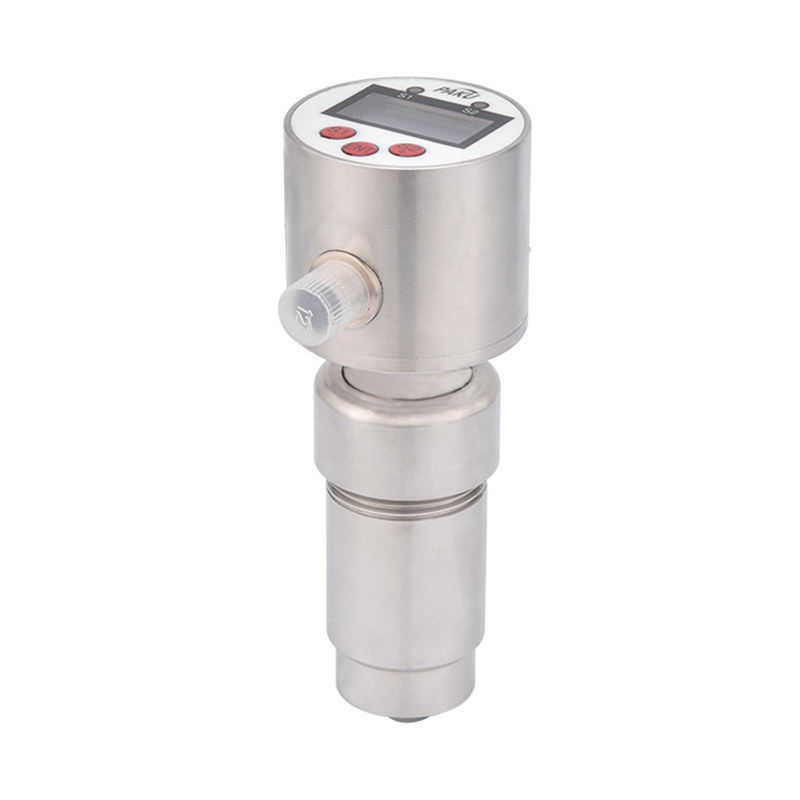

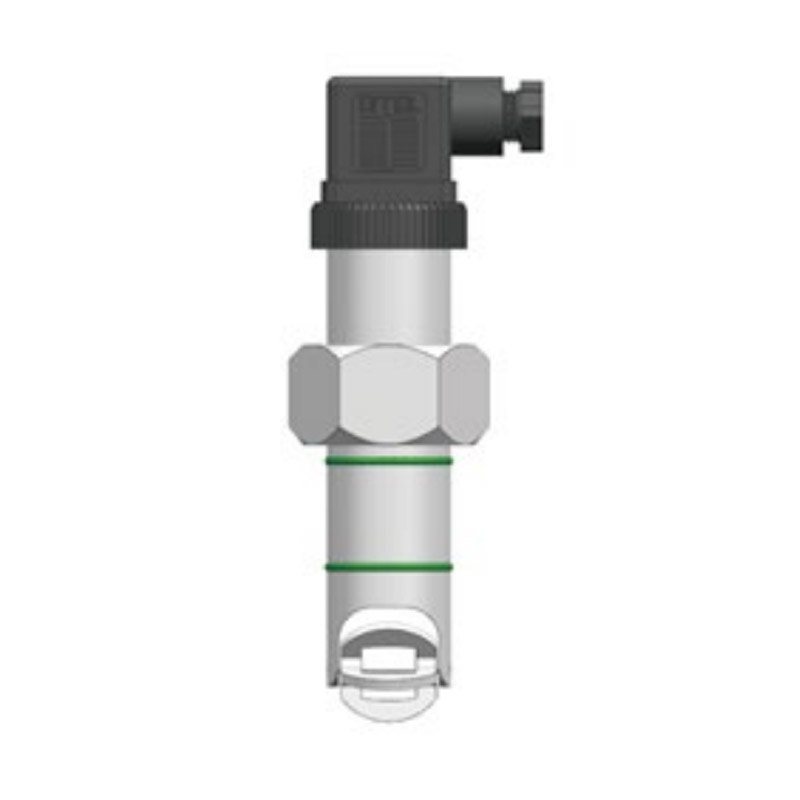

Insertion Impeller Flow Sensor-SN51C

Product introduction

SN51C series insertion impeller flow sensor and an intelligent flow switch, is a compact flow sensor, with small size, easy to set up and other advantages, built-in intelligent circuitry, can be set arbitrarily flow upper and lower limits of the alarm value can be set remotely to monitor the real-time flow conditions, the full range of parameters on-site arbitrary setup, and its impeller measuring medium through the flow through the sensor intelligent circuitry to process arbitrary programming.
Hall-type pulse output, open collector PNP/NPN, strong driving ability.
-High chemical resistance
-IP65 protection class, suitable for harsh field environment.
-Plug-in type for easy installation
-Good stability, strong anti-interference ability
-Good reliability, maintenance-free

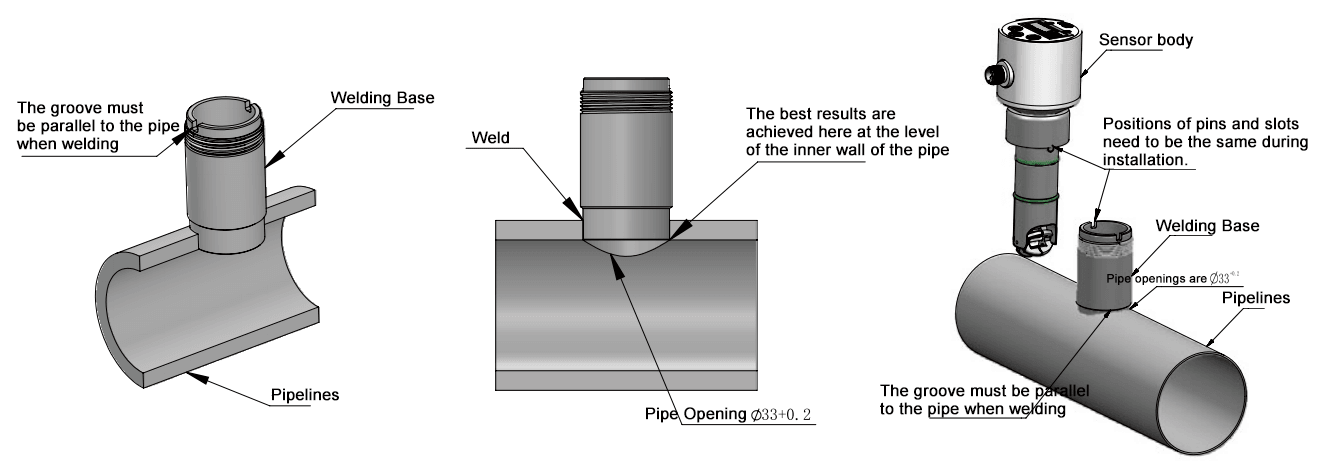

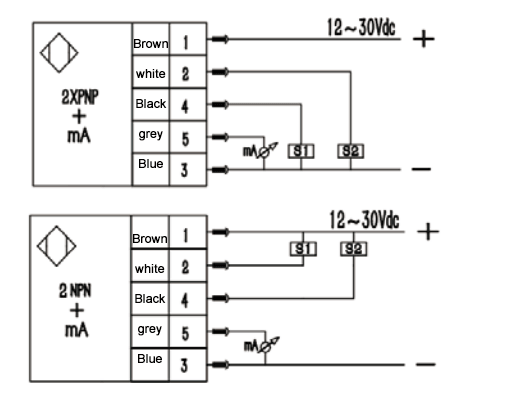

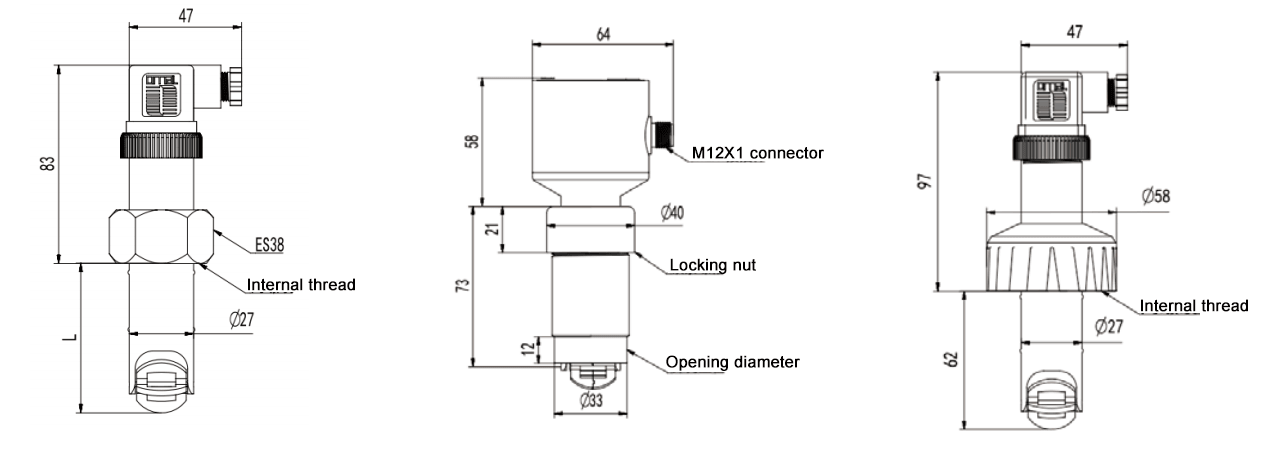

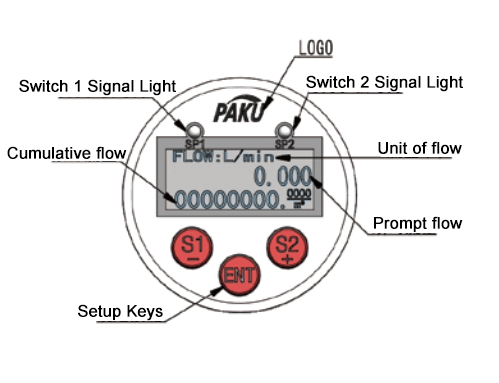

Technical Indicators Dimension Drawing Wiring Diagram Panel Schematic Schematic Diagram Of Welding Base Selection Table
Flow rate range 0.15 ~6m/s
Pipe diameter range DN15-DN600 (½ - 24 inch)
Supply voltage DC 5 ~24V
Repeatability accuracy/linearity accuracy ± 1.5℅ full scale
Temperature and pressure PP Body 12.5bar@25℃ 1.7bar@90℃
PVDF Body 14.0bar
@25℃ 1.7bar@100℃
PVDF Body 14.0bar@25℃ 1.7bar@100℃
Overflow Components Sensor body PP/PVDF
O-ring FPM/EPDM
Impeller PVDF
Bearing/Shaft High-temperature oxide pick ZrO2 (ceramic)

SN51C- A P 25  A A     Detailed description
SN51C-                 SN51C Series Insertion Impeller Flow Sensor
  A               Local display
  B               No display
    P             PNP Output
    N             NPN Output
    M             Pulse Output
      25            Pipe diameter: DN25
      32            Pipe diameter: DN32
      40            Pipe diameter: DN40
      DN...           Specify the specific pipe diameter when ordering (DN15-DN600)
        B         Impeller material :PVDF
                Body material :304 stainless steel
                Body material :PP
                Body material: CPVC
                Body material: PVDF
                Body material :PTFE
            A     Shaft :ZrO2
                Two switching outputs
                Two switching + analogue 4-20mA outputs
                Two switches + pulse output
                T Default temperature range :0-100℃
                T... Customised temperature range
* The selection table is for parameter selection only and is shipped with the corresponding code for the parameter.
