Pipeline baffle explosion-proof flow switch SN-42B

Product introduction

Built-in spring-supported baffle with a mechanical structure that triggers a microswitch when the flow rate reaches a pre-set value. In-line mounting, good repeatability, dirt resistance, switching value setting by knob.

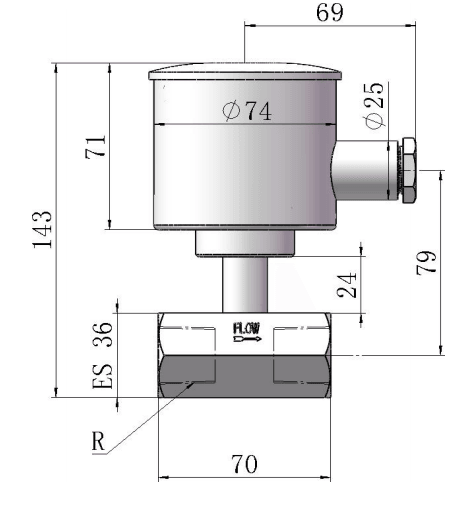

Product Application Dimension Figure Technical Specification Selection Table

Vapor-liquid dual purpose, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning/fire protection industry/petrochemical industry and other special protection requirements.

setting range:see the table below for details
Repeatability: 士2.5% total range
Wiring mode: terminal wiring
Output: Switch Normally On + Normally Closed (250VAC,3A)
Pressure:40bar
Average pressure loss: 0.08bar(at maximum flow)
Ambient temperature: -25...80℃
medium temperature:250℃
level of protection:IP67
materials:Body: stainless steel
Processconnec
tion: stainless steel
Connecting rod: stainless steel
Flapper: stainless steel
Protective enclosure: stainless steel explosion-proof external junction box

Ppiping
diameter
weight
    Kg
Interface thread
D
catch
A/B
pressure
Bar
slow-
moving
L/min
adjustable
range
L/min
Model (material)
15  <1.5kg R1”taper thread A 16  3-11 SN42B-01RGA( stainless steel )
15  R1”taper thread B 16  5-17 SN42B-01RGB( stainless steel )
20  R3/4”taper thread A 16  4.2--18 SN42B-02RGA( stainless steel )
20  R3/4”taper thread B 16  8.3--37 SN42B-02RGB( stainless steel )
25  R1”taper thread A 16  5.2--23 SN42B-03RGA( stainless steel )
25  R1”taper thread B 16  10--48 SN42B-03RGB( stainless steel )
32  R1 1/4”taper thread A 16  8.1--39 SN42B-04RGA( stainless steel )
32  R1 1/4”taper thread B 16  19-90 SN42B-04RGB( stainless steel )
40  R1 1/2”taper thread A 16  15--69 SN42B-05RGA( stainless steel )
40  R1 1/2”taper thread B 16  25--111 SN42B-05RGB( stainless steel )
