Center water outlet special level switch-LF21D

PREV: Compact tuning fork material (liquid) level switch-LF100B
NEXT: Cable float level switch-LF900

Product introduction

Magnetic reed switch induction. The float guide rod is equipped with an annular magnetic ring. The float moves up and down with the liquid level, thereby triggering or releasing the reed switch inside the stainless steel tube to generate a switch signal.
Can be installed on the top or bottom. Compact and robust structure, reliable performance, good repeatability, long service life, and high temperature resistance.

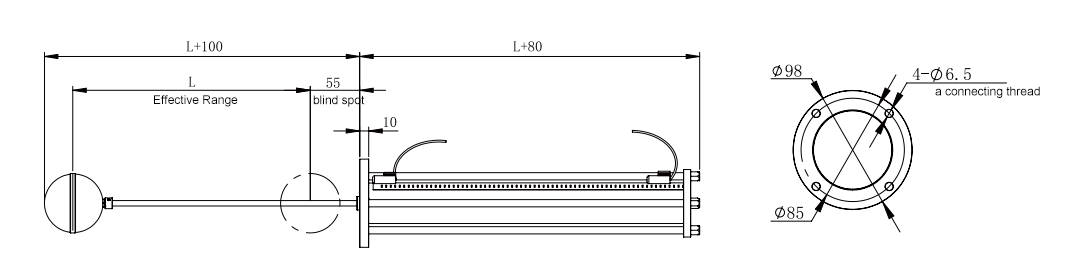

Product Applications Technical Parameters Dimension Drawing Selection Table

For level measurement of liquids with density ≥0.75g/cm³.

Measuring stroke: customized by user.
Medium temperature: -20℃...80℃
Medium density: ≥0.75g/cm³
Switch output type:
Contact type: magnetic reed switch
Contact capacity: 250VAC, 0.5A
Output: normally open
Protection rating: IP65
Wiring method: direct cable
Materials:
Float: stainless steel
Body: alumina
Display window: engineering plastic

LF21D-

L

N

D

1

Details

LF21D-

LF21D Series Center Outlet Type Level Switch

L

Measuring range: special customization L1 = mm

N

Normally open

F

Normally closed

D

Flange connection

Special customization

1

1 switching output

2

2 switching outputs

..

Customized switching output according to customer requirements

* The selection table is only for technical selection. The factory model corresponds to the selection model via coding.
