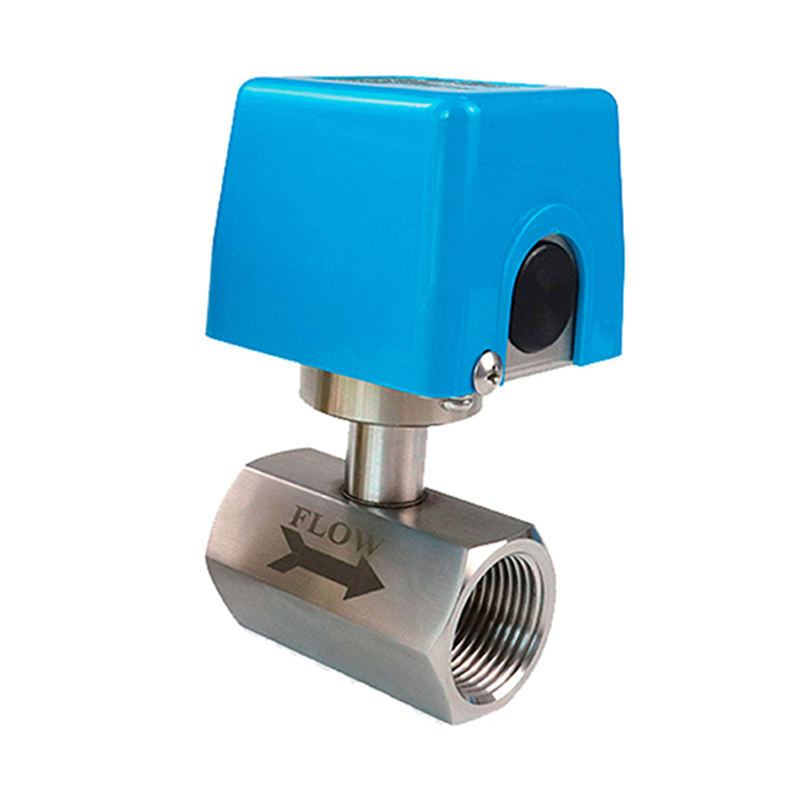

Pipeline baffle flow switch-SN42

PREV:
NEXT:
Product introduction

Built-in spring-supported baffle with a mechanical structure that triggers a microswitch when the flow rate reaches a pre-set value. In-line mounting, good repeatability, dirt resistance, switching value setting by knob.

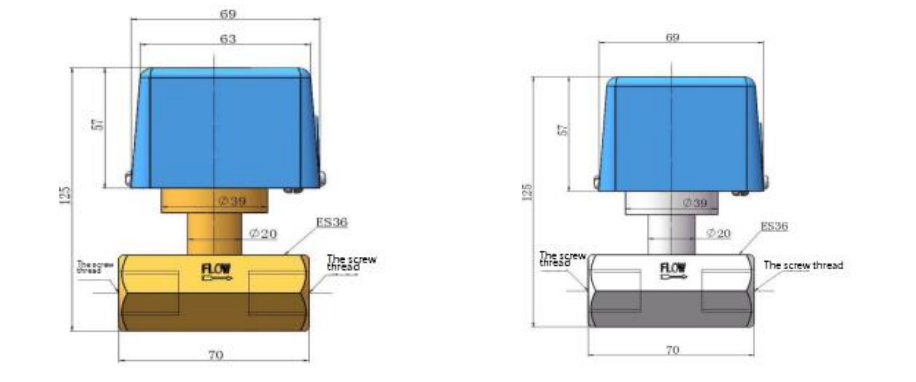

Product Application Technical Specification Wiring Diagram Dimension Figure Installation Instructions Applicable Medium Selection Table

Gas-liquid type, industrial automation/mechanical equipmentair compression industry/refrigeration and air conditioning suitable for diameter ≥50mm pipeline.

Setting range: See the table below
Repeatability: 士2.5% total range
Wiring mode: terminal wiring

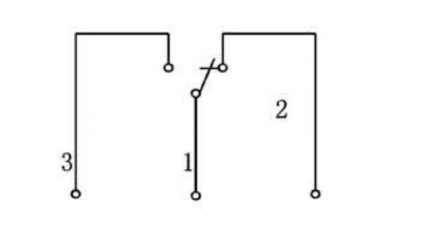

Output: Switch Normally On + Normally Closed (250VAC,3A)
Pressure: 16bar (brass), 40bar (stainless steel)
Average pressure loss: 0.08bar(at maximum flow)
environment temperature:-25...80°C
medium temperature: brass material 90°C, stainless steel material 180C
Protection grade: IP33
materials
Body: stainless steel
Process connection: brass/stainless steel
Connecting rod: brass/stainless steel
Flapper: brass/stainless steel

Piping
diameter		 weight
Kg		 Interface thread
          D		 catch
A/B		 pressure
Bar		 slow-
moving
L/min		 adjustable
range
L/min		 Model (material)
15  < 1.5kg R1/2 "taper thread A 16  2  3-11 SN42-01RTA（ brass ）
15  R1/2 "taper thread B 16  3  5-17 SN42-01RTB（ brass ）
15  R1/2 "taper thread A 16  2  3-11 SN42-01RGA（  stainless steel ）
15  R1/2 "taper thread B 16  3  5-17 SN42-01RGB（  stainless steel ）
20  R3/4”taper thread A 16  2  4.2--18 SN42-02RTA（ brass ）
20  R3/4”taper thread B 16  3  8.3--37 SN42-02RTB（ brass ）
20  R3/4”taper thread A 16  2  4.2--18 SN42-02RGA（ stainless steel ）
20  R3/4”taper thread B 16  3  8.3--37 SN42-02RGB（ stainless steel ）
25  R1”taper thread A 16  2  5.2--23 SN42-03RTA（ brass ）
25  R1taper thread” B 16  4  10--48 SN42-03RTB（ brass ）
25  R1”taper thread A 16  2  5.2--23 SN42-03RGA（ stainless steel ）
25  R1”taper thread B 16  4  10--48 SN42-03RGB（ stainless steel ）
32  R1 1/4”taper thread A 16  3  8.1--39 SN42-04RTA（ brass ）
32  R1 1/4”taper thread B 16  6  19-90 SN42-04RTB（ brass ）
32  R1 1/4”taper thread A 16  3  8.1--39 SN42-04RGA（  stainless steel ）
32  R1 1/4”taper thread B 16  6  19-90 SN42-04RGB（  stainless steel ）
40  R1 1/2”taper thread A 16  5  15--69 SN42-05RTA（ brass ）
40  R1 1/2”taper thread B 16  7  25--111 SN42-05RTB（ brass ）
40    R1 1/2”taper thread A 16  5  15--69 SN42-05RGA（  stainless steel ）
40    R1 1/2”taper thread B 16  7  25--111 SN42-05RGB（  stainless steel ）
  * Please indicate medium flow direction, medium type, pipe diameter and expected set value when ordering. We can complete the setting for you
  at the factory.。
  * For viscous media, please indicate viscosity, temperature and type of media.
  * For gaseous media, please indicate pressure (gauge/absolute pressure), temperature and medium type.
  * Optional flange, customized according to customer requirements.
  * The selection table is only available for parameter selection, and the corresponding code is delivered.
