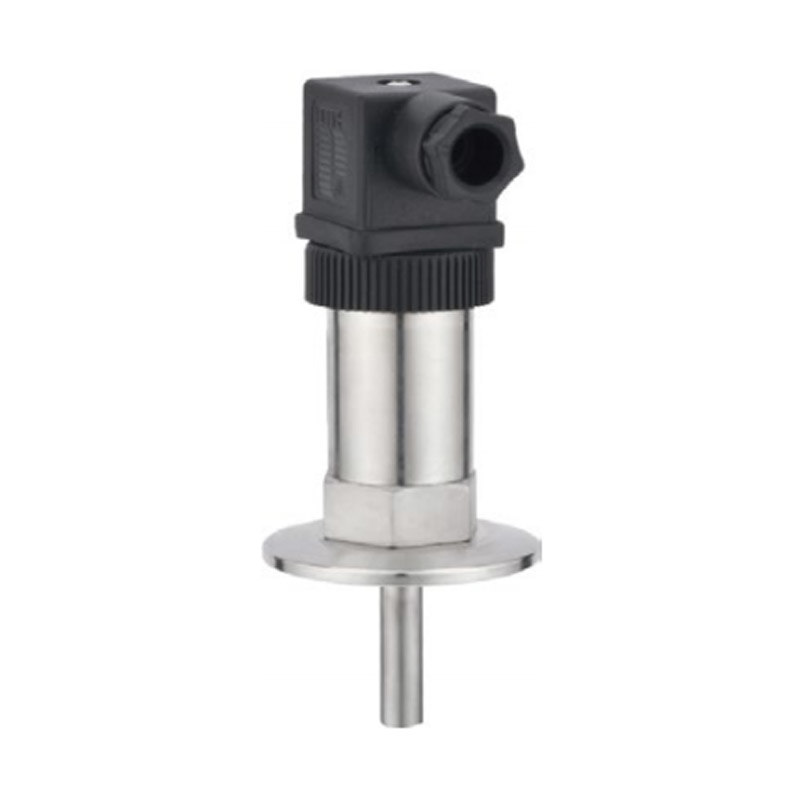

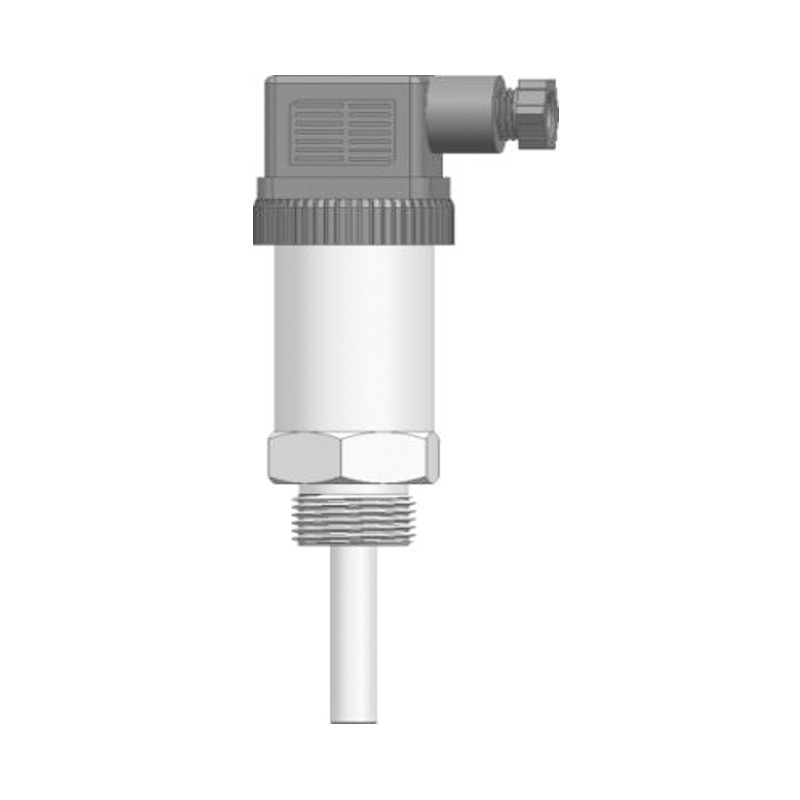

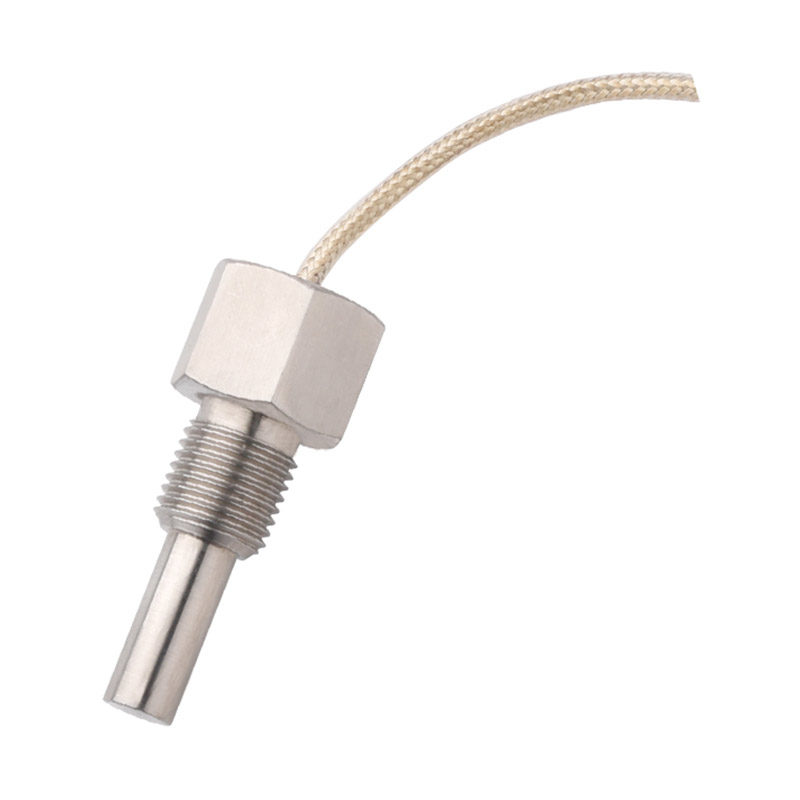

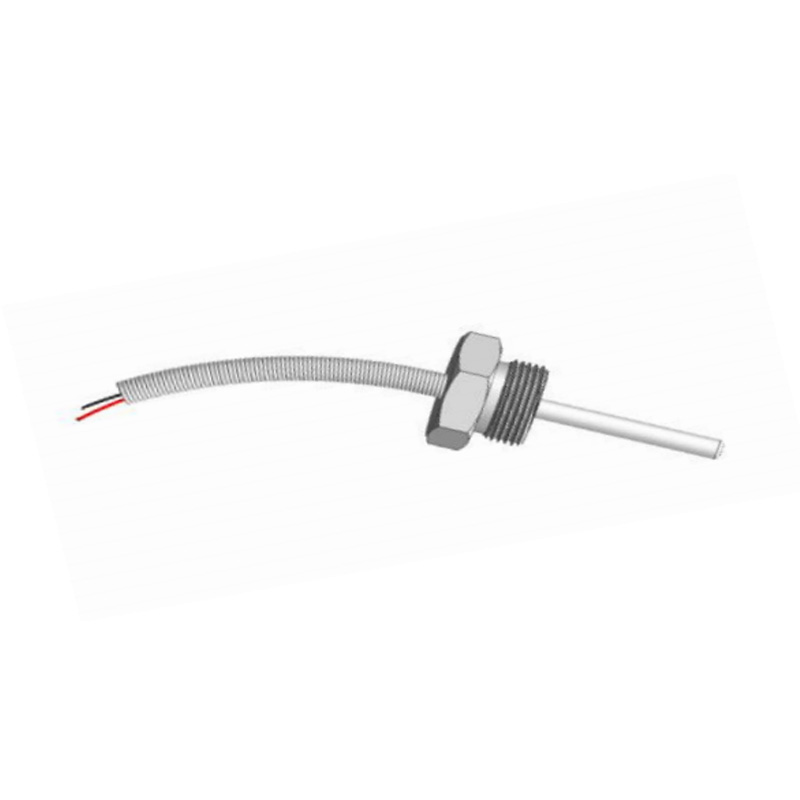

PT100 Temperature Sensor-T300

NEXT: Electronic digital temperature switch sensor-T85C

Product introduction

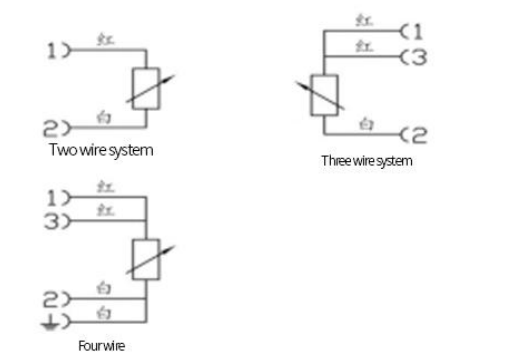

The T300 contains a PT100 probe, PT100 resistance will change with temperature, the T300 is available in two wire, three wire, four wire several specifications.
Simple installation, a variety of range optional, a variety of specifications probe optional, stainless steel housing, compact and firm structure. And can be equipped with field instrument and cabinet type control table.

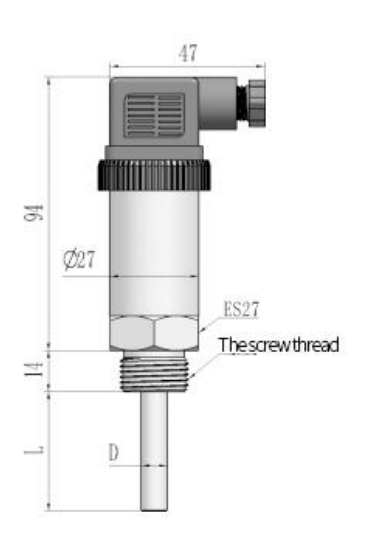

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table

It can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

- Measuring range: -50℃ ... 200℃ (user-defined)
- Linear degree: < 0.1%
- Accuracy: ±0.2K +0.2% full scale
- Resolution: 0.1K
- Pressure: Φ6 type: probe 400bar, Φ8 type: probe 100bar
- Temperature effect: 0.1K/10K
- Response time: 2.3 seconds
- Working voltage: 12... 30Vdc
- Electrical protection: anti-pole, overload protection
- Sensor: PT100
- Ambient temperature: -25... 80 ℃
- Protection grade: IP65
- Shell material: 304 stainless steel
- Contact part material: 304 stainless steel
- Electrical connection: Hersman /M12*1 connector

T300-	1	A	M	D1	K	G4	B	specification
T300-								T300 series PT100 temperature sensor
	1							Type A
	2							Type B
		A						Probe length L25mm(without thread)
		B						Probe length L50mm(without thread)
		C						Probe length Lis 75mm(without thread)
		D						Probe length L is 100mm(without thread)
		L..						Custom probe length L=mm (without thread)
			H					RA
				D1				The probe diameter is中6
				D2				The probe diameter is中8
				D12				Custom probe,for example diameter φ12
					K			Jacket connection (optional)
						G4		Threaded interface G1/4
						G2		Threaded interface G1/2
						M2		Threaded interface M20*1.5
								Custom thread
							A	Connector type M12*1(standard with
							B	Hersman joint
							C	Direct line
*The selection table is only available for parameter selection,and the corresponding code is delivered.
