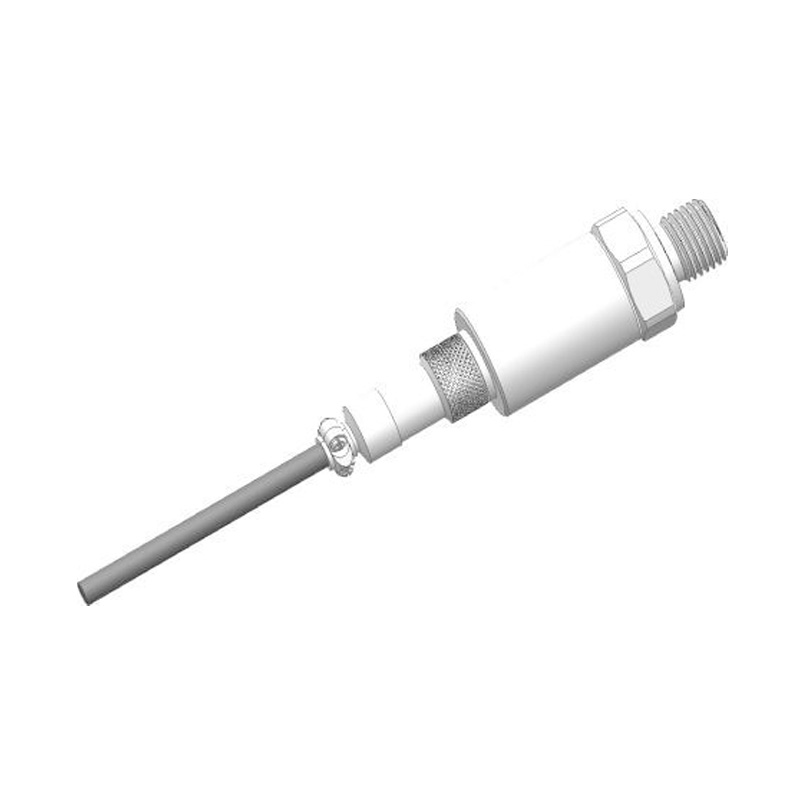

Product 3D Image
Get coupons
Product introduction

Compact ceramic piezoresistive pressure transmitter, wide choice, compact structure, suitable for harsh environment, high reliability. Wide range (0... 600bar), which can be used to measure gauge pressure and absolute pressure. Suitable for mechanical equipment, hydraulic pneumatic device, locomotive, pressure control.

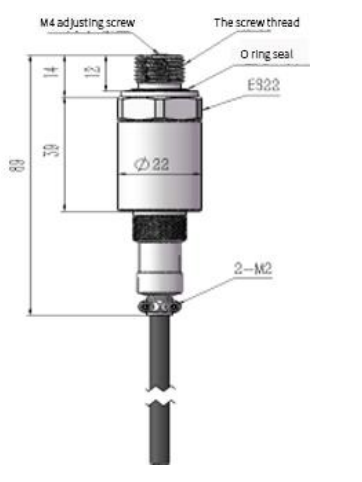

Technical Specification Dimension Figure Selection Table

- Measurement range: customized according to user requirements
- Overload range: 1.5 times of measuring range
- Precision: 0.2%, 0.5%
- linearity: ±0.2%
- Repeatability: ≤ ± 0.1fs
- Stability: no more than the accuracy of the transmitter within 1 year
- Temperature effect: < ±0.02%FS/K
- Response time: < 1ms(10... 90%FS)
- Power supply: 10... 30VDC(3-wire 14... 30V)
- load: ≥10KΩ(0...10V), ≥5KΩ(1...5V) ≤( UB-10)V,0.02A(4...20mA)
- Power consumption: Signal current (2-wire), 8mA(3-wire)
- Electrical protection: overload/reverse phase protection
- Ambient temperature: -30... 85 ℃
- medium temperature: -25... 80 ℃
- Storage temperature: -30... 100 ℃
- Protectiongrade: IP65
- Shell material: 304 stainless steel
- Liquid material: 304 stainless steel
- Sealing: fluorinerubber
- Weight: 0.10kg

PN501- GB001 C G4 H C B specification
PN501-               PN501 series ceramic piezoresistive
  GP001             range:0--10Kpa
  GB001             range:0--1bar
  GB010             range:0--10bar
  GP-100..0             Range: according to the actual range
customized negative pressure selection,
    B           Accuracy grade: 0.2
    C           Accuracy grade: 0.5
      N4         Interface thread: NPT1/4
      N2         Interface thread: NPT1/2
      G4         Interface thread: G1/4
      G2         Interface thread: G1/2
      M2         Interface thread: M20*1.5
                Custom thread
        H       external thread
        K       internal thread
              4-20 ma output
              1-5 v output
              0 to 10 v output
            C   M12 x 1 connector
              B No damper, no heat sink
              Z Damper (optional)
              S Heat sink (optional)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
