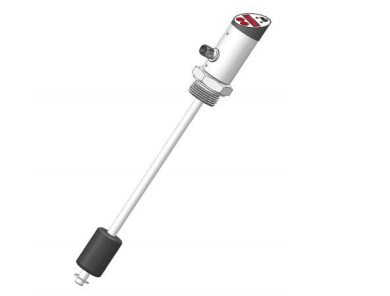

Product 3D Image
Get coupons
Product introduction

LF600 series adopts magnetic induction technology sensor for liquid level measurement, the signal is processed by the rear processing circuit and converted into standard industrial electrical signal output and display.
Float ball is in the closed non-magnetic stainless steel tube equipped with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.
Full metal housing design
Highlight LED digital display, so that this series of products can be used in various industrial occasions.
Double key design and user-friendly menu make the product easier to use.
Multiple connection modes can fully meet various specific installation requirements.
The display head can rotate 330° to ensure the best viewing Angle under different installation modes.

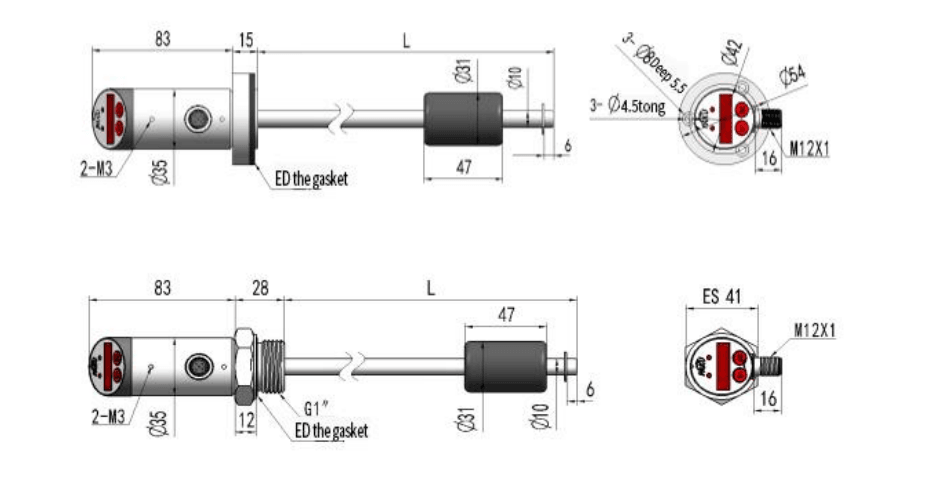

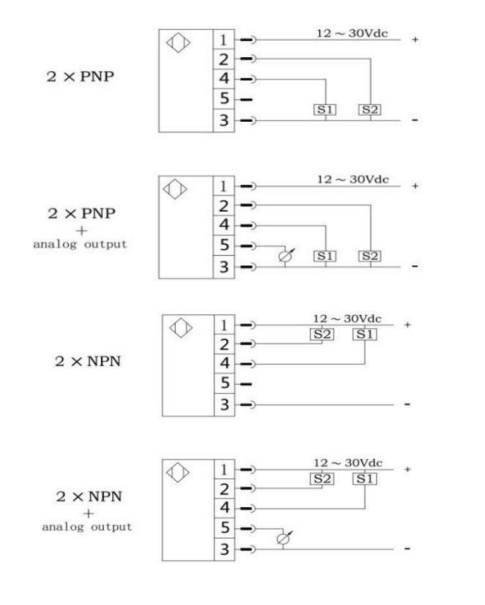

Application Technical Specification Wiring Diagram Dimension Figure Selection Table Thread Model

Food/Pharmaceutical
Power plant
Petrifaction
Pulp/paper
Water treatment
Boiler

Measurement range: user-defined
Measurement medium: corrosive compatible with 304 stainless steel liquid
Pressure: 50bar
Medium density: ≥0.7g/cm³
Power supply voltage: 12... 30Vdc
No-load current consumption: maximum 30mA, 24VDC power supply
switched output:Output type: PNP, NPN optional normally
open
normally closed can be set
S1, S2 output current: <500mA
Response time <10ms
Switch accuracy: ≤ ±0.5% range
Current type analog output: ≤ ±0.5% range
Output type: 4... Can be set to 20 ma
load RA: 0.5 KO hm or less
Linearity: ≤ 1.5% range
Wiring protection: reverse phase, overload, short circuit protection
display:Design: red 4-bit 8mm high brightness LED Display range: 999... 9999
Accuracy: ≤ ±0.5% range
Stability (annual drift) : ≤ ±0.3% range
temperature:medium temperature:-20...80℃
environment temperature:-20...80℃
storage temperature:-30...80℃
materials :Shell of the watch head: engineering plastic Shell: 304 stainless steel
Medium contact part: stainless steel 304
Float ball: 304 stainless steel or NBR material (can be customized)
Protection grade: IP67
Outgoing way: M12X1 connector

LF600- A P A S L B specification
LF600-               LF600 series electronic level switching
sensor
  A             2 switches output
  B             2 switching quantities +1 analog quantities
4-20mA output
  C             2 switching quantities +1 analog quantities
1-5V output
    P           PNPoutput
    N           NPNoutput
      A         Thread connection with external thread
      B         flanged joint
      C         Sanitary chuck connection
              Interface thread: G1
                Custom thread
          S     M12*1 connector (standard with 2 meters
wire)
            L   Measuring range: L= mm (unit)
              B Float material: NBR
              X Float material: 304 stainless steel
              S Special customization (corrosion
resistance)
* The selection table is only available for parameter selection, and the corresponding code is delivered.

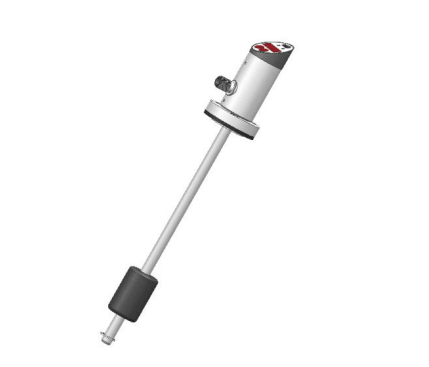

The Flange Type
