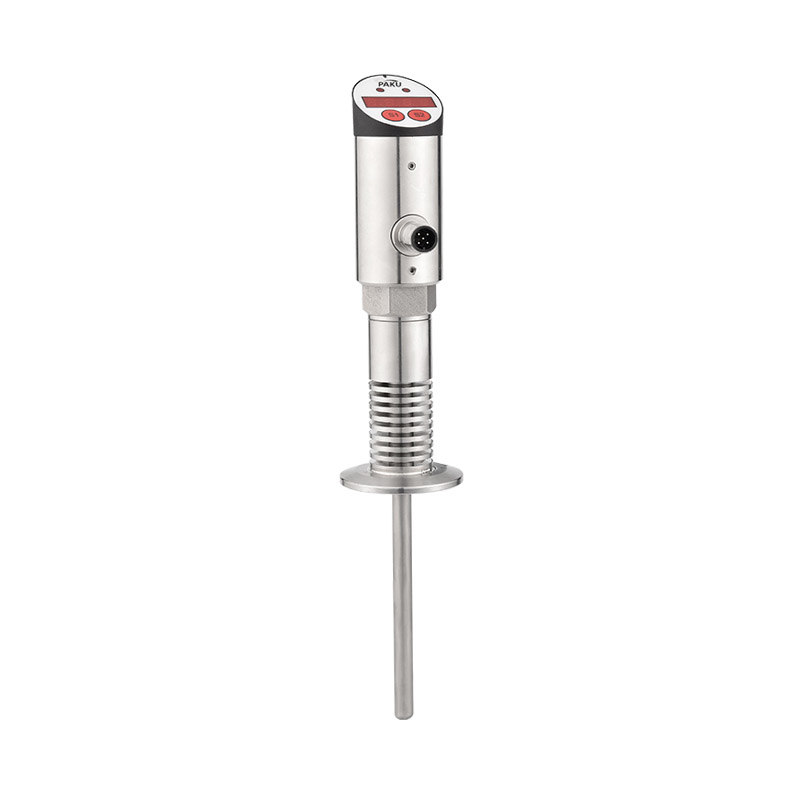

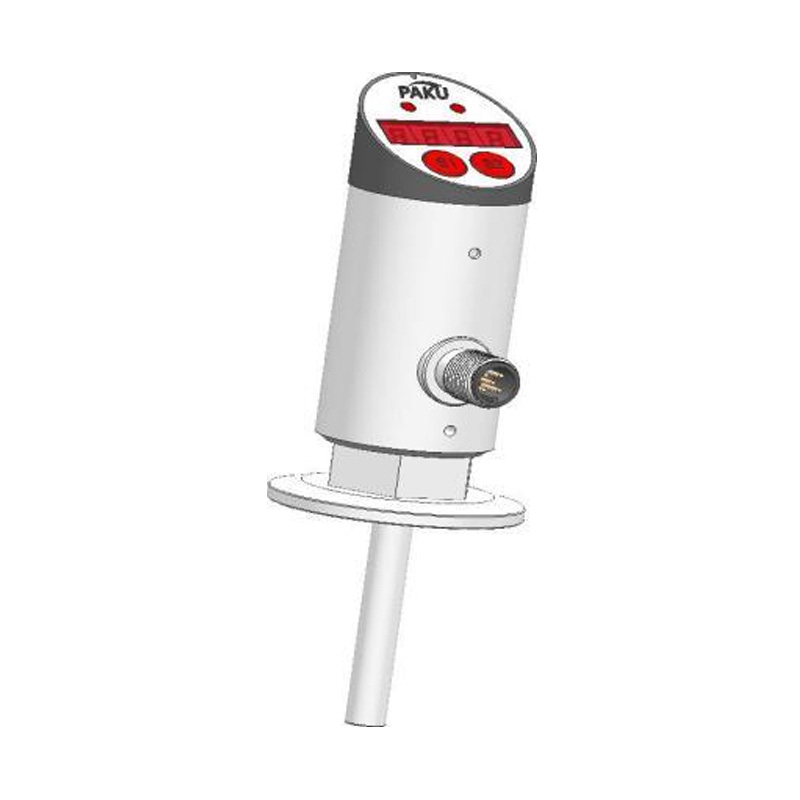

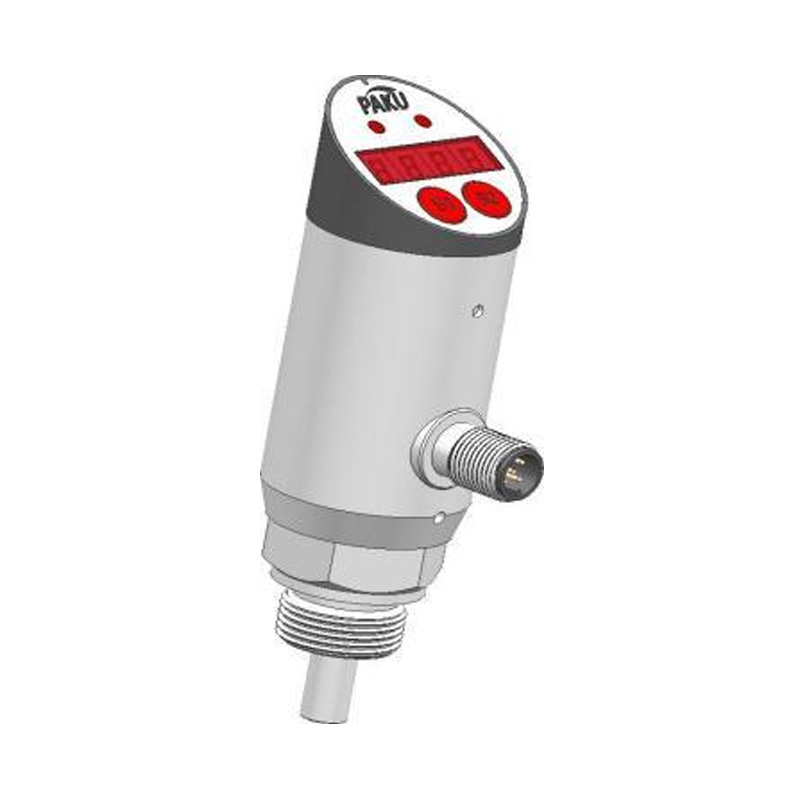

Product 3D Image
Get coupons
Product introduction

Adopting high precision sensor for temperature measurement, the signal is processed by the rear processing circuit and converted into standard industrial electrical signal output and display. Designed with a full metal casing and a bright LED digital display, the T850 series can be used in a variety of industrial applications. The two-button design and menu make the product easy to use. A variety of connection options are available to meet specific installation requirements. The 330° swivelling display head ensures optimum viewing angles in different installations.
-Economical
-4-digit LED display
-Full metal housing
-PNP/NPN selectable
-4--20mA
-Rotatable display head

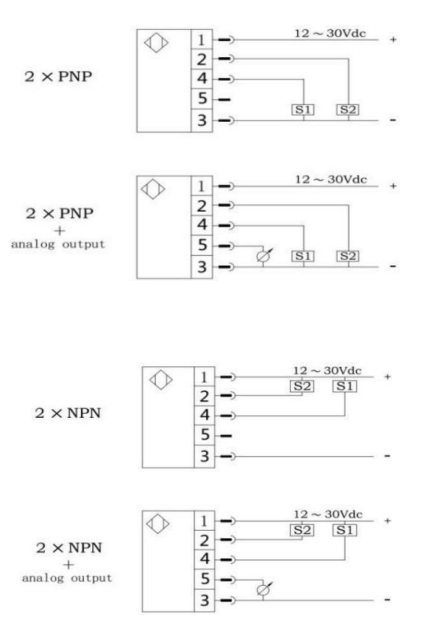

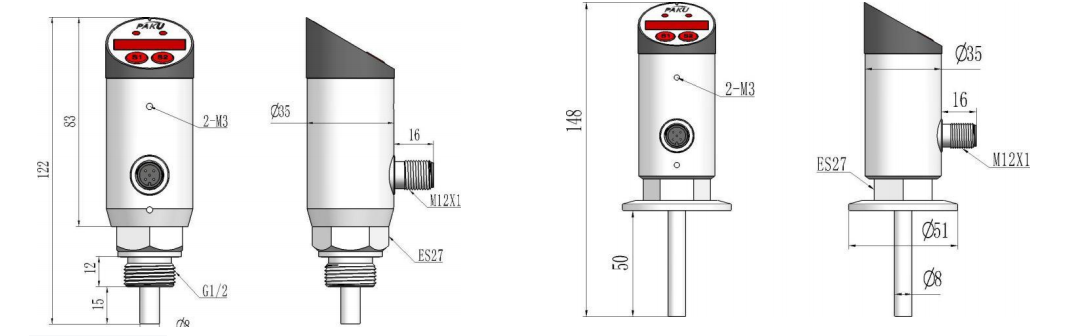

Technical Specification Wiring Diagram Dimension Figure Selection Table

- Measuring range: -50.. 200 ℃
- Power supply voltage: 12... 30Vdc
- No-load current consumption: maximum 30mA, 24VDC power supply
- switched output:Output type: PNP, NPN optional normally open normally closed can be set
S1, S2 output current: <500mA
- Response time <10ms
- Switch accuracy: ≤ ±0.5% range
- Current type analog output: ≤ ±0.5% range
- Output type: 4... Can be set to 20 ma
- load RA: 0.5 KOhm or less
- Linearity: ≤ 0.5% range
- Wiring protection: reverse phase, overload, short circuit protection
- display:
Design: red 4-bit 8mm high brightness LED
Display range: 999... 9999
- Accuracy: ≤ ±0.5% range
- Stability (annual drift) : ≤ ±0.3% range
- temperature:
Medium temperature: -50.. 200 ℃
Ambient temperature: -20... 80 ℃
Storage temperature: -30... 80 ℃
- materials :Shell of the watch head: engineering plastic
Shell: 304 stainless steel
Medium contact part: stainless steel 304
- Protection grade: IP67
- Outgoing way: M12X1 connector

T850- A P A A G4 H 050 S specification
T850-                 T850 series digital display intelligent
temperature switch sensor
  A               2 switches output
  B               2 switching quantities +1 analog
  C               2 switching quantities +1 analog
    P             PNPoutput
    N             NPNoutput
      A           Range 0... 100 ℃
      B           Range 0... 150 ℃
      C           Range - 50... 200 ℃
      D..           Customize the range, e.g. -20...
100 ℃
        A         threaded connection
        B         Chuck connection
        D         flanged joint
          G4       Interface thread: G1/4
          G2       Interface thread: G1/2
          N4       Interface thread: NPT1/4
          N2       Interface thread: NPT1/2
          K5       Chuck (50.5mm)
          25        DN25 flange, model selection: 25
                  Custom thread
            H     external thread
              L...   Customized probe rod length unit mm
(without thread)
              025    Probe rod length unit mm (without
              050    Probe rod length unit mm (without
              075    Probe rod length unit mm (without
              100    Probe rod length unit mm (without
                S M12*1 connector (standard with 2
meters wire)
* The selection table is only available for parameter selection, and the corresponding code is delivered
