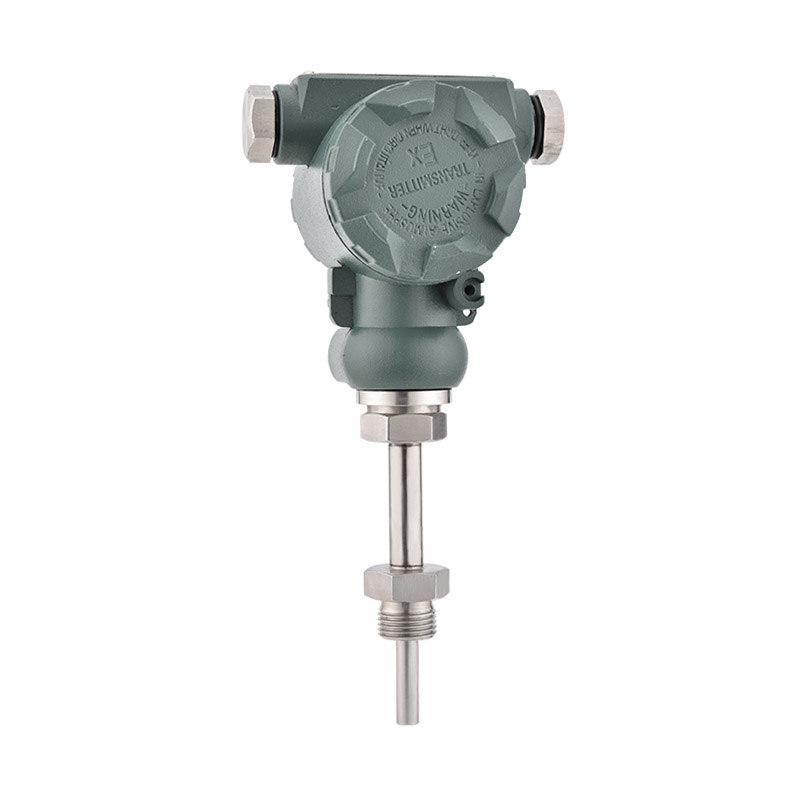

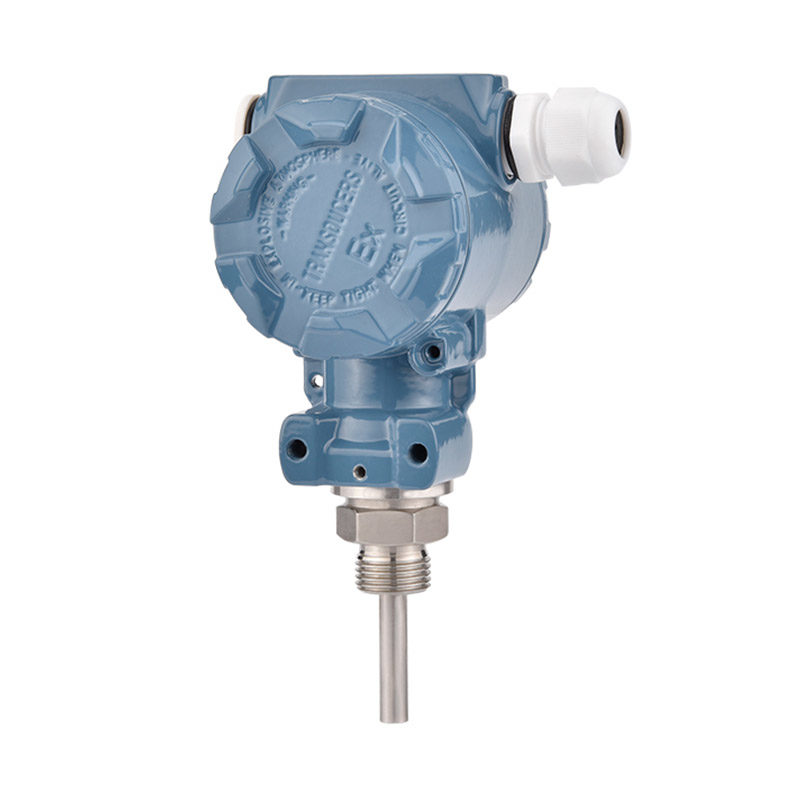

Explosion-proof general purpose temperature transmitter-T550

Product introduction

The T550 is a temperature transmitter with a wide measuring range, using a thermocouple or PT10 RTD for temperature measurement, the signal is converted to a standard industrial electrical output by the rear processing circuit. The all-metal housing design allows the series to be used in a variety of industrial applications. HART output is optional. Users can choose to add LED or LCD digital display according to requirements.

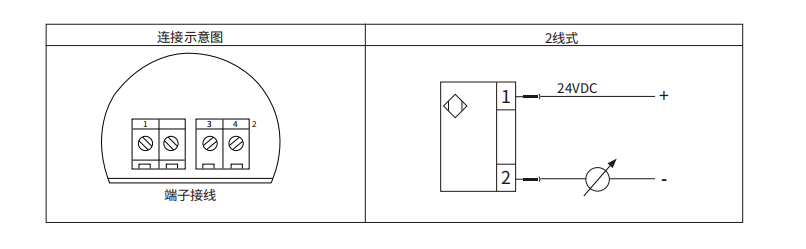

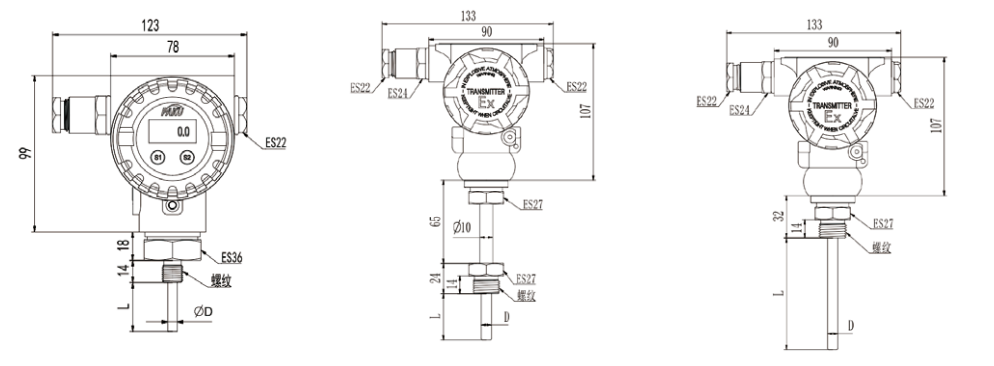

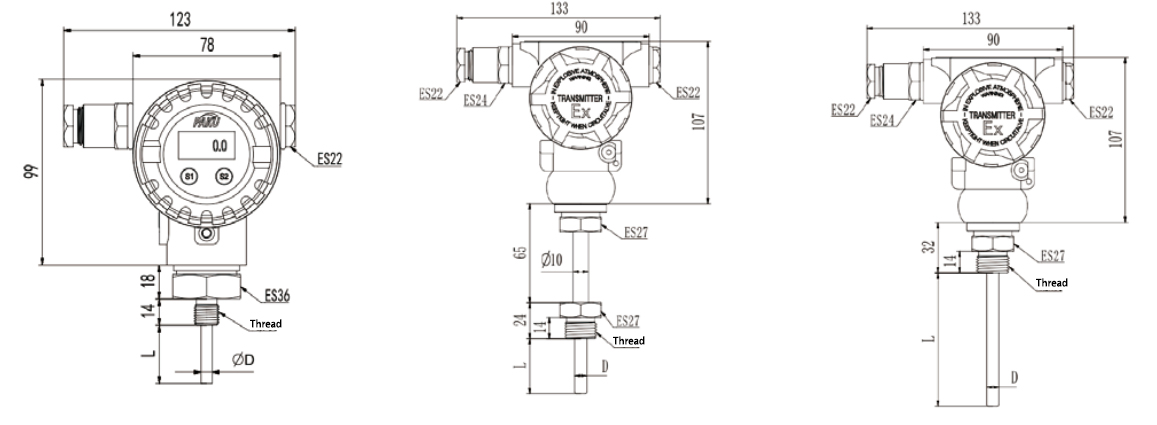

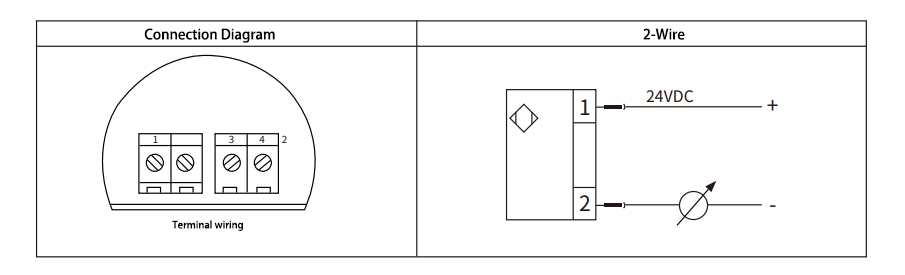

Product Applications Technical Parameters Wiring Diagram Dimension Drawing Selection Table

-Circulating water/cooling water
-Iron and steel industry
-Oil and gas industry
-Machine manufacturing
-Water treatment
-Glass industry
-General purpose products
-Measuring range from -200.... .1800°C, user definable
-4....20mA output / PT100 output
-HART protocol available
-Multiple process connections available
4-digit LED/LCD digital display can be added.
-Full metal enclosure

-Supply voltage:12.... .30Vdc
-Measuring range:-200.... .1800℃(user can specify the range)
-Input signal: thermocouple: B, R, S, N, K, E, J, T.
RTD: PT100
-Output signal: 4-20mA, 4-20mA+HART
-Accuracy: 0.2%FS, 0.5%FS
-Resolution: 0.1K
-Display: four-bit LCD display
-Response time: t50,2.3 seconds t90,5.4 seconds
-Analogue load resistance: 500Ω
-Electrical protection: reverse polarity, overload protection
-Ambient temperature: -25...70°C
-Protection level: IP67
-Shell material: contact liquid part: stainless steel
Electrical connection: terminal wiring

T550- F... T     L G4H D1 /100 T Details
T550-                 T550 Series General Purpose Temperature Transmitter
                No display
                Local display
    F. ..             Customised range: -200.... .1800℃
      P           PT100 resistance output
      P1           Armoured PT100 resistance output
                4-20mA analogue output
      B           Thermocouple :PtRh30-PtRh6( 0-1600℃ )
      R           Thermocouple :PtRh13-Pt( 0-1300℃ )
      S           Thermocouple :PtRh10-Pt ( 0-1300℃ )
      N           Thermocouple :NiCrSi-NiSi( 0-1000℃ )
      K           Thermocouple :NiCr-NiSi( 0- 900℃ )
      E           Thermocouple: Nichrome-Constantan (0-600°C )
      J           Thermocouple: Iron-Constantan (0-500°C )
      T           Thermocouple: Copper-Constantan (0-350°C )
      H           HART Output
             L         Neck Tube Length 50mm (not optional up to 200°C)
          G4 H       Threaded Connection G1/4
          G2 H       Threaded Connection G1/2
          K5H       Sanitary Chuck 50.5
          M2H       Threaded Connection M20* 1.5
          D...       Flange Connection DN25 ,option:  D25
                  Customised threads
          K       movable ferrule threaded connection (optional)
            D1     probe diameter Ф6
            D2     probe diameter Ф8
            D12     customised probe, e.g. diameter φ12
              /L.. .   customised probe length L= mm (excluding threads)
              /100   probe length L is 100mm (excluding threads)
                T casing (if casing is selected, the selected threads and length of the rod defaults to casing threads)
* The selection table is for parameter selection only, and will be shipped with the corresponding code of the parameter.
