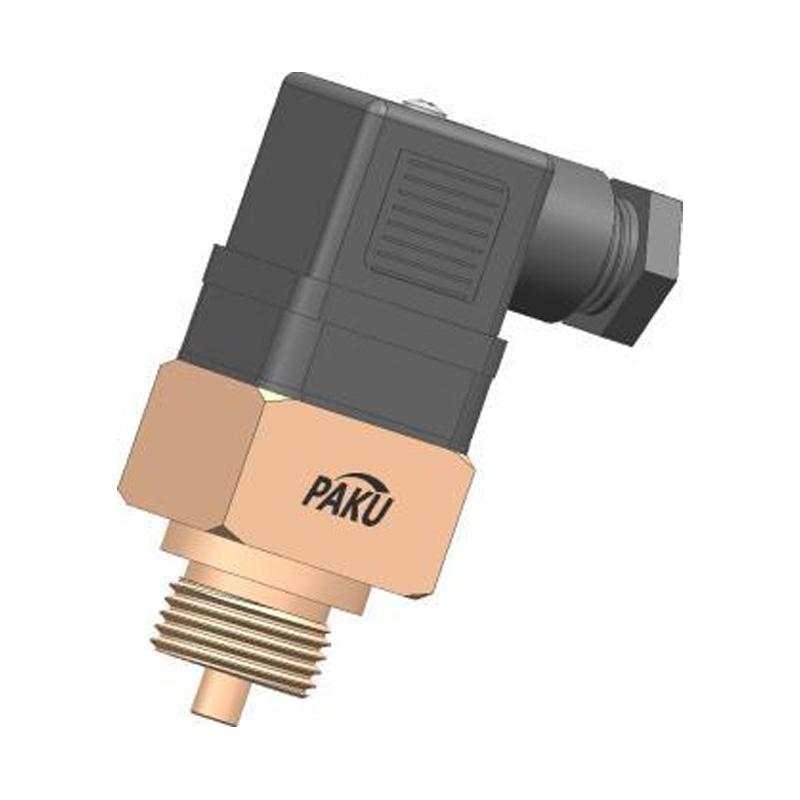

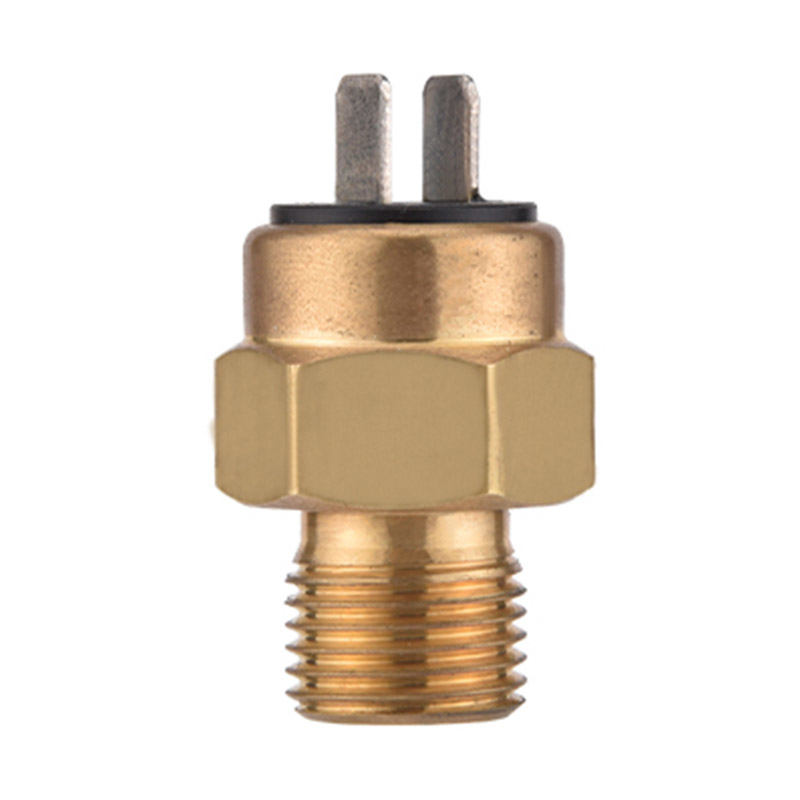

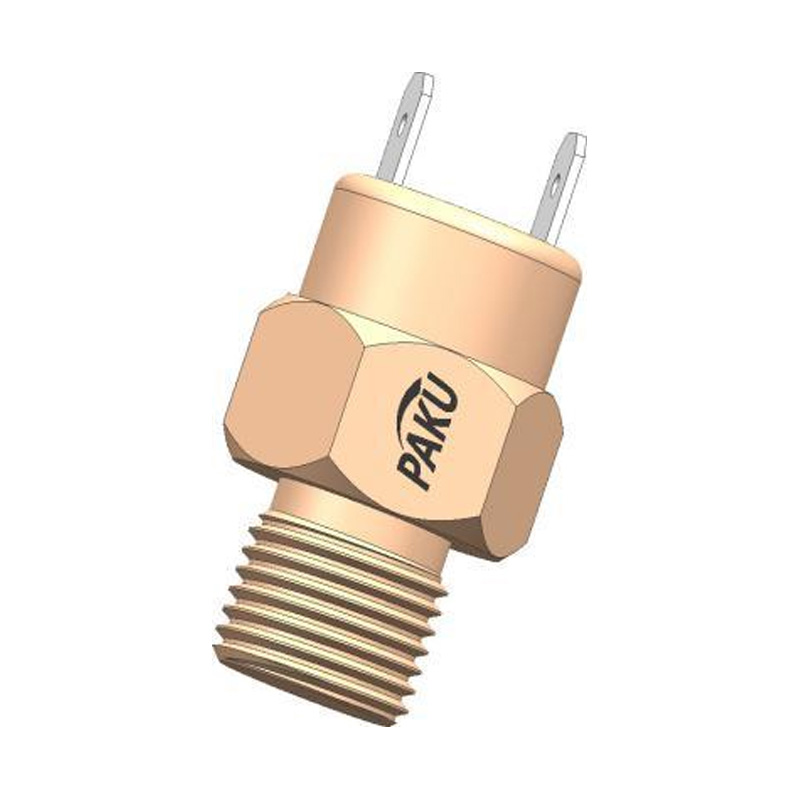

Mechanical temperature switch-T200

Product introduction

T200 series adopts the principle of bimetallic sheet, when the temperature reaches the set value, a section of bimetallic sheet made into an annular bending shape is heated and expanded to trigger the built-in device, switch action.
T200 and medium contact parts are made of yellow copper material, interface screw G1/4,G3/8,M22× 1.5 three options, temperature range of 30℃ ... 120 ℃ .

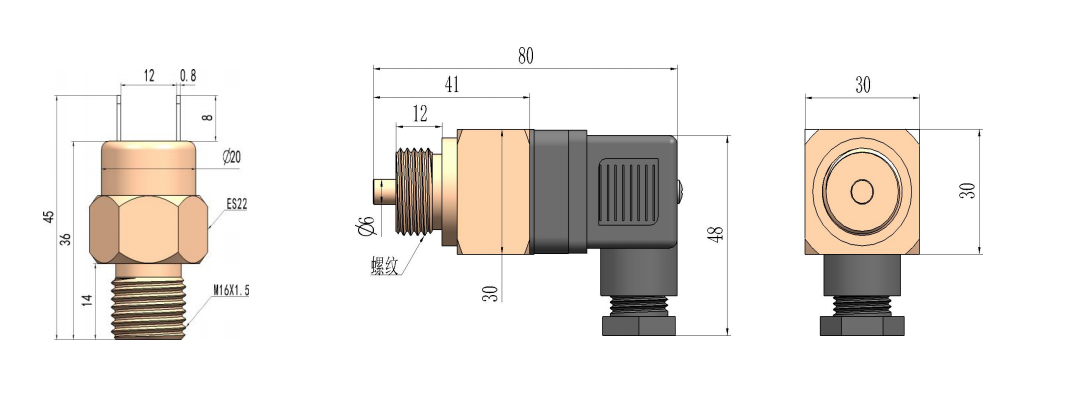

Product Application Technical Specification Dimension Figure Wiring Diagram Selection Table

T200 series temperature switch can meet the different requirements of hydraulic, lubricating and transmission series for temperature control, used to detect whether the temperature exceeds the maximum or minimum limit.

- Measuring range: fixed switch point 30℃ ... 120℃ (see the table below)
- Maximum pressure: 100bar
- medium temperature: 130℃ maximum
- Output: normally open/normally closed optional contacts silver plated
- Contact capacity: capacity 16A-220VAC
- Fixed hysteresis: Max. 15℃ (BBB 0 80℃)
- Protection grade: IP65
- Wiring mode: terminal wiring
- Contact part material: brass
- Shell material: black NBR

T200- A 030 G4 H T N - specification
T200-               T200 series mechanical temperature
switch
  A             A
  B             B
    030            30℃ ±5℃
    040            40℃ ±5℃
    050            50℃ ±5℃
    060            60℃ ±5℃
    070            70℃ ±5℃
    080            80℃ ±5℃
    090            90℃ ±5℃
    100            100℃ ±5℃
    110            110℃ ±5℃
    120            120℃ ±5℃
                Special custom temperature
      G4         Interface thread: G1/4
      G8         Interface thread: G3/8
      G2         Interface thread: G1/2
      M4         Interface thread: M14*1.5
      M2         Interface thread: M22*1.5
                Custom threads, such as NPT1/2, type
N12
        H       external thread
          T     Yellow brass
          X     stainless steel materials

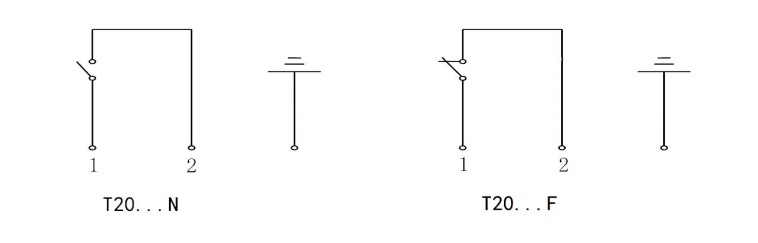

            N   normally open
            F   normal close
                Length of special rod mm (including
thread)
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the code.
