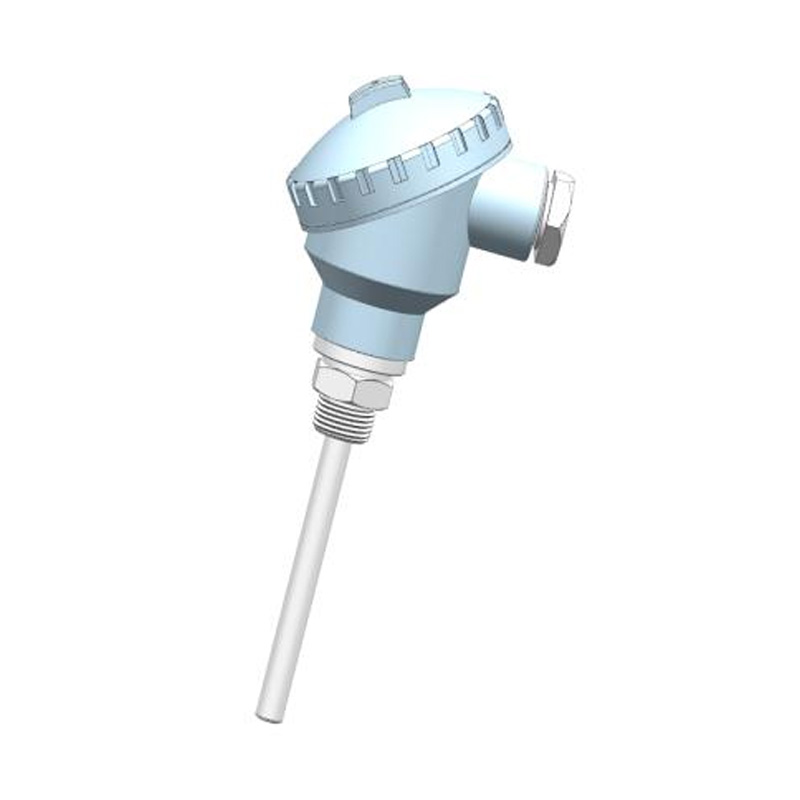

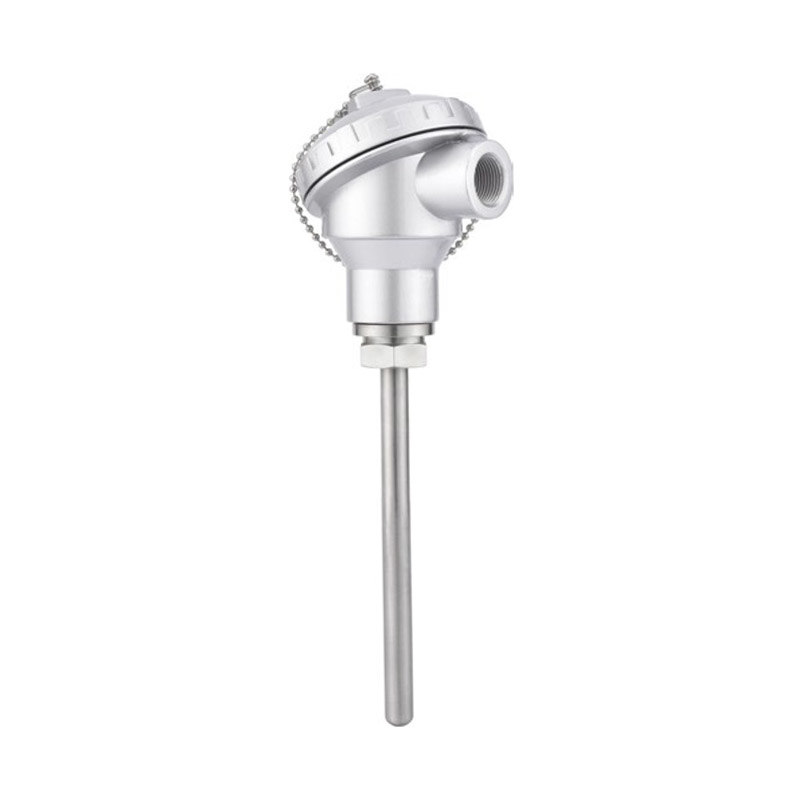

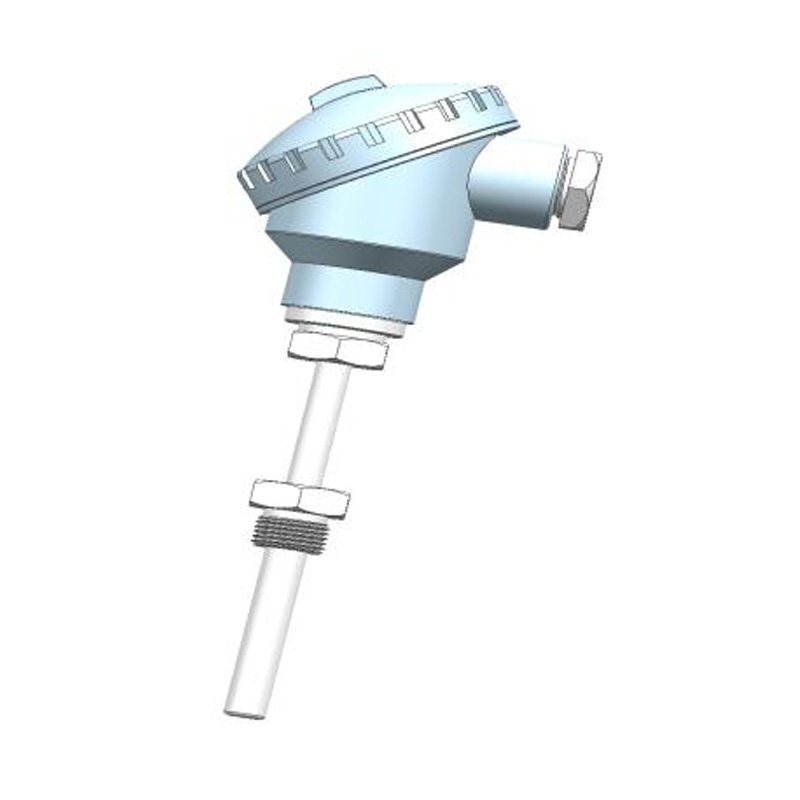

Thermocouple Universal Temperature Transmitter-T55D

Product introduction

T55D is a temperature transmitter with a wide measurement range. The temperature is measured by thermocouple or PT100 thermal resistor. The signal is processed by the rear processing circuit and converted into standard industrial electrical signal output. The blank metal housing design makes this series of products can be used in a variety of industrial occasions. HART output is optional. Electronic head part can be rotated, users can adjust the direction of cable outlet according to requirements.

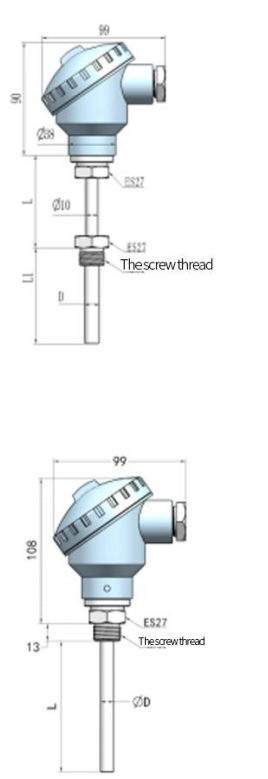

Technical Specification Wiring Diagram Dimension Figure Selection Table

- Power supply voltage :10... 30Vdc
- Current consumption: Consistent with the output signal current (4...20 ma)
- 2-wire current type analog output:
Output type :2 wire 4... 20mA
Load Ra (Ohm) : Ra ≤(US-10)V/0.02A
Linearity: ≤ ±0.5% range
Sensor :PT100Class A (PT1000 can be customized)
- Accuracy: ≤ ±0.2% range
- temperature:
Medium temperature :-200... 1800 ° C (within this range, as defined
by the user)
Ambient temperature :-20... 80 ℃
Storage temperature :-30... 100 ℃
- materials:Shell: die-cast aluminum
Medium contact part: stainless steel 304
- Protection grade :IP65
- Outgoing way: terminal wiring

T55D- F... T L G4H     D1 /100 specification
T55D-               T55D series universal temperature
  F...             Customized range: -200... 1800 ℃
    P           PT100 resistance output
    P1           Armoured type PT100 resistance output
    B           Thermocouple: platinum rhodium 30-
platinum rhodium 6 (0-1600℃)
    R           Thermocouple: platinum rhodium
13-platinum (0-1300℃)
    S           Thermocouple: Platinum-rhodium 10-
    N           Thermocouple: Ni-Cr-Si - Ni-Si (0-1000℃)
    K           Thermocouple: Ni-Cr - Ni-Si (0-900℃)
    E           Thermocouple: Ni-Cr - Constantan (0-
    J           Thermocouple: Iron - Constantan (0-500℃)
    T           Thermocouple: copper-constantan (0-
              4-20mA analog output
        L       The length of the neck tube is 50mm
        K       Threaded connection with movable sleeve
          G4H     Male thread connection G1/4
          G2H     Male thread connection G1/2
          K5H     External health chuck 50.5
          M2H     Threaded interface M20*1.5
          D...     Flange  connection,  DN25,  Type  selection:
                Custom thread
            D1   The probe diameter is Ф6
            D2   The probe diameter is Ф8
            D12   Custom probe  for example diameter Φ 12
              /L... Custom probe length L= mm (without thread)
              /100 Probe length L is 100mm (without thread)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
