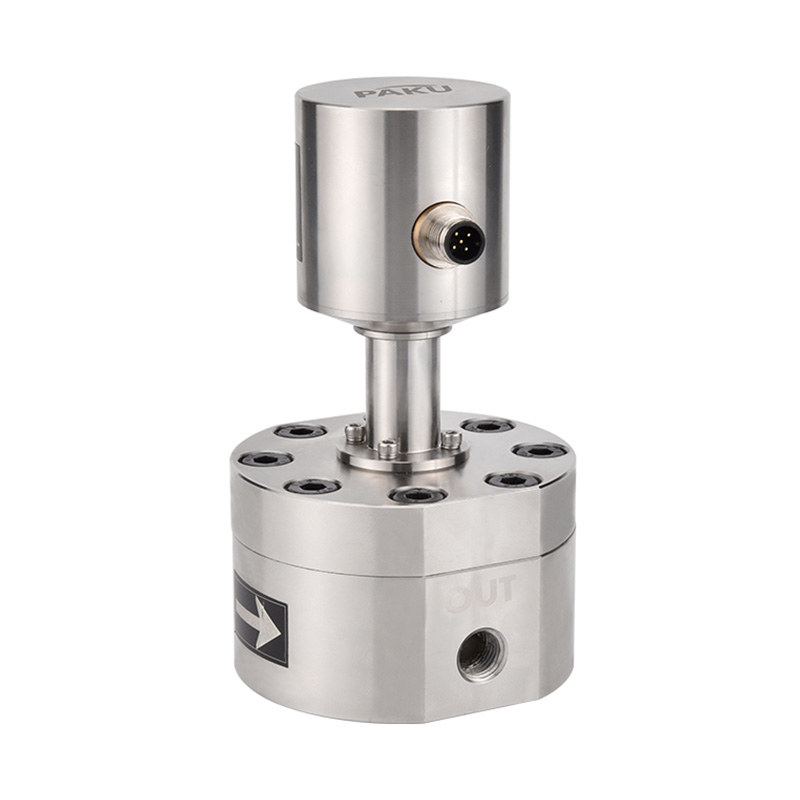

Micro oval gear flow sensor-SN54

Product introduction

SN54 gear flow sensor built-in double elliptic gear operation, through the high-precision gear volume calculation of the media through the volume, to achieve the measurement of micro-fluid media. It is a new type of volumetric flow sensor. It is used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in pipelines.
-Dual analogue switching outputs
-PNP/NPN selectable.
-LCD liquid crystal display
-Highly accurate monitoring
-Precise quantitative measurement
-Wide range of media applications
-Unaffected by medium pulsation

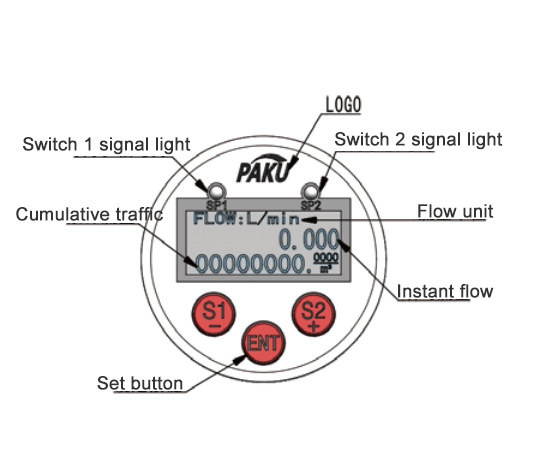

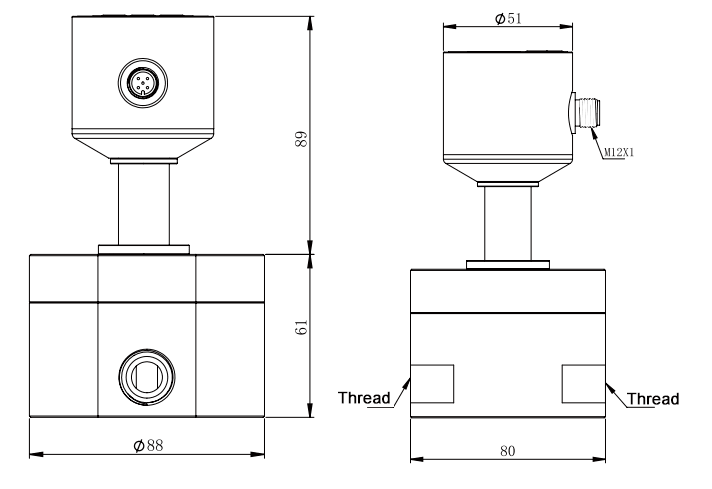

Product Applications Technical Parameters Wiring Diagram Dimension Drawing Panel Schematic Selection Table

Widely used in a variety of industries for low-flow accurate measurement, applicable media: additive fuels, flotation tanks for water treatment, corrosion inhibitors, catalysts, emulsifiers, oils, greases, spices, adhesives, solvents, inks and pesticides, and other parts of high-viscosity media. Application industries include automotive, aviation, mining, electric power, chemical, pharmaceutical, food, paint, petroleum, environmental protection, printing and other various industries.
-Stainless steel housing/aluminium housing available.
-Digital signal control transmission

Measuring range See parameter table for details
Output Signal 4-20mA/impulse
Measurement accuracy 0.5% FS
Repeatability 0.1% FS
Power supply 24Vdc
Medium temperature -30...80℃(High temperature customisation 150℃)
Material pressure resistance Aluminium: Standard pressure 100bar
Stainless steel: standard pressure 200bar
Stainless steel: customised pressure resistance 420bar

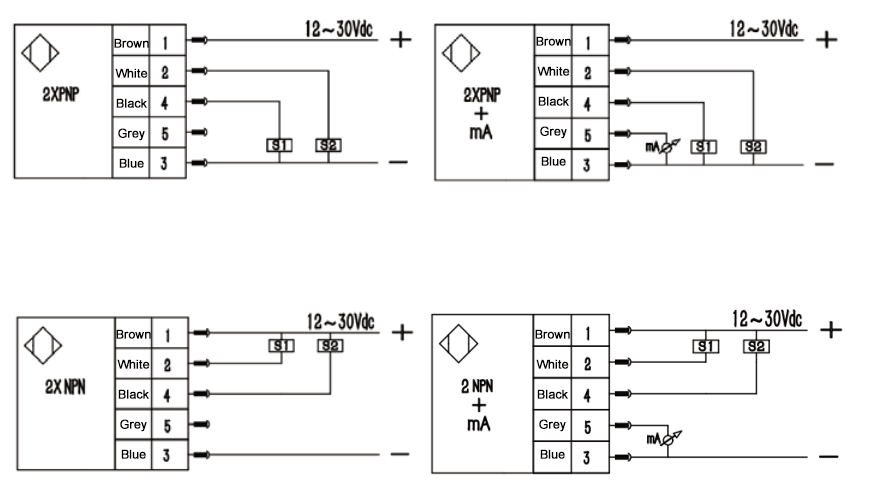

Needle Cables Signal
1 Brown Power supply
2 White Switch 2
3 Blue GND
4 Black Switch 1
5 Grey mA/Pulse P

SN54- D X B Ulse Coefficient
ml/P
Detailed description
SN54-           SN54 series micro elliptical gear flow sensor
  D       0.5  Range : 0.02 - 2L/min (corresponds to: female G1/8, M6)
  E       2.5  Range : 0.1-10L/min (corresponds to: female G1/4, M10)
  F       8.5  Range : 0.3-30L/min (corresponds to: female G1/2, M12)
  F1       14.3  Range : 0.6-60L/min (corresponds to: female G3/4, M20)
  G       23  Measuring range: 0.5-100L/min (corresponds to: female thread G1, M25)
  H         Special design
          2 switching + 1 analogue 4-20mA outputs, local display
      X     Stainless steel housing
      L     Aluminium housing
        B   Standard version
        T   High-temperature customisation
        P   High Pressure
*Note: The pulse coefficient of the flowmeter is marked on the flowmeter, generally XX ml/pulse.
* Selection table is for parameter selection only, with parameter corresponding to the code factory.
