Get couponsElectronic flow switch-SN10
Product introduction
Based on the thermal principle, the sealed probe contains two resistors, one of which is heated to act as a detection resistor and the other unheated to act as a reference resistor. When the medium flows, the heat on the heated resistor is carried away and the resistance value is altered, with the difference between the two resistances being used as a basis for determining the flow rate. No moving parts, maintenance-free, easy to install, one model for a variety of pipe diameter requirements, switching volume continuously adjustable, very low pressure loss, compact structure, LED display flow trend and switching status.
Product Applicatio

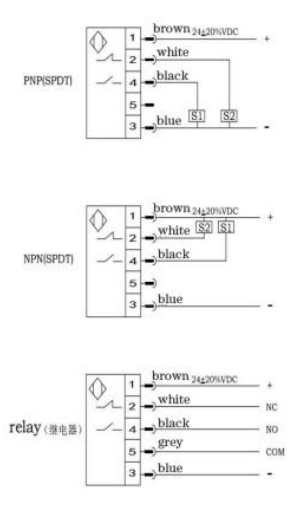

Wiring Diagram
Technical Specification

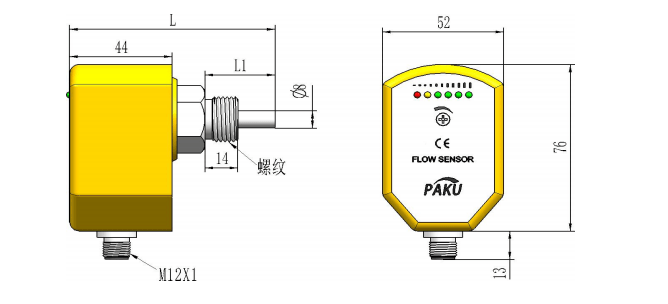

Dimension Figure

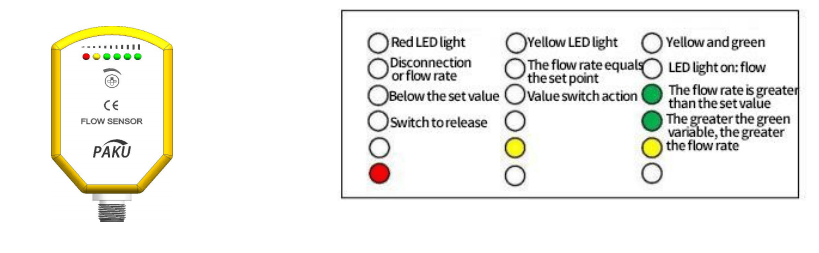

Lde Function And Setting (On/Off Type)
Installation Instructions
Selection Table
Pneumatic and hydraulic dual purpose, low flow rate alarm, can be used for pneumatic and hydraulic systems, can be used for circulating water, cutting fluid and lubricating oil cut-off detection, and pump idling protection.
setting range：1...150cm/s(water ）
3...300cm/s( oil ）
20...2000cm/s(air ）
Signal output: PNP,NPN, relay normally open + normallyclosed (SPDT)
Power supply: 24V±20%DC or 230V ± 15%AC
Switch on current: maximum 400mA(PNP or NPN type)
Maximum 1A@48V (relay type)
No-load current: Max. 80mA
Flow indicator: LED row (6)
setting mode: potentiometer setting
Voltage range: 100bar
Temperature gradient: ≤4°C/S
Response time: 1-13s, typical 2s
initialization time: about 8s"
Electrical protection: reverse phase, short circuit, overloa protection
Protection grade: IP67
Medium temperature: -20-80°C
Ambient temperature: -20-80°C
Storage temperature: -20-100°C"
Wiring mode: M12 connector/optional with 2 meters wire directly
Material: Probe: stainless steel
shell：PBT
Weight：Approx. 0.4kg

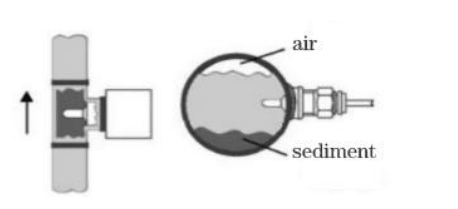

For vertical installation, it should be installed on the pipe section flowing from bottom to top. When mounted horizontally, the probe should be kept away from air and sediment.
| SN10- | G2H | A | 3 | 1 | X | A | 30 | specification | |||||||
| SN10- | SN10 series electronic flow switch | ||||||||||||||
| M1K | Interface thread M18*1.5 internal thread With the installation accessories, it is convenient to rotate and adjust the installation direction on |
||||||||||||||
| G2H | it Interface thread G1/2 female thread |
||||||||||||||
| G4H | Interface thread G1/4 male thread | ||||||||||||||
| K5 | Chuck connection (outside diameter 50.5mm) | ||||||||||||||
| Custom threads, such as NPT1/2, type N12 | |||||||||||||||
| A | DC DC24V±20% power supply | ||||||||||||||
| B | AC AC230V±15% power supply | ||||||||||||||
| 1 | PNPoutput | ||||||||||||||
| 2 | NPNoutput | ||||||||||||||
| 3 | relay output | ||||||||||||||
| 1 | Normally open + normally closed output | ||||||||||||||
| X | Probe material: 304 stainless steel | ||||||||||||||
| XL | Probe material: 316L stainless steel | ||||||||||||||
| A | Connector type (standard with 2 meters of wire) | ||||||||||||||
| B | Straight out | ||||||||||||||
| 30 | Probe rod length unit mm (including thread) | ||||||||||||||
| L | Customized probe rod length unit mm (including | ||||||||||||||
| * The factory is standard equipped with electrical accessories M12 connector type ZL05-PU02FG * Select M18*1.5 internal thread installation mode, please pay attention to the selection of installation accessories * Customizable thread, H for external thread, K for internal thread * For selection of electrical accessories and installation accessories, please refer to the appendix page on page - * The selection table is only available for parameter selection, and the corresponding code is delivered. |
|||||||||||||||
