Explosion-proof digital display intelligent temperature switch sensor-T86D

Product introduction

The T860D uses a high precision sensor to measure temperature and the signal is processed by the rear processing circuitry and converted to a standard industrial electrical signal for output and display.
The all-metal housing design and bright LED digital display allow the T860D to be used in a variety of industrial applications. The two-button design and menus make it easy to use, and a variety of connection options are available to meet specific installation requirements.

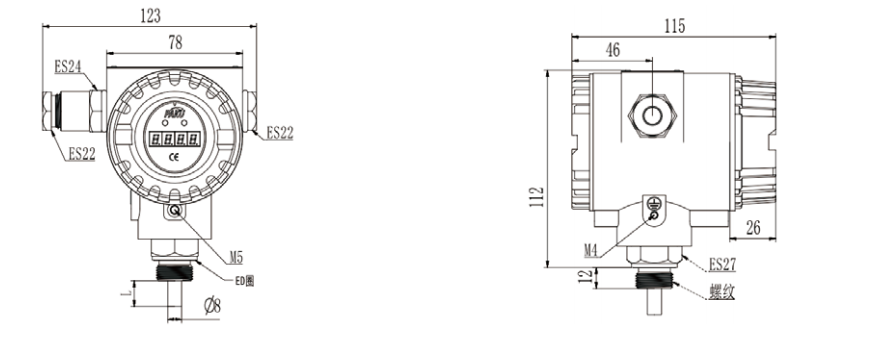

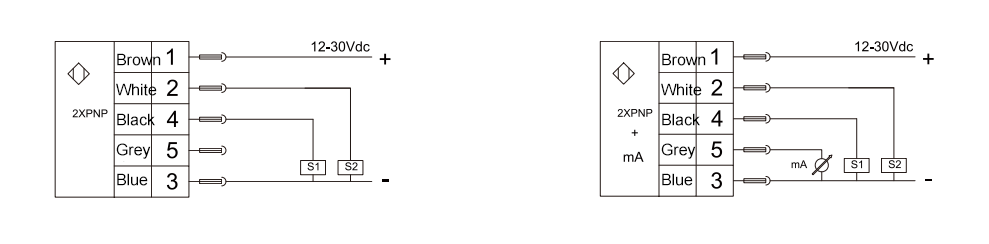

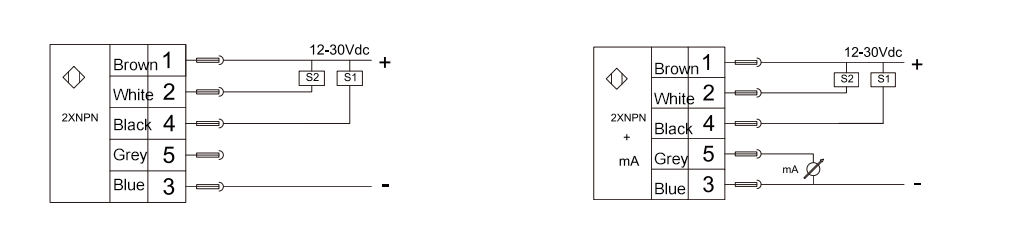

Technical Parameters Wiring diagram 1 (PNP output) Wiring Diagram 2 (NPN output) Dimension Drawing Selection Table

-Supply voltage: 12.... .30Vdc
No-load current consumption: Maximum 30mA, 24Vdc power supply
-Switching output: Output type: PNP, NPN selectable normally open and normally closed S1, S2 can be set
Output current: <500mA Response time <10ms
Switching accuracy: ≤±0.5% of range
Current type analogue output: ≤±0.5% of range
Output type: 4.... .20mA can be set
-Load RA:≤0.5KOhm
-Linearity: ≤ 0.5% of range
-Wiring protection: reverse phase, overload, short circuit protection.
Display: Design: Red 4-digit 8mm high brightness LED
Display range: 999....9999
Accuracy: ≤ ± 0.5% of range
-Stability (annual drift): ≤ ± 0.3% range
-Temperature: medium temperature: -20..... .85°C
Ambient Temperature: -20.... .80°C
Storage temperature: -30....80°C .
Material: Meter head housing: aluminium alloy
Housing: stainless steel 304
Medium contact part: stainless steel 304
-Protection level: IP67
-Outlet mode: terminal block

T86 D- A P A A G4 H 050  S T Details
T86D-                   T86D Series Explosion-proof Digital Intelligent Temperature Switch Sensor
  A                 2 switching outputs
  B                 2 switching + 1 analogue 4-20MA outputs
  C                 2 switching + 1 analogue 1-5V outputs
    P               PNP outputs
    N               NPN outputs
      A             Ranges 0... 100°C
      B             Range 0... 150°C
      C             Range -50.... .200°C
      D..             Customised ranges, e.g. -20... 100°C, option: D-20... 100°C
        A           Threaded connection
        B           Chuck connection
        D           Flange connection
          G4         Interface thread: G1/4
          G2         Interface thread: G1/2
          N4         Interface thread: NPT1/4
          N2         Interface thread: NPT1/2
          K5         Chuck (50.5mm)
          25          DN25 flange, option: 25
                    Customised threads
            H       External thread
              L...     Customised Probe lengths in mm (without threads)
              025      Probe lengths in mm (without threads)
              050      Probe Length in mm (without threads)
              075      Probe Length in mm (without threads)
              100      Probe Length in mm (without threads)
                S   Wiring Terminal
                  T Casing (if casing is selected, the selected threads and rod length default to casing threads)
* The selection table is for parameter selection only, and will be shipped with the corresponding code for the parameter.
