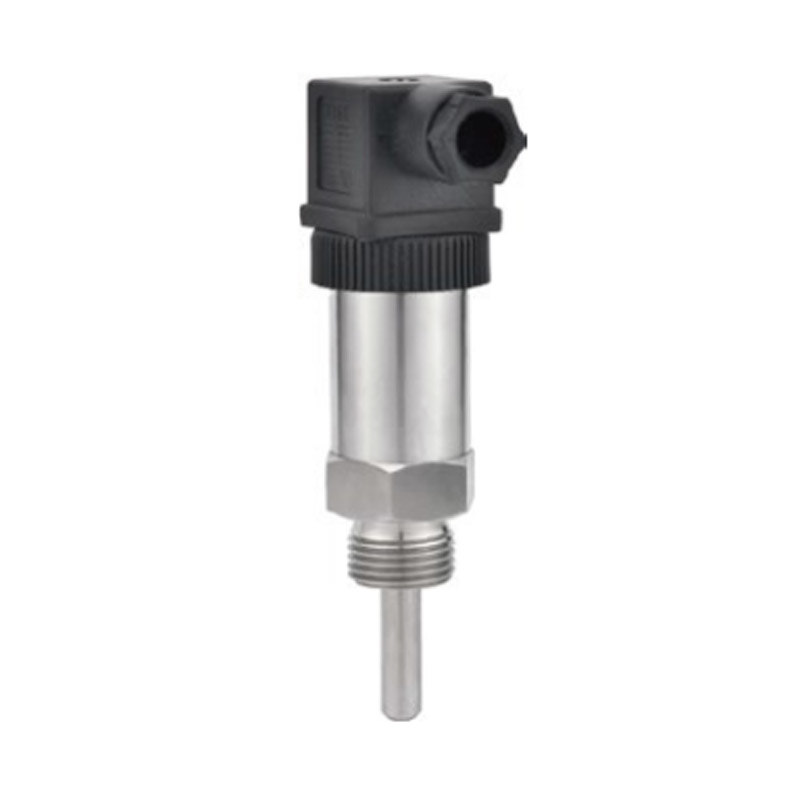

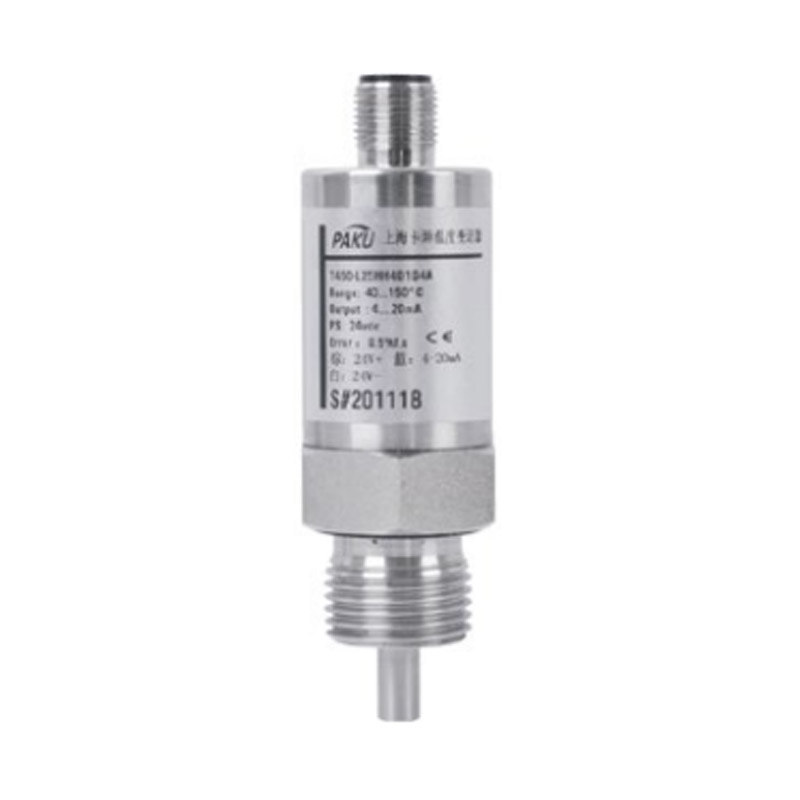

Integrated temperature transmitter-T450

Product introduction

The T450 contains a PT100 probe. The PT100 resistance varies with temperature. The internal circuit of the T450 converts this value into a linear analog output.
Simple installation, a variety of range optional, a variety of specifications probe optional, stainless steel housing, compact and firm structure. And can be equipped with field instrument and cabinet type control table.

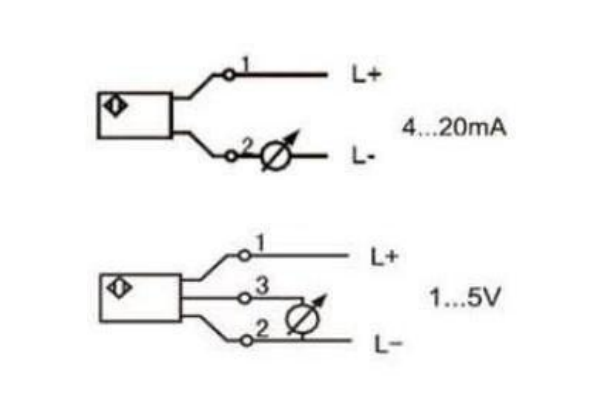

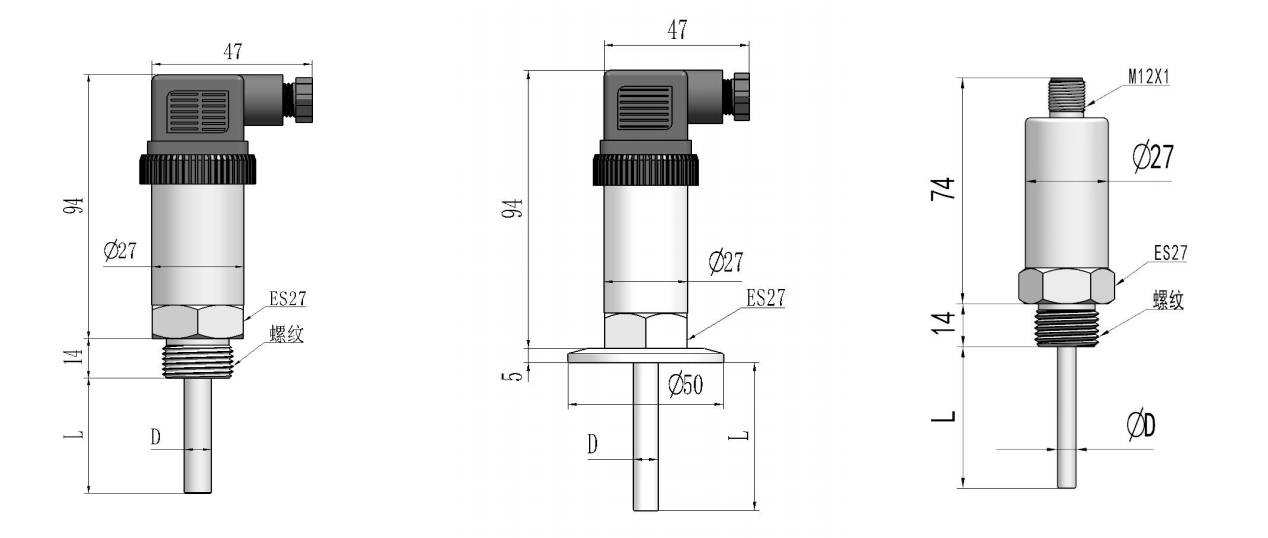

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table Optional Display Header

It can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

- Measuring range: -50℃ ... 200℃ (user-defined)
- Linear degree: < 0.1%
- Accuracy: ±0.2K +0.2% full scale
- Resolution: 0.1K
- Pressure: Φ6 type: probe 400bar, Φ8 type: probe 100bar
- Temperature effect: 0.1K/10K
- Response time: 2.3 seconds
- Working voltage: 12... 30Vdc
- Electrical protection: anti-pole, overload protection
- Sensor: PT100
- Ambient temperature: -25... 80 ℃
- Protection grade: IP65
- Shell material: 304 stainless steel
- Contact part material: 304 stainless steel
- Electrical connection: Hersman /M12*1 connector

T450- A M A D1 G4 B specification
T450-               T450 series integrated temperature transmitter
  A             Probe length L 25mm (without thread)
  B             Probe length L 50mm (without thread)
  C             Probe length L is 75mm (without thread)
  D             Probe length L is 100mm (without thread)
  L...             Custom probe length L= mm (without thread)
    H           RA
      A         Range - 50... 0 ℃
      B         Range - 50... 50 ℃
      C         Range 0... 50 ℃
      D         Range 0... 100 ℃
      E         Range 0... 120 ℃
      F         Range 0... 150 ℃
      G         Range 0... 200 ℃
      H...         Customize the range, e.g. -20... 100 ℃ ,
Selection: H - 20.. 100
              The analog range output is: 4... 20mA
        41        The armoured analog range output is: 4... 20mA
              The analog range output is :0... 10V
              The analog range output is :1... 5V
          D1     The probe diameter is Ф6
          D2     The probe diameter is Ф8
          D12     Custom probe for example diameter Φ 12
          K     Threaded   connection   with   movable   sleeve
(optional)
            G4   Threaded interface G1/4
            G2   Threaded interface G1/2
            K5   Sanitary chuck 50.5mm
            M2   Threaded interface M20*1.5
                Custom thread
              A Connector type M12*1 (standard with 2 meters
              B Hersman joint
* The selection table is only available for parameter selection, and the corresponding code is delivered.

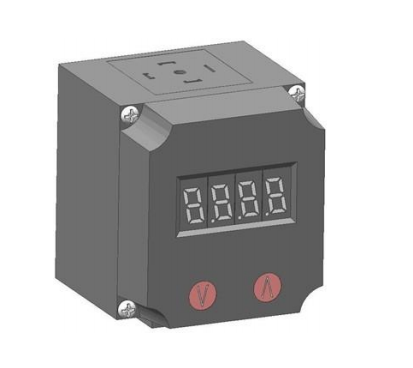

F10- A     specification
F10-       Display meter
  A     4-20 ma output
  B     1-5 v output
  C     0 to 10 v output
 * The display represents an electronic device used for digital display of a sensor signal,
 The desired display range can be set by setting button
 * Free programming through an unprocessed processor
 * No on-site setup required
 * With 4... 20mA output sensor
 * Protection class IP55
 * simplicity of operator
