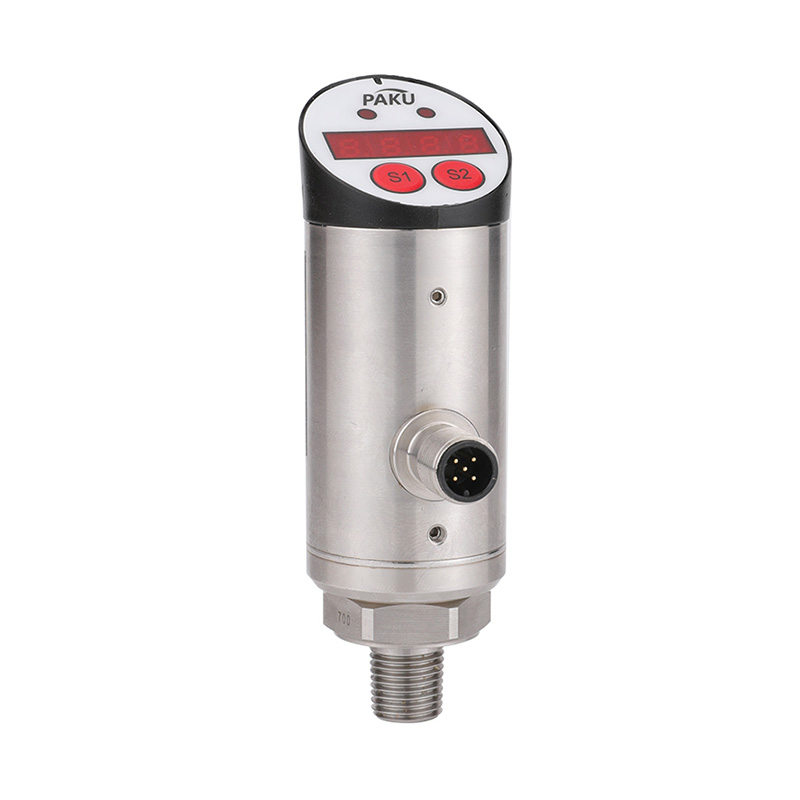

High frequency impact resistant electronic digital pressure switch sensor-PN80A

Product introduction

PN80A series electronic pressure sensors adopt a glass micro-fused core to ensure high accuracy and durability. Equipped with on-site display and LED digital display to show real-time pressure or set menu.
Maximum measuring range: -1...600bar. The digital LED displays pressure value and switch status. Menu can set switch point, analog output start and end point, output function, memory function, and display function, so settings do not need to be completed on site. High reliability, output can be directly used with PLC. M12 locking connector for easy connection and disconnection, with high protection level. Can measure positive or negative pressure.
With both switching and analog outputs, this sensor can be used as both a pressure switch and a pressure transmitter.

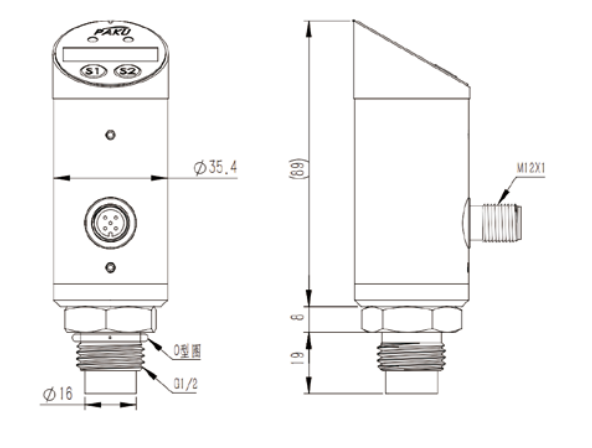

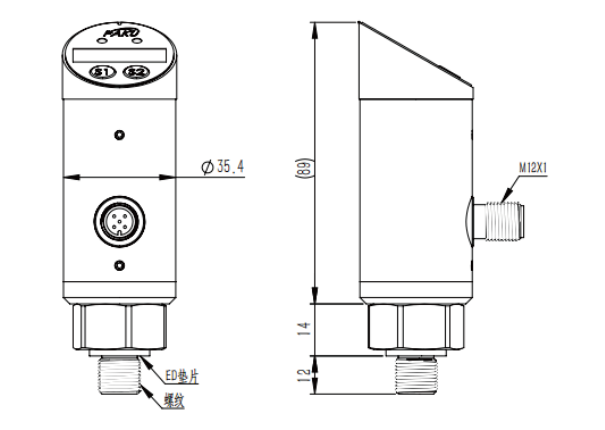

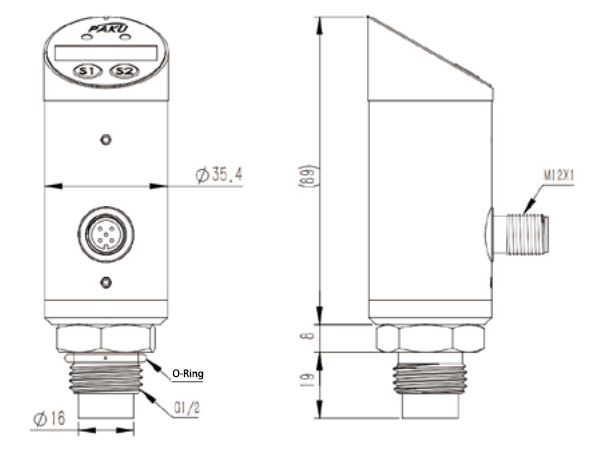

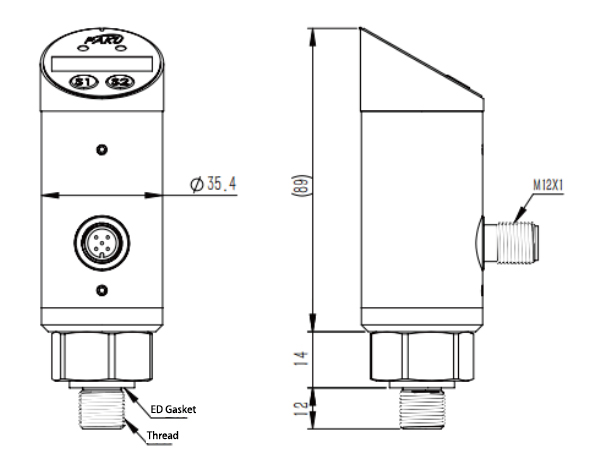

Technical Parameters Wiring Diagram Dimensional Drawing - Threaded Type Dimensional Drawing - Flush Diaphragm Type Selection Table

Power Supply: 12...30Vdc
High-precision diffused silicon core
No-load current consumption: Max. 30mA, powered by 24Vdc
Switching Output:
Output Type: PNP, NPN optional; normally open/normally closed configurable
S1, S2 Output Current: <500mA
Response Time: <10ms
Switching Accuracy: ≤±0.5% F.S.
Analog Output (Current): ≤±0.5% F.S.
Output Type: 4...20mA configurable
Load RA: ≤0.5KOhm
Linearity: ≤0.5% F.S.
Protection Class: IP56
Wiring Protection: Reverse polarity, overload, short-circuit protection
Display:
Design: Red 4-digit, 8mm high-brightness LED
Display Range: 999...9999
Stability (annual drift): ≤±0.3% F.S.
Temperature:
Medium Temperature: -20...85℃
Ambient Temperature: -20...80℃
Materials:
Display Housing: Engineering plastic
Body: Stainless steel 304
Wetted Parts: Stainless steel 304
Cable Connection: M12x1 connector
Display part and hexagonal part rotatable 330°
Temperature Compensation

Pin

Wire Color

Signal

1 Brown  24V
2 White  Switch 2
3 Blue  GND
4 Black  Switch 1
5 Grey mA

PN80A- P Z A G4 H D Q B Model Selection Table (Detailed)
PN80A-                 PN80A Series High-frequency Impact-resistant Electronic Digital Pressure
  P               PNP Output
  N               NPN Output
    Z             Positive Pressure
    F             Negative Pressure
      A           Setting range :-1.. 1bar or 0.. 1bar
      B           Setting range : -1...2bar or 0...2bar
      C           Setting range : -1...5bar or 0...5bar
      D           Setting range : 0...10bar
      E           Setting range : 0...25bar
      F           Setting range : 0...100bar
      G           Setting range : 0... 160
      H           Setting range: 0...250bar
      I           Setting range: 0...400bar
      J           Setting range: 0...600bar
      K           Custom range, e.g. 300bar
        G4         Thread Connection: G1/4
        G2         Thread Connection: G1/2
        K5         Clamp Connection (Outer Diameter 50.5mm) (Max Range 16bar)
        P         Flush Diaphragm Connection
                  Custom Thread
          H       External Thread
          K       Internal Thread
            A     1 Switching Output
            B     2 Switching Outputs
            C     1 Analog Output 4-20mA
            D     1 Switching + 1 Analog Output 4-20mA
            E     2 Switching + 1 Analog Output 4-20mA
            F     2 Switching + 1 Analog Output 1-5V
            G     2 Switching + 1 Analog Output 0-10V
              Q   M12*1 Connector
                B No Damper, No Radiator
                Z Optional Damper
                S Optional Radiator
* If 316L stainless steel is needed, please indicate in remarks
* Model selection table is for parameter selection only, final factory delivery is based on parameter code
* Maximum pressure range of flush diaphragm type is 160bar
