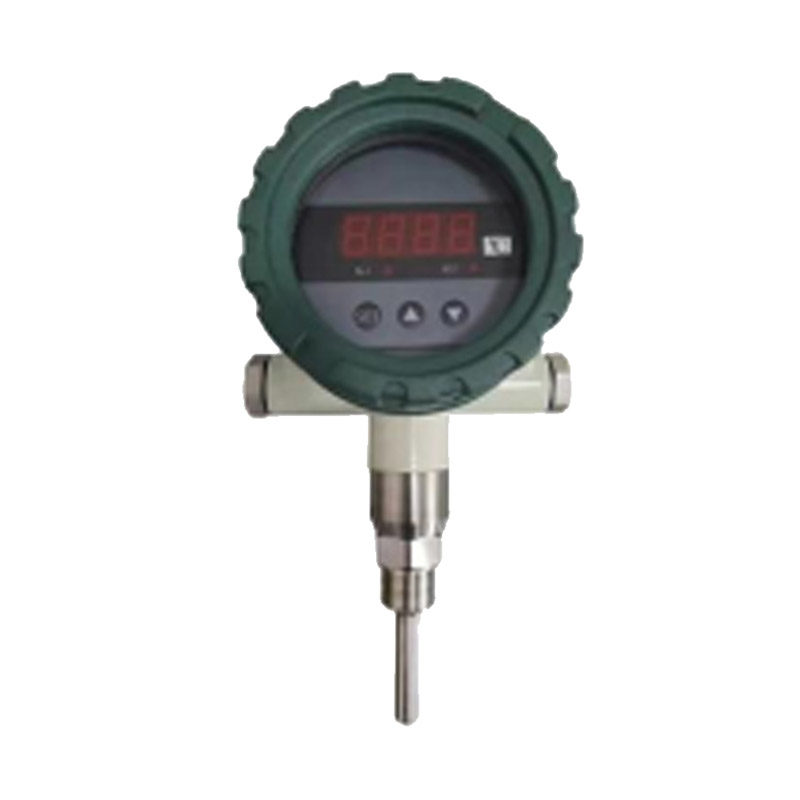

Electronic digital temperature switch sensor-T85C

Product introduction

The T85C Series intelligent temperature controller integrates temperature measurement, display, output, and control into a single smart digital temperature monitoring and control device.

The product adopts a fully electronic structure. At the front end, an oil-filled piezoresistive temperature sensor with an isolation diaphragm is used. The signal is converted by a high-precision A/D converter and processed by a microprocessor to display real-time values on site and output one analog signal and four switching signals.

This intelligent digital temperature controller offers flexible use, simple operation, easy commissioning, and high reliability. It is widely used in industries such as hydropower, tap water, petroleum, chemical engineering, machinery, and hydraulics for on-site measurement, display, and control of fluid temperature.

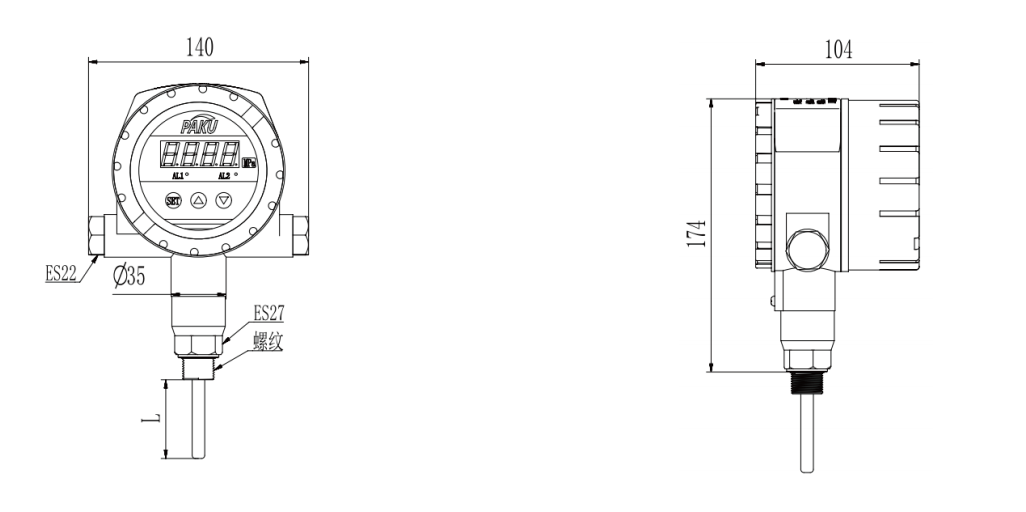

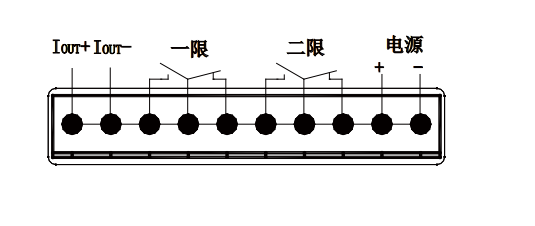

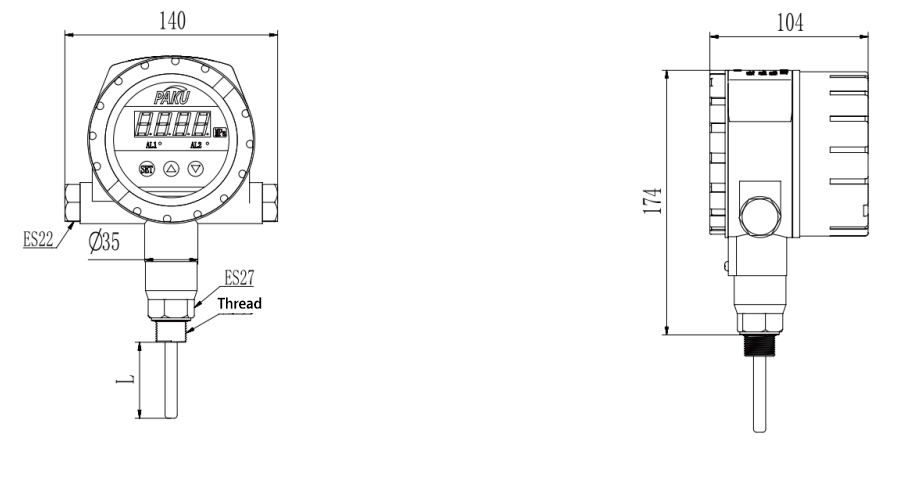

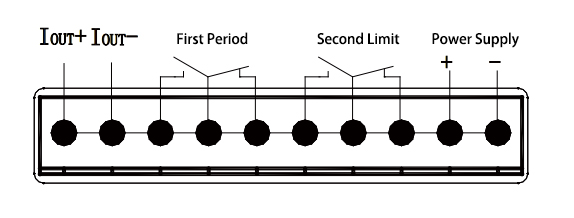

Technical Parameters Wiring Diagram Dimensions Diagram Selection Table

-Standard 100 mm instrument mounting
-4-digit LED display
-Four relay control point outputs
-On-site setting of control points
-Standard 4~20mA analog signal output
-Power supply options: 24VDC or 220VAC

T85C - A A G4 H D L B

Model Selection Table

T85C -

T85C Series Digital Intelligent Temperature Switch Sensor

    A

Standard Integrated Version

    B

Explosion-Proof Integrated Version

    C

Standard Remote Version

    D

Explosion-Proof Remote Version

      A

Measuring Range: 0...100°C

      B

Measuring Range: 0...150°C

      C

Measuring Range: -50...200°C

      D

Custom Measuring Range, e.g., -20...100°C → Model: D-20..100

        G4

Threaded Connection: G1/4

        G2

Threaded Connection: G1/2



Custom Thread

          H

External Thread

          K

Adjustable Compression Fitting

            A

1 Switching Output

            B

2 Switching Outputs

            C

1 Analog Output (4~20mA)

            D

1 Switching Output + 1 Analog Output (4~20mA)

            E

2 Switching Outputs + 1 Analog Output (4~20mA)

            F

4 Switching Outputs + 1 Analog Output (4~20mA)

              L...

Custom Probe Length in mm (excluding thread)

              025

Probe Length in mm (excluding thread)

              050

Probe Length in mm (excluding thread)

                A

Power Supply: 24V

                B

Power Supply: 220V

*Note: The model selection table is for parameter reference only. Final product will be manufactured based on parameter-coded specifications.
