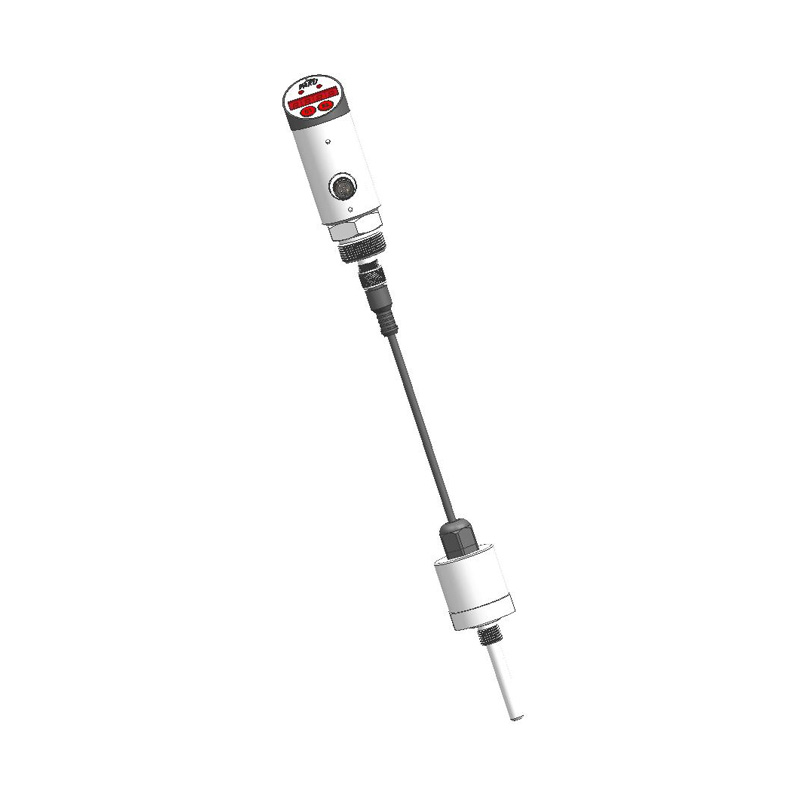

Product 3D Image
Get coupons

Split digital display intelligent temperature sensor-T85D

Product introduction

The high precision sensor is used for temperature measurement, and the signal is processed by the rear processing circuit and converted into standard industrial electrical signal output and display. Full metal housing design, the use of highlighted LED digital display, so that the series can be used in a variety of industrial applications. Double key design and menu make the product more convenient to use. Multiple connection modes can fully meet various specific installation requirements. The display head can rotate 330° to ensure the best viewing Angle under different installation modes.
- Economical products
- 4-digit LED digital display
- Full Metal Jacket
- PNP/NPN can choose
- 4--20mA
- Display head can be rotated
split type

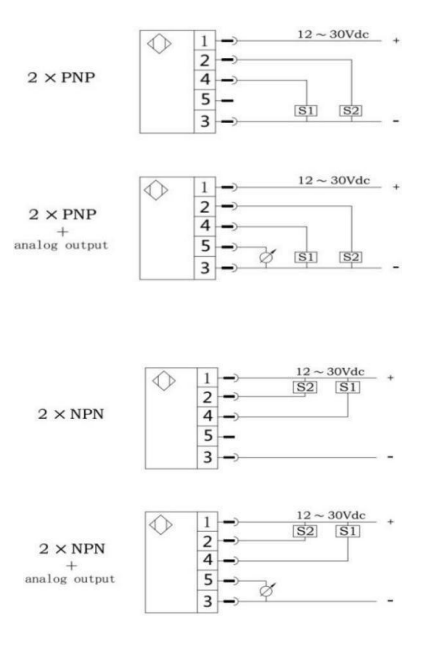

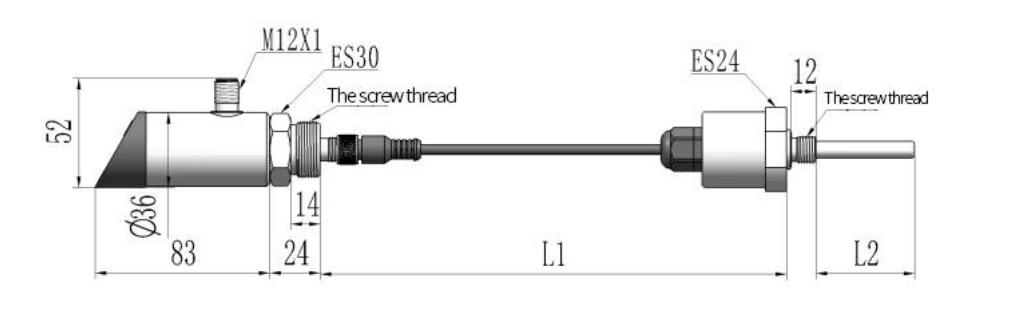

Technical Specification Wiring Diagram Dimension Figure Selection Table

- measuring range :-50..200℃
- supply voltage: 12...30Vdc
- No-load current consumption: maximum 30mA, 24VDC power supply
- switched output:Output type: PNP, NPN optional
normally open normally closed can be setS1, S2 output current: <500mA
- Response time <10ms
- Switch accuracy: ≤ ±0.5% range
- Current type analog output: ≤ ±0.5% range
- Output type: 4... Can be set to 20 ma
- load RA: 0.5 KOhm or less
- Linearity: ≤ 0.5% range
- Wiring protection: reverse phase, overload, short circuit protection
- display: Design: red 4-bit 8mm high brightness LED Display range: 999... 9999
- Accuracy: ≤ ±0.5% range
- Stability (annual drift) : ≤ ±0.3% range
- temperature :medium temperature :-50..200℃ environment temperature :-20...80℃
storage temperature :-30...80℃
- materials :Shell of the watch head: engineering plastic Shell: 304 stainless steel
Medium contact part: stainless steel 304
- Protection grade: IP67
- Outgoing way: M12X1 connector

T85D- A P A A G2 2 G4 H 050 S specification
T85D-                     T85D series split type digital display
intelligent temperature sensor
  A                   2 switches output
  B                   2 switching quantities +1 analog
quantities 4-20mA output
  C                   2 switching quantities +1 analog
    P                 PNPoutput
    N                 NPNoutput
      A               Range 0... 100 ℃
      B               Range 0... 150 ℃
      C               Range - 50... 200 ℃
      D..               Customize the range, e.g. -20...
100 ℃ ,Selection: D - 20.. 100
        A             Threaded connection
        B             Chuck connection
          G2           Display fixed thread: G1/2
          G21           Display fixing thread: G1/2+ mounting
                    Connecting wire length, standard 2m
                      Length of optional connection line m (unit)
              G4       Thread of mounting interface: G1/4
              G2       Thread of mounting interface: G1/2
              N4       Installation interface thread: NPT1/4
              N2       Installation interface thread: NPT1/2
                      Custom thread
                H     external thread
                  L...   Customized probe rod length unit mm
                  025    Probe rod length unit mm (without thread)
                  050    Probe rod length unit mm (without thread)
                  075    Probe rod length unit mm (without thread)
                  100    Probe rod length unit mm (without thread)
                    S M12*1 connector (standard with 2 meters
wire)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
