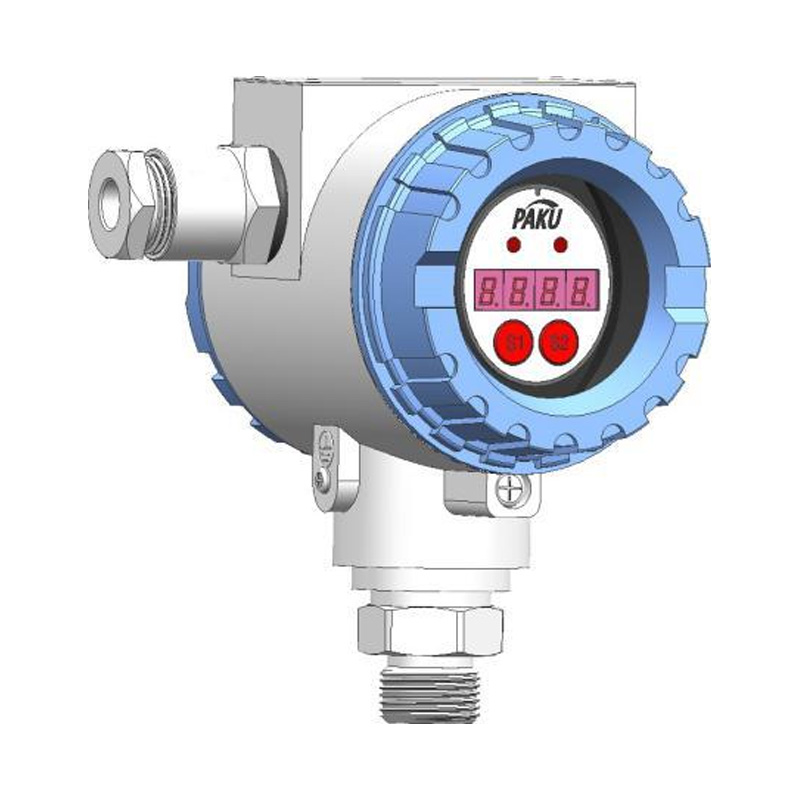

Product 3D Image
Get coupons
Product introduction

The PN65D adopts diffused silicon sensor for pressure measurement, and the signal is processed by the post-processing circuit and converted into standard industrial electrical signal output and display.
Full metal housing design, with highlighted LED digital display, so that the series can be used in a variety of industrial applications. Double key design and menu make the product more convenient to use, a variety of connection methods can fully meet a variety of specific installation needs.

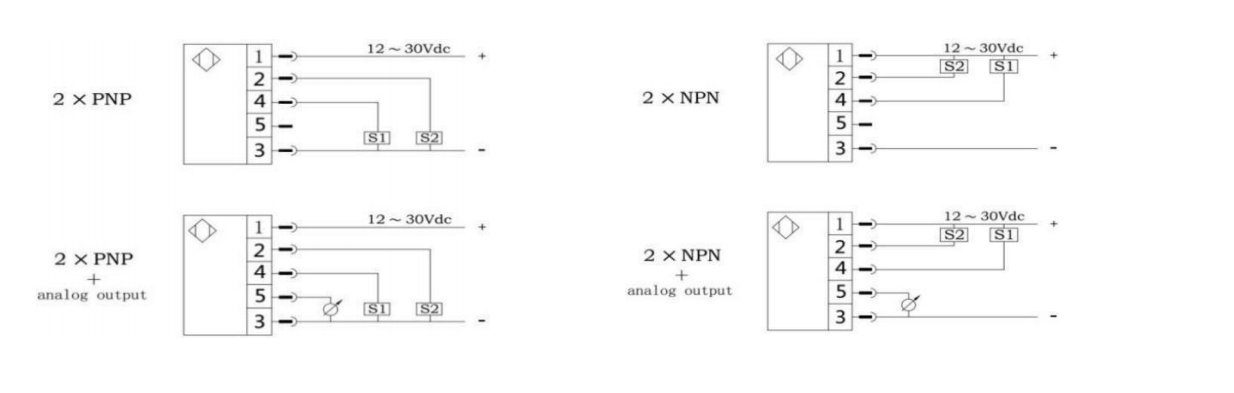

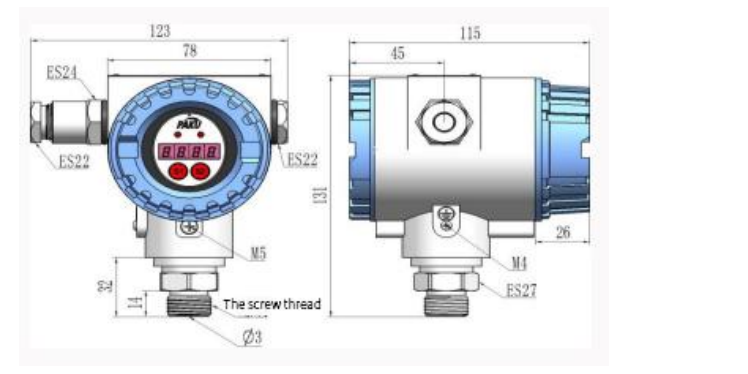

Technical Specification Wiring Diagram Dimension Figure Selection Table

- Power supply voltage: 12... 30Vdc
- No-load current consumption: maximum 30mA, 24VDC power supply
- switched output
Output type: PNP, NPN optional normally open normally closed can be set
S1, S2 Output current: <500mA Response time <10ms
Switching accuracy: ≤ ±0.5% range
Current type analog output: ≤ ±0.5% range
Output type: 4... Can be set to 20 ma
- load RA: 0.5 KOhm or less
- Linearity: ≤ 0.5% range
- Wiring protection: reverse phase, overload, short circuit protection
- display:Design: Red 4-bit 8mm high brightness LED display range: 999... 9999
- Accuracy: ≤ ±0.5% range
- Stability (annual drift) : ≤ ± 0.3% range
- temperature:medium temperature:-20...85℃
environment temperature:-20...80℃ storage temperature:-30...80℃
- materials:Nod case: aluminum alloy Shell: 304 stainless steel
Medium contact part: stainless steel 304
- Protection grade: IP67
- Outgoing way: wiring terminal

PN65D- P Z A G4 H D B specification
PN65D-               PN65D series explosion-proof electronic
digital display pressure sensor
  P             PNP output
  N             NPN output
    Z           positive pressure
    F           negative pressure
      A         Setting range: -1.. 1 bar or 0.. 1bar
      B         Setting range: -1.. 2 bar or 0.. 2bar
      C         Setting range: -1.. 5 bar or 0.. 5bar
      D         Set range: 0.. 10bar
      E         Set range: 0.. 25bar
      F         Set range: 0.. 100bar
      G         Set range: 0.. 160bar
      H         Set range: 0.. 250bar
      I         Set range: 0.. 400bar
      J         Set range: 0.. 600bar
      K         Custom range, such as 300bar,
Selection: K300
        G4       Interface thread: G1/4
        G2       Interface thread: G1/2
        K5       Chuck connection (outside diameter
50.5mm)
                Custom thread
          H     external thread
          K     internal thread
            A   1 switch output
            B   2 switches output
            C   1 analog quantity 4-20mA output
            D   1 switch +1 analog 4-20mA output
            E   2 switching quantities +1 analog quantities
4-20mA output
            F   2 switching quantities +1 analog quantities
1-5V output
              B No damper, no heat sink
              Z Damper (optional)
              S Heat sink (optional)
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by
the code.
