Explosion-proof electronic digital differential pressure sensor PN-533

Product introduction

Principle and Features: The PN-533 adopts a diffused silicon sensor for pressure measurement. The signal is processed by the post-processing circuit and converted into a standard industrial electrical signal output and display.
The full metal housing design and high-brightness LED digital display allow this series of products to be used in various industrial environments. Dual-button design and menu make operation more convenient, and multiple connection methods fully meet various specific installation requirements.

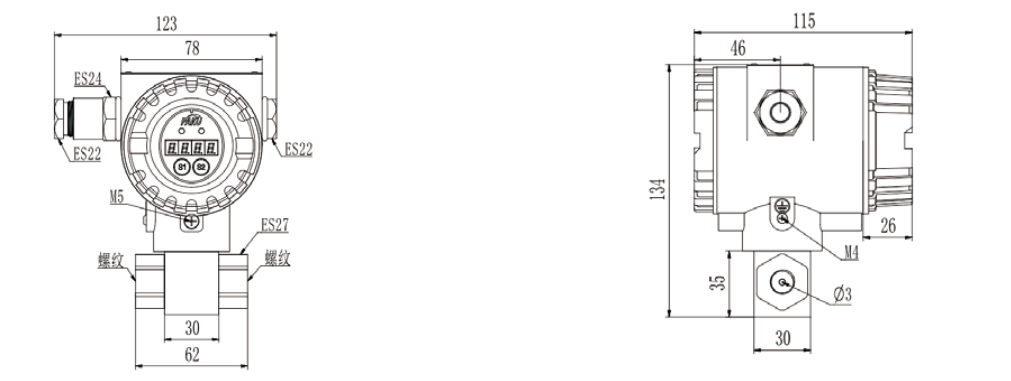

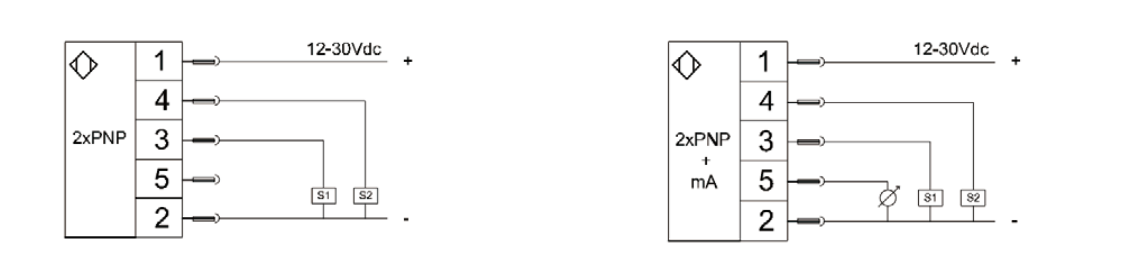

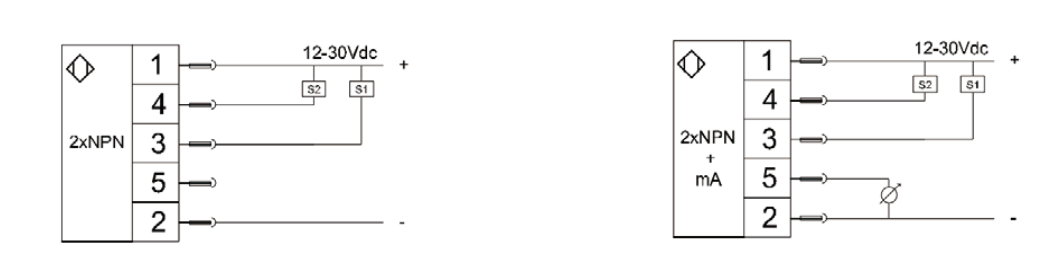

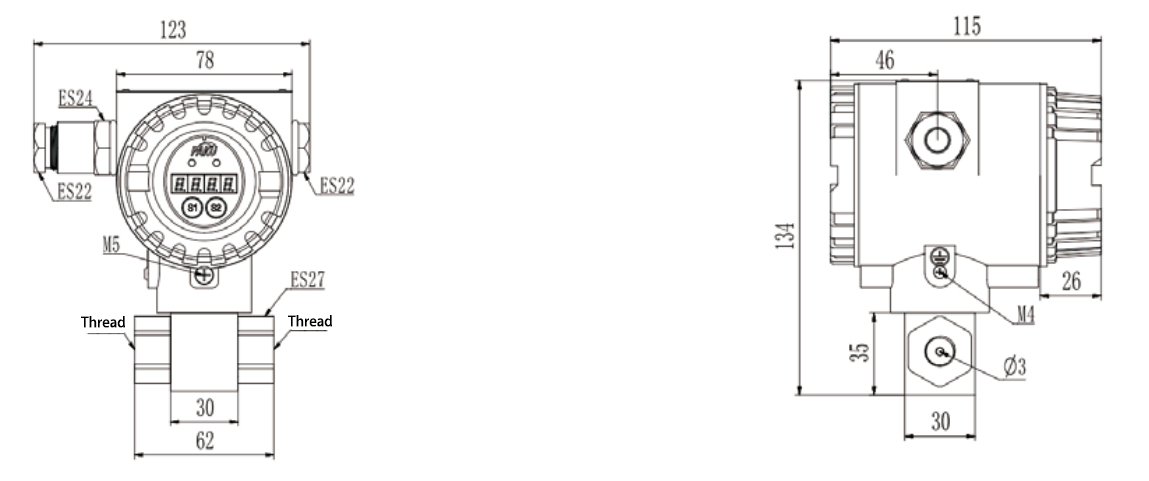

Technical Parameters Wiring Diagram 1 (PNP) Wiring Diagram 2 (NPN) Dimension Drawing Selection Table

Power Supply Voltage: 12...30Vdc
Measuring Range: 0--0.1bar--25bar
Maximum Overpressure: 300% of full scale
Power Supply Voltage: 12...30Vdc
No-load Current Consumption: Max 30mA, 24Vdc power supply
Output:
 Output Type: PNP, NPN selectable, NO/NC configurable
 S1, S2 Output Current: <500mA
 Response Time: <10ms
 Switching Accuracy: ≤±0.5% F.S.
Analog Output (Current Type): ≤±0.5% F.S.
Output Type: 4...20mA configurable
Load RA: ≤0.5KOhm
Linearity: ≤0.5% F.S.
Wiring Protection: Reverse polarity, overload, short circuit protection
Display:
 Design: Red 4-digit 8mm high-brightness LED
 Display Range: 999...9999
Accuracy: ≤±0.5% F.S.
Stability (Annual Drift): ≤±0.3% F.S.
Temperature:
 Medium Temperature: -20...85℃
 Ambient Temperature: -20...80℃
 Storage Temperature: -30...80℃
Materials:
 Display Housing: Aluminum Alloy
 Body: Stainless Steel 304
 Wetted Parts: Stainless Steel 316L
Protection Rating: IP67
Output Type: Terminal Block

PN-533 P A G4 H G4 H B

Detailed Description

PN-533

PN-533 Series Explosion-Proof Electronic Digital Differential Pressure Sensor

  P

PNP Output

  N

NPN Output

    A             Setting range: 0-0. 1bar
    B             Setting range:  0--0.2bar
    C             Setting range:  0--0.5bar
    D             Setting range:  0--1bar
    E             Setting range: 0--2.5bar
    F             Setting range:  0--6bar
    G             Setting range:  0--10bar
    H             Setting range: 0--16bar
    I             Setting range: 0--25bar
    J

Customized Range, e.g., 20bar, Selection Code: J20

      G4

High Pressure Port Thread: G1/4

      G2

High Pressure Port Thread: G1/2

      K5

Clamp Connection (Outer Diameter 50.5mm) (Maximum Range 16bar)



Customized Thread

        H

External Thread

        K

Internal Thread

          G4

Low Pressure Port Thread: G1/4

          G2

Low Pressure Port Thread: G1/2

          K5

Clamp Connection (Outer Diameter 50.5mm)



Customized Thread

            H

External Thread

            K

Internal Thread



2 Switch Outputs



2 Switch Outputs + 1 Analog Output 4-20mA



2 Switch Outputs + 1 Analog Output 1-5V

                B

Without Damping Pin, Without Radiator

                Z

Damping Pin (Optional)

                S

Radiator (Optional)

* Selection table is for technical selection only. Factory model corresponds to selection model via code.
