Split digital display anti-corrosion pressure switch sensor-PN65E

Product introduction

The PN65E series of electronic pressure sensors use ceramic piezoresistive chips, high density polymer materials resistant to acids and alkalis, and corrosion-resistant cables. With on-site display, LED digital display of on-site pressure or setup menu.
Maximum measuring range: -1...600 bar. . 600 bar, digital LED display of the pressure value and switching status, menu setting of switching point, analogue start and end point, output function, storage function and display function, so that the setting does not have to be done on site. Highly reliable, outputs can be used directly with PLCs. m12 locking connectors for easy disconnection and high level of protection. Positive or negative pressure can be measured. Because of the switching and analogue outputs, the sensor can be used as both a pressure switch and a pressure transmitter.

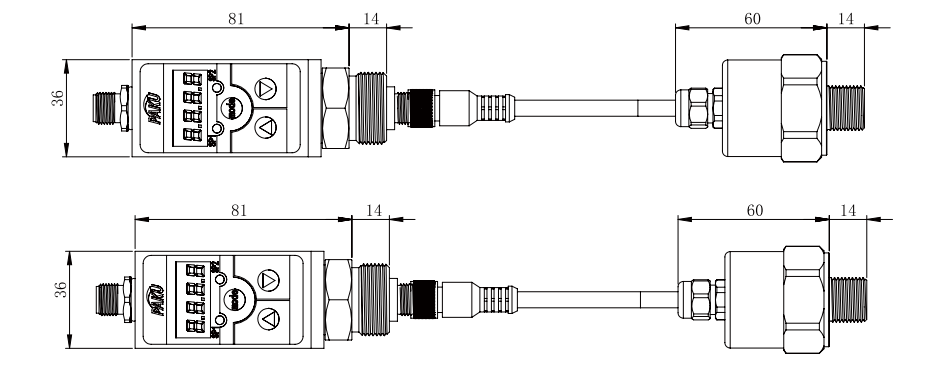

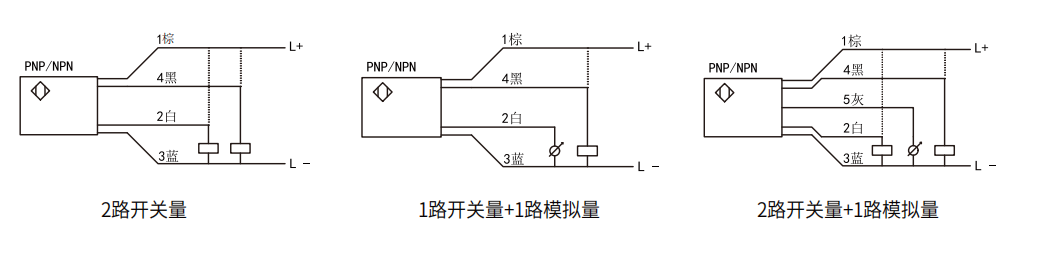

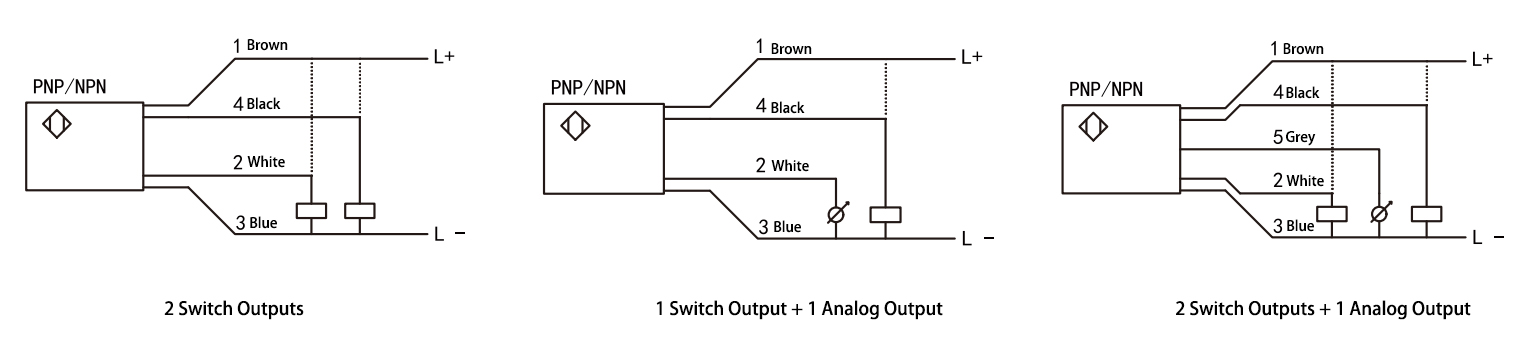

Technical Parameters Wiring Diagram Dimension Drawing Selection Table

-Range: see selection table for details
-Process capability: see table below
-Switching output: Setting range 0.5%.... ...100 per cent of range
-Accuracy 0.5% of range
-Number of switches 1 or 2 optional
-Output function PNP;NPN Normally open or normally closed can be set Rated current ≤300mA
-Response time ≤30ms
-Analogue output: Output type 4..... .20mA Analogue output load ≤500Ω
-Accuracy: 0.5 per cent
-Repeatability: 0.5% range
-Display: red 9mm LED
-Range -999... .9999
-Power supply: 15..... .30VDC
Electrical protection: reverse polarity, overload, short-circuit protection
-Ambient temperature: -20.... .80°C
-Medium temperature: -30.... .100°C
-Storage temperature: -40.... .100℃
-Temperature effect: <±0.03%FS/K
-Protection level: IP65 for display head, IP65 for sensing probe.
-Process connection: stainless steel + NBR sealing
-Process connection cable: PTFE
-Case material: zinc alloy
-Probe part material: PTFE
-Electrical connection: M12 x 1 pole connector
-M12 x 1 pole connector

PN65E- P Z A G4 H D Q B elaborate on
PN65E-                 PN65E Series Digital Intelligent Pressure Switch Sensor
  P               PNP Output
  N               NPN Output
    GP001             Range: 0--10Kpa
    GB001             Range: 0--1bar
    GB010             Range: 0--10bar
    GP-
100..0
            Ranges: customised negative pressure selection according to the actual range, for example: -100KPa...0KPa
      B           Accuracy level: 0.2
      C           Accuracy level: 0.5
      D           Accuracy level: 1.0
        N4         Interface Thread: NPT1/4
        P3         Interface thread: PT3/8
        G4         Interface thread: G1/4
                  Customised interface thread
          H       External thread
          K       Internal thread
            2M     Intermediate connection line: e.g. 2m, 2M
              C   1 analogue 4-20mA output
              D   1 switch + 1 analogue 4-20mA output
              E   2 switches + 1 analogue 4-20mA output
                Q M12*1 connector (standard with 2m line)
*The selection table is for parameter selection only, and is shipped with the corresponding code of the parameter.
