Electronic digital differential pressure switch sensor-PN80D

Product introduction

The PN80D uses a diffuse silicon sensor to measure pressure, and the signal is processed by post-processing circuitry to convert the signal into a standard industrial electrical signal for output and display.
The all-metal housing and bright LED digital display allow the PN80D to be used in a variety of industrial applications. The two-button design and menus make it easy to use, and a variety of connection options are available to meet specific installation requirements. The 330° swivelling display head ensures optimum viewing angles in different installations.

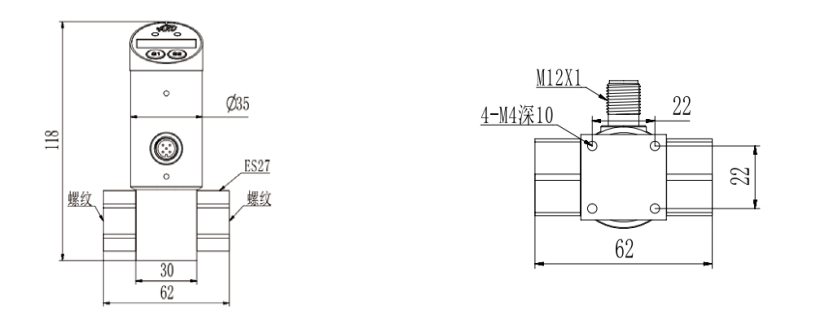

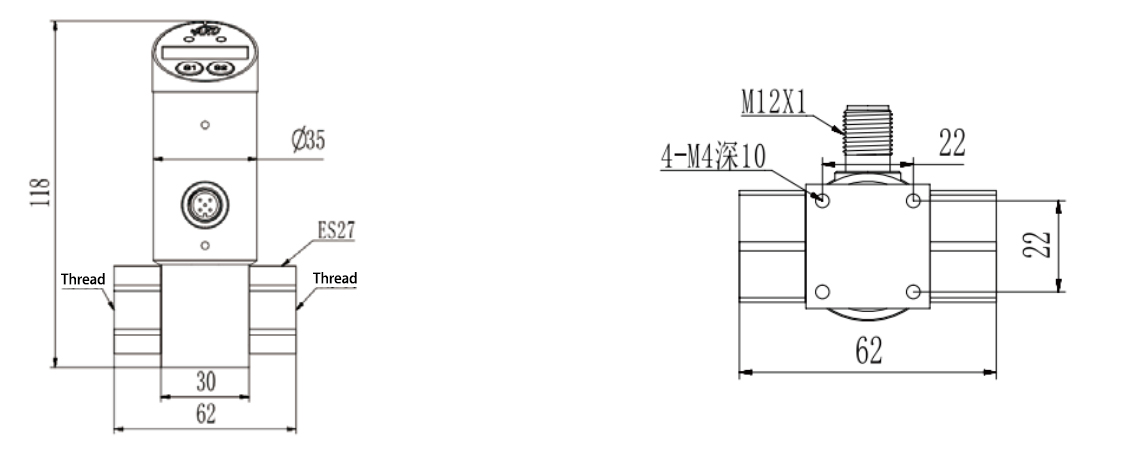

Technical Parameters Wiring Diagram Dimension Drawing Selection Table

-Supply voltage: 12.... .30Vdc
-Measuring range: 0-0.1bar-25bar
-Maximum withstand pressure: 150% of full scale
-Supply voltage: 12.... .30Vdc
No-load current consumption: Maximum 30mA, 24Vdc power supply
Output: Output type: PNP, NPN optional normally open and normally closed can be set S1, S2 Output current: <500mA Response time <10ms Switching accuracy: ≤±0.5% of the range
Analogue current output: ≤±0.5% of the range
Output type: 4.... .20mA can be set
-Load RA:≤0.5KOhm
-Linearity: ≤ 0.5% of range
-Wiring protection: reverse phase, overload, short circuit protection.
Display: Design: Red 4-digit 8mm high brightness LED Display range: 999... .9999 .9999
-Accuracy: ≤ ± 0.5% of range
-Stability (annual drift): ≤ ± 0.3% range
-Temperature: medium temperature: -20..... .85°C
Ambient Temperature: -20.... .80°C
Storage temperature: -30.... .80℃
-Materials: Meter head housing: engineering plastics
Housing: stainless steel 304
Media contact part: stainless steel 316L
-Protection level: IP56A
- Outlet: M12x1 connector

Needle Cable  Signal
1 Brown  24V
2 White  Switch 2
3 Blue  GND
4 Black  Switch 1
5 Grey mA

PN80D- P B G4 H G4 H Q B Details
PN80D-                   PN80D series electronic digital differential pressure switch sensor
  P                 PNP output
  N                 NPN output
    A               Setting range :0--0. 1bar
    B               Setting range :0--0.2bar
    C               Setting range :0--0.5bar
    D               Setting range :0--1bar
    E               Setting range :0--2.5bar
    F               Setting range :0--6bar
    G               Setting range :0--10bar
    H               Setting range :0--16bar
    I               Setting range :0--25bar
    J               Customised range, e.g. 20 bar, option: J20
      G4             High pressure connection thread: G1/4
      G2             High pressure connection thread: G1/2
      K5             Chuck connection (O.D. 50.5 mm) (max. pressure 16 bar)
                    Customised threads
        H           Male thread
        K           Female thread
          G4         Low pressure connection thread: G1/4
          G2         Low pressure connection thread: G1/2
          K5         Chuck connection (O.D. 50.5 mm)
                    Customised thread
            H       External thread
            K       Internal thread
                  2 switching outputs
                  2 switching + 1 analogue 4-20mA output
                  2 switching + 1 analogue 1-5V output
                Q   M12* 1 connector
                  B No damping nails, no heat sink
                  Z Damping nails (optional)
                  S Heat sink (optional)
    * The selection table is for parameter selection only, and will be shipped with the corresponding code for the parameter.
