Thermal differential pressure transmitter-PN53

Product introduction

PN53 series micro differential pressure transmitter adopts thermal micro-pressure core, using the micro-fluidic circuit integrated with the sensor chip, and detects the gas pressure by detecting the change of the flow rate of the hot air flow. PN53 has the features of strong overload capacity, strong anti-electromagnetic interference ability, wide measuring range and multiple signal outputs, etc., which is widely used in the detection of air or neutral gases, such as heating, ventilation and air-conditioning, process control, environmental control, clean room, or other systems that require micro differential pressure detection. Differential Pressure Detection.

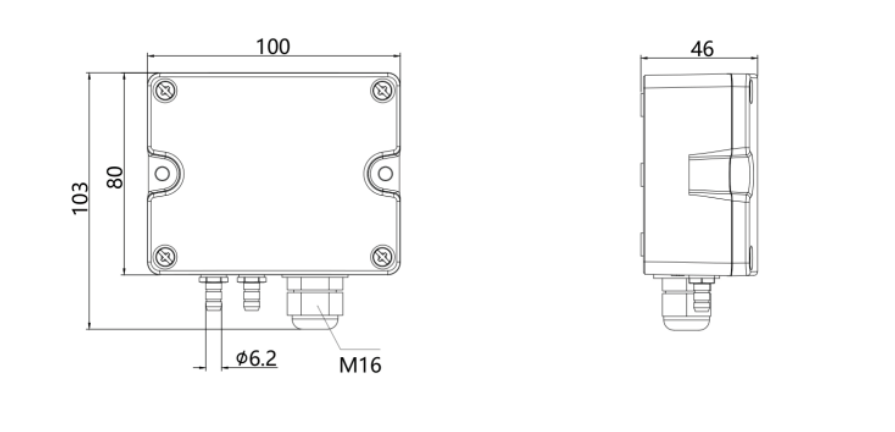

Technical Parameters Technical Parameters Dimension Drawing Selection Table Effect Of Elevation/Altitude On Products

-Adopting imported thermal micro-pressure core with sensitive pressure response.
-Range as low as ±25Pa
-Overload pressure up to 2Bar
-Accuracy up to 0.5% F.S, strong stability, good repeatability, easy to install, insensitive to the installation position.
-Strong anti-interference ability, optional isolated outputs

Measuring medium ①  Air or neutral gas
Pressure range ±25Pa, ± 50Pa,  ± 100Pa
Allowable overpressure 2Bar
Accuracy ±25Pa±1Pa
± 50Pa±1%F.S
± 100Pa±0.5%F.S
Operating temperature -20℃ ~70℃
Storage temperature -40℃ ~80℃
Temperature drift 0.03%FS/℃
Protection level IP65
Electrical connection four-wire system (telecommunications) six-wire system
Output signal RS-485 4 ~20mA/0 ~ 10VDC
Power supply ② 9-30VDC/24VAC±20% 12-30VDC/24VAC±20%
Pressure interface Metal Barbed Connector, 6.2mm 6-wire
Communication RS-485 standard interface, Modbus RTU protocol
Approval items RoHS certification, EU CE certification
Electromagnetic compatibility EN61326-1
1. Measuring medium contains air, oxygen (O2), nitrogen (N2), argon (Ar), carbon dioxide (CO2), if you need other measurement of other gases, please contact the supplier.
2. When RS485 output type (non-isolated) products use AC power supply, need to use isolated 24VAC power supply.

PN53- N A Details
PN53-           PN53 Series Micro Differential Pressure Transmitter
          -25 ~25Pa
          -50 ~50Pa
          -100~ 100Pa
    N       without display
    O       with display
      A     4 ~20mA and O ~ 10VDC (simultaneous output)
      E     RS-485 communication
      E1     RS-485 communication (with isolation)
* The selection table is for parameter selection only, and will be shipped with the corresponding code of the parameter.

The pressure measurement core is calibrated using an absolute pressure of 1 Bar (100000 Pa). As the core uses the thermal measurement principle, the altitude/height affects the sensor output and needs to be compensated for according to the following formula:
where ∆Peff is the compensated differential pressure; ∆Psensor is the current differential pressure output from the sensor; Pabs is the absolute pressure in the area where the sensor is mounted; the unit is Pa. Pabs is the absolute pressure value of the installation area of the sensor, which is generally the local atmospheric pressure; the unit is Pa.
△Peff=△Psensor×(100000(Pa))/Pabs
