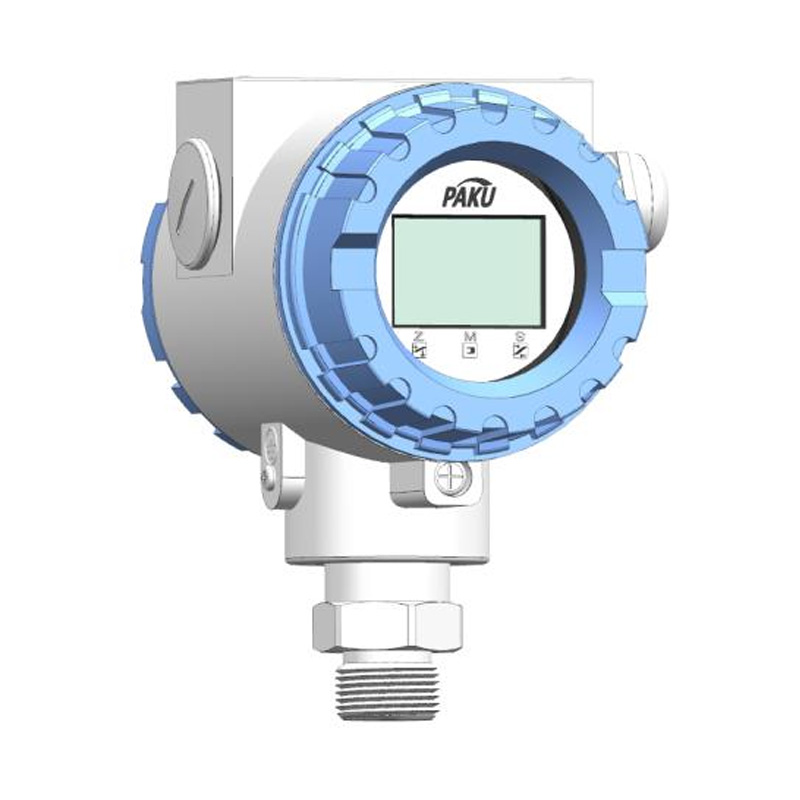

Product 3D Image Get couponsBased on ceramic capacitor technology, when the pressure applied to the ceramic capacitor increases, the capacitance value increases, and the capacitance value is proportional to the pressure value.
Strong overload capacity, good stability, due to the full range of 0.1% per year, strong anti-interference ability, extremely high accuracy and repeatability, up to 0.2, 0.5 level, ceramic measuring interface corrosion resistance. Flat film type can be used for viscous media. Zero point and full scale can be adjusted on site. With LED display.
Pneumatic and hydraulic, can be used in hydraulic and pneumatic systems. Applicable to the following industries: steel industry/mechanical equipment/air compression industry/refrigeration and air conditioning/lifting and traditional series.
- Range: See the table below
- Accuracy grade: 0.25%, 0.5%
- Hysteresis: ≤ ±0.01% full scale
- Repeatability: ≤0.1% full scale
- Stability: better than 0.01% per year
- Temperature effect: < ±0.02%FS/K
- Response time: < 5ms(10% to 90% range)
- Working voltage: 10... 36DC
- Load resistance: ≤1K

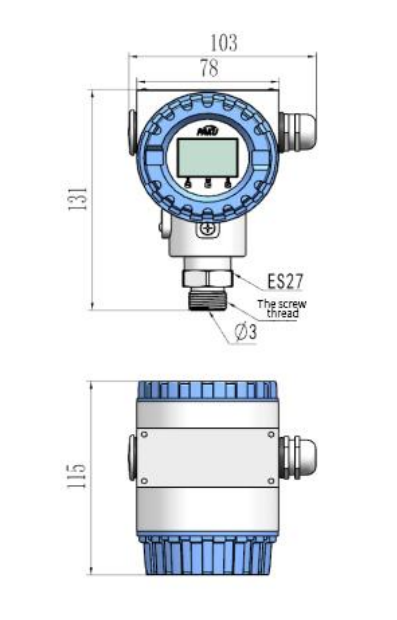

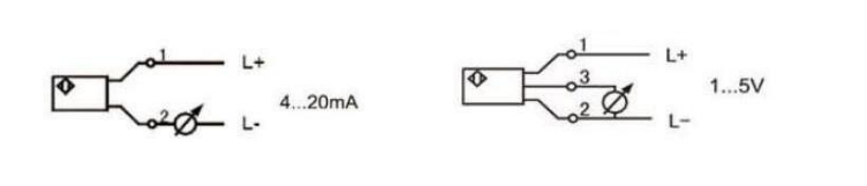

- Current consumption: signal current (two-wire), 8mA(three-wire)
- Ambient temperature: -30... 85 ℃
- medium temperature: -30... 80℃ storage temperature: - 30... 85 ℃
- Protection grade: IP65
Shell material: aluminum alloy
Standard range (relative pressure) |
code | Standard range (absolute pressure) |
code | |||||||||
-1...0bar | NO | 0...1bar | A1 | |||||||||
-1...1bar | N1 | 0...2bar | A2 | |||||||||
-1...3bar | N3 | 0...5bar | A5 | |||||||||
-1...24bar | N24 | 0...7bar | A7 | |||||||||
0...1bar | P1 | 0...10bar | A10 | |||||||||
0...2bar | P2 | 0...20bar | A20 | |||||||||
0...3.5bar | P3.5 | 0...35bar | A35 | |||||||||
0...5bar | P5 | 0...70bar | A70 | |||||||||
0...7bar | P7 | 0...100bar | A100 | |||||||||
0...10bar | P10 | 0...150bar | A150 | |||||||||
0...20bar | P20 | 0...175bar | A175 | |||||||||
0...35bar | P35 | 0...200bar | A200 | |||||||||
0...70bar | P70 | 0...275bar | A275 | |||||||||
0...100bar | P100 | 0...300bar | A300 | |||||||||
0...150bar | P150 | |||||||||||
0...175bar | P175 | |||||||||||
0...200bar | P200 | |||||||||||
0...275bar | P275 | |||||||||||
0...300bar | P300 | |||||||||||
* If the required range is not in the standard list, please indicate it when ordering. It can be calibrated according to customer requirements。 |
PN300- | P20 | A | 1 | 4 | M2 | specification | ||||||
PN300- | PN300 series universal pressure transmitter |
|||||||||||
P20 | Range code (available from the range code table) |
|||||||||||
Customized range: user-defined | ||||||||||||
A | no display | |||||||||||
B | With LED display header | |||||||||||
1 | Accuracy grade: 0.25% | |||||||||||
2 | Accuracy grade: 0.5% | |||||||||||
4 | 4-20mA analog output | |||||||||||
1 | 1-5V analog output | |||||||||||
0 | 0-10V analog output | |||||||||||
G2 | Connection: G1/2 female thread | |||||||||||
M2 | Connection mode: M20*1.5 external thread |
|||||||||||
Custom thread | ||||||||||||
* The selection table is only available for parameter selection, and the corresponding code is delivered. |
