Product introduction

FND display, good visual effect
420mA, 15V, 05V, 010V analog output
NPN, PNP transistor output
Panel-mounted specific appearance (48MM×48MM)
Multiple MENU setting functions
Easy to use
RS485 (MODBUSRTU) communication function

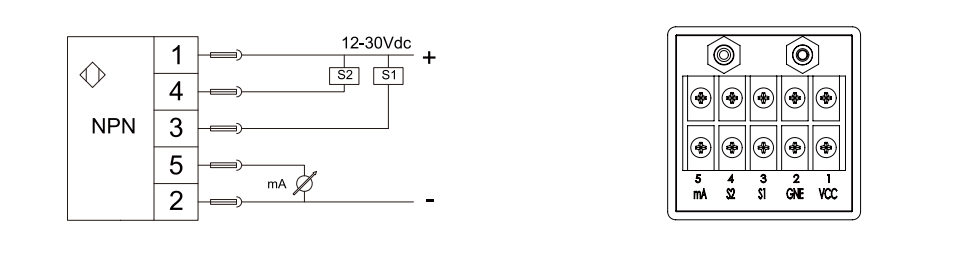

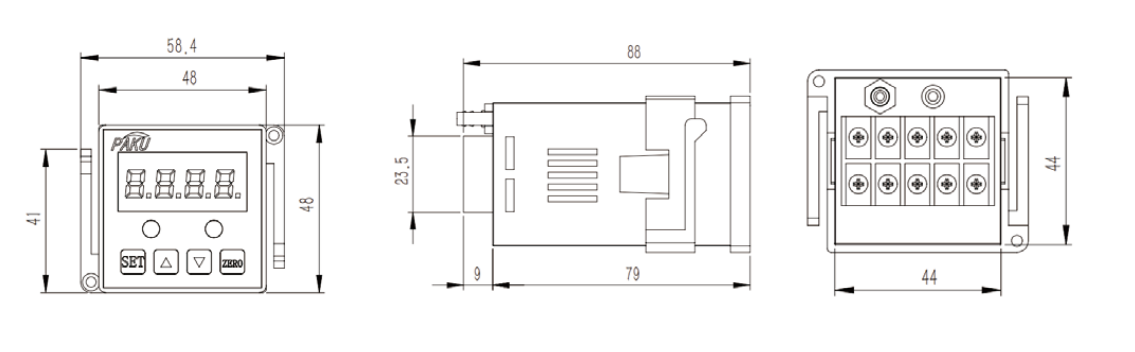

Technical Parameters Panel Diagram Wiring Diagram Dimension Diagram Selection Table
Burst Pressure (Minimum) 2×F.S
Accuracy ±1%FS
Applicable Medium Air
Power Supply Voltage DC 24V
Output 420mA
Transistor Output NPN
Current Consumption 60mA (Max)
Temperature Range -2060°C (non-freezing)
Operating Humidity 35~85%
Pressure Port 6×40 tube
Material BODY:ABS
Repeatability ±1%F.S
Response Time 80ms

PN55- A B L

Detailed

PN55-

PN55 Series Microp Differential Pressure Transmitter

  A

FND Display



NPN Output



PNP Output



Relay Output



Range: -500...500Pa



Custom Range

        B

2 Switch Outputs + 1 Analog 4-20mA Output

        F

RS485 Communication

          L

Connection Air Pipe Fitting: Stainless Steel 316L

          H

Connection Air Pipe Fitting: Nickel-Plated Brass

* The selection table is for parameter selection only. Products are delivered with codes corresponding to parameters.
