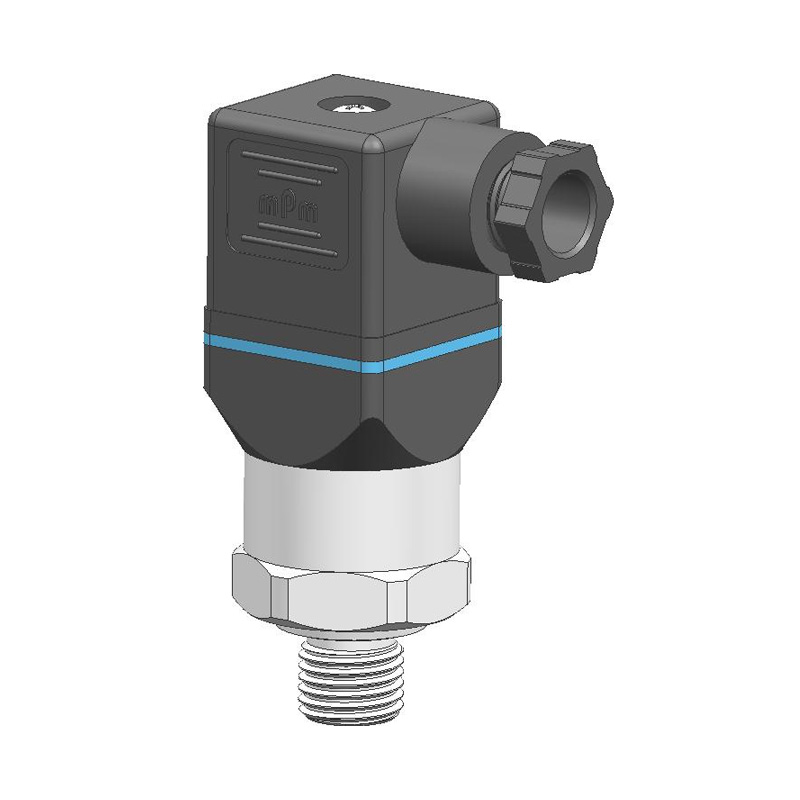

Universal Compact Pressure Transmitter - PN50D

Product introduction

Compact diffused silicon pressure transmitter, wide choice, compact structure, suitable for harsh environment, high reliability. Wide range (0... 1000bar), which can be used to measure gauge pressure and absolute pressure. Suitable for mechanical equipment, hydraulic pneumatic device, locomotive, pressure control.

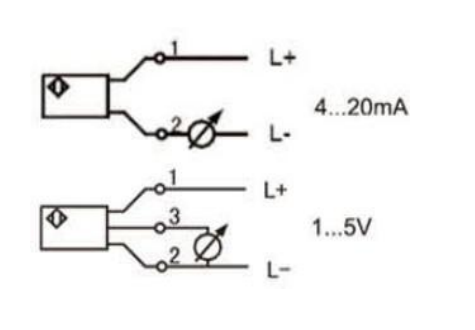

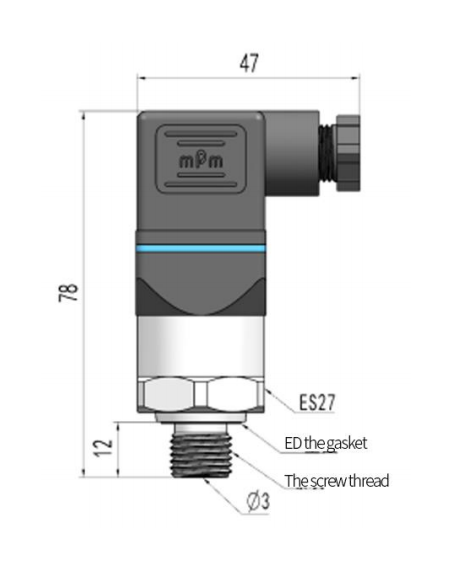

Technical Specification Wiring Diagram Dimension Figure Range Table Selection Table Optional Display Header

- Measurement range: customized according to user requirements
- Overload range: 1.5 times of measuring range
- Accuracy: 0.25%, 0.5%
- linearity: ±0.2%
- Repeatability: ≤ ± 0.1fs
- Stability: no more than the accuracy of the transmitter within 1 year
- Temperature effect: < ±0.02%FS/K
- Response time: < 1ms(10... 90%FS)
- Power supply: 10... 30VDC(3-wire 14... 30V)
- load: ≥10KΩ(0...10V), ≥5KΩ(1...5V) ≤( UB-10)V,0.02A(4...20mA)
- Power consumption: Signal current (2-wire), 8mA(3-wire)
- Electrical protection: overload/reverse phase protection
- Ambient temperature: -30... 85 ℃
- medium temperature: -25... 80 ℃
- Storage temperature: -30... 100 ℃
- Protectiongrade: IP65
- Shell material: 304 stainless steel
- Liquid material: 304 stainless steel
- Sealing:fluorine rubber
- Weight: 0.10kg

STANDARD     RANGE Gage pressure code Absolute pressure code
0--1bar GB001 AB001
0--2bar GB002 AB002
0--4bar GB004 AB004
0--10bar GB010 AB010
0--20bar GB020 AB020
0--40bar GB040 AB040
0--60bar GB060 AB060
0--100bar GB100 AB100
0--160bar GB160 AB160
0--200bar GB200 AB200
0--250bar GB250 AB250
0--400bar GB400 AB400
0--600bar GB600 AB600
PN50D- GB... C G4 H B    B specification
PN50D-               PN50D series universal pressure
transmitter
  GB...             Gauge range: bar (unit), refer to range table
  AB...             Absolute pressure range: bar (unit), refer to
range table
  GP...             Optional range: kPa (unit), user defined
                Custom range
    B           Accuracy class: 0.25
    C           Accuracy grade: 0.5
      N4         Interface thread: NPT1/4
      N2         Interface thread: NPT1/2
      G4         Interface thread: G1/4
      G2         Interface thread: G1/2
      M2         Interface thread: M20*1.5
                Custom thread
        H       external thread
        K       internal thread
              4-20 ma output
              1-5 v output
              0 to 10 v output
            A   Direct line
            B   Hersman joint
              B No damper, no heat sink
              Z Damper (optional)
              S Heat sink (optional)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
F10- A specification

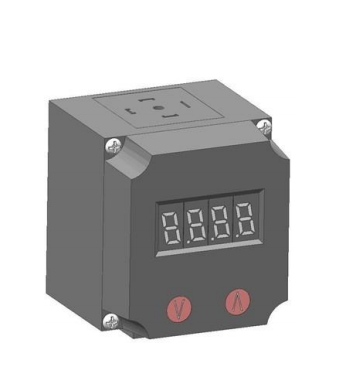

F10-   Display meter
  A 4-20 ma output
  B 1-5 v output
  C 0 to 10 v output
* The display represents an electronic device used for digital display of a sensor
signal,
The desired display range can be set by setting button
 * Free programming through an unprocessed processor
 * No on-site setup required
 * With 4... 20mA output sensor
 * Protection class IP55
