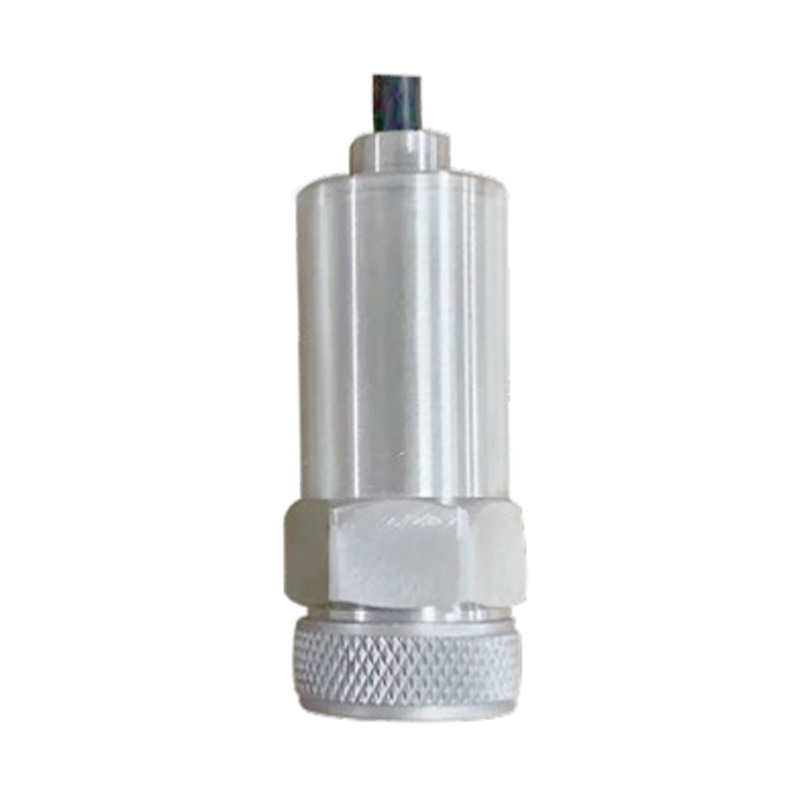

Piezoelectric integrated vibration transmitter-PN530

PREV: Differential Pressure Transmitter-PN55
NEXT: Pressure (Liquid Level) Transmitter-PN52B

Product introduction

The PN530 Piezo Integrated Vibration Transmitter has a built-in piezoelectric element that senses the acceleration of the vibration and converts the RMS value of the acceleration or the integrated RMS value of the velocity into a 4-20mA current output of the corresponding range through a high precision integrated circuit, which is easy to be remotely transmitted for display and control; it is very suitable for connecting to DCS, PLC, and data acquisition systems.
PN530 Piezoelectric Integrated Vibration Transmitter Application:
Used for on-line vibration monitoring of turbines, ventilators, blowers, fans, electronic motors, pumps, centrifuges, separators, generators, turbines, and similar oscillating machinery and equipment.
Features of the PN530 Piezo Integrated Vibration Transmitter:
-Two-wire loop, the transmitter is easier and more economical to use and maintain;
-Fault-tolerant technology, loop two-wire polarity arbitrary connection;
Low power consumption, high stability measurement line, to ensure that the vibration value linearly corresponds to the high-precision current output;

Technical Parameters Make Use Of Selection Table

Power supply: +24±10%Vdc power supply, maximum power consumption 0.5W; -Measuring range: 0～20g or 0～200mm/s; (range optional)
-Measuring range: 0～20g or 0～200mm/s; (range optional)
-Frequency range: 10~1000Hz.
-Sensitive direction: axial, any direction/angle mounting;
-Lateral sensitivity: ≤3%; -Transverse sensitivity
-Electrical isolation: 500VRMS, circuit and shell isolation;
-Current output: standard two-wire 4～20mA output;
-Accuracy: ±3%; (Load maximum: 500Ω)
Impact limit: 1000g; -Mass: 0.2Kg
-Mass: 0.2Kg.
-Dimension: 24*60mm
Mounting: M10*1.5 or M8*1.25 screws
-Use environment: -30～100℃; -Relative humidity: not more than 95%.
-Relative humidity: not more than 95%, no condensation.

-Before using the vibration transmitter, check whether the wiring is intact, and then the transmitter should be fixed at the measured point;
-Confirm that the vibration transmitter's operating power supply should be +24V±10%VDC; -The vibration transmitter should be powered up, and the output current should be about 4.00 mA without vibration.
-When the vibration transmitter is powered on, the output current should be about 4.00 mA when there is no vibration;
-When the vibration transmitter is powered on, the output current should be about 4.00 mA when there is no vibration;

PN530	-	A	1	A	Details
PN530	-				PN530 Series Piezo Integrated Vibration Transmitter
		A			Range：1g
		B			Range：2g
		C			Range：10mm/s
		D			Range：20mm/s
			1		Wire length: 1m
			2		Wire length: 2m
			3		Wire length: 3m
			5		Wire length: 5m
				A	Screw: M10 x 1.5
				B	Screw: M8 x 1.25
				C	Screw: Magnetic Holder
					Screw: Other
*The selection table is for parameter selection only, and is shipped with the corresponding code of the parameter.
