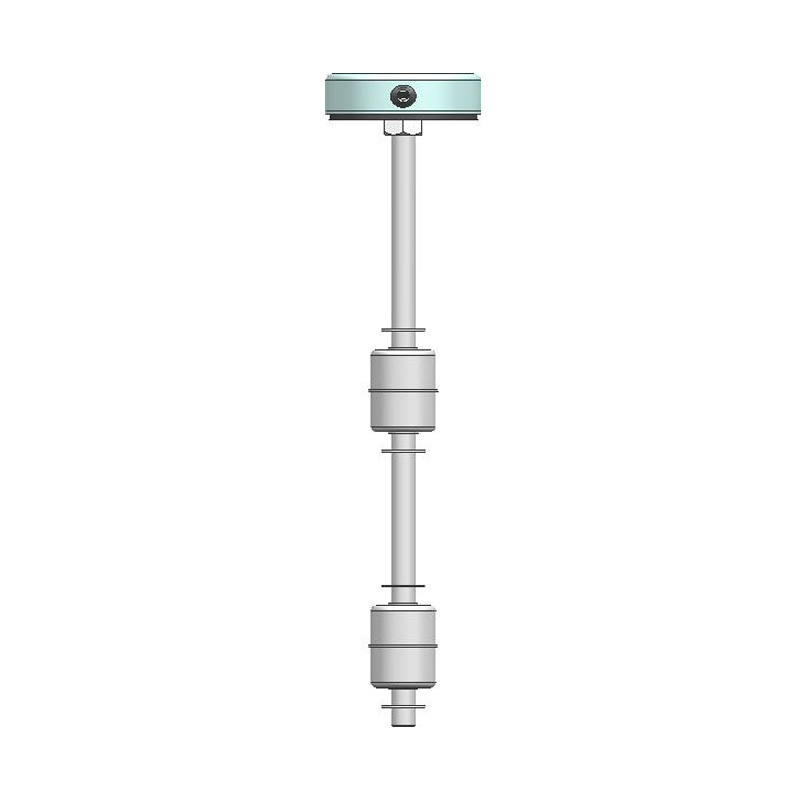

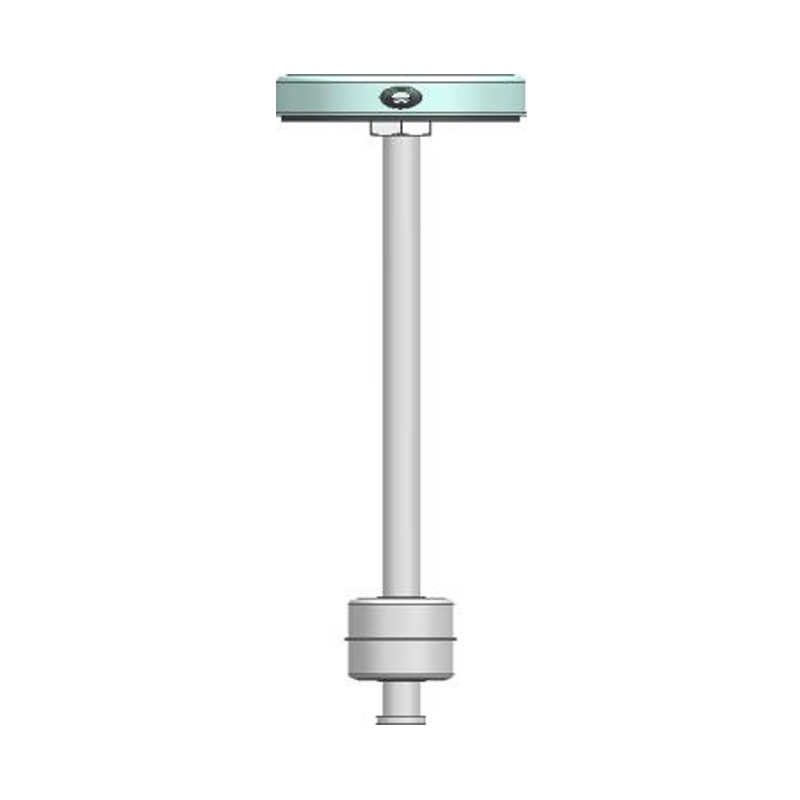

Product 3D Image
Get coupons

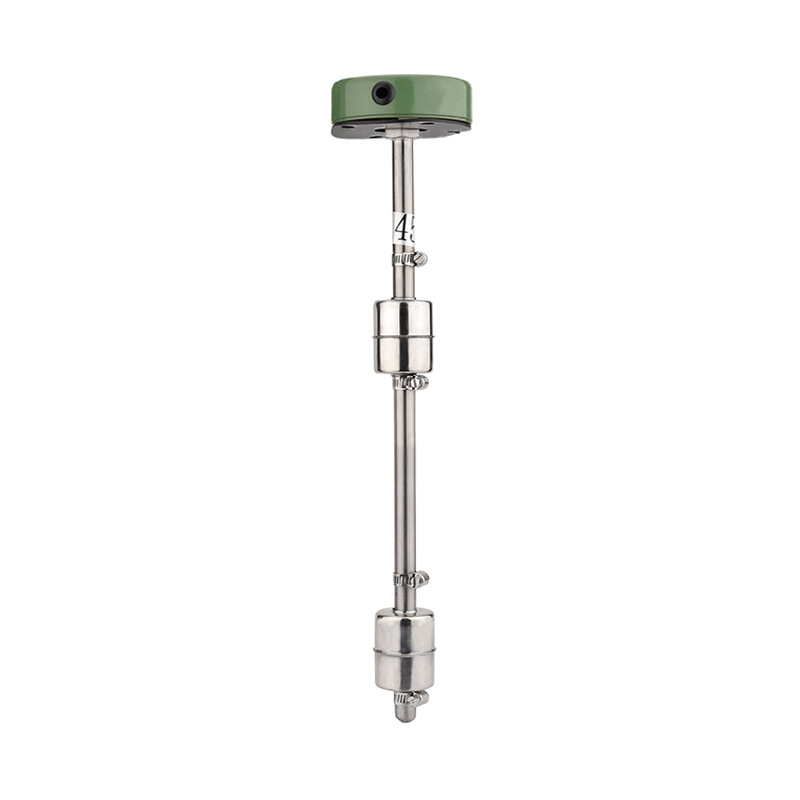

New float type liquid level switch-LF110

Product introduction

This series is a new type of electric signal control device for liquid level. It is mainly used for automatic control or alarm of liquid level and liquid source motor in the tank.

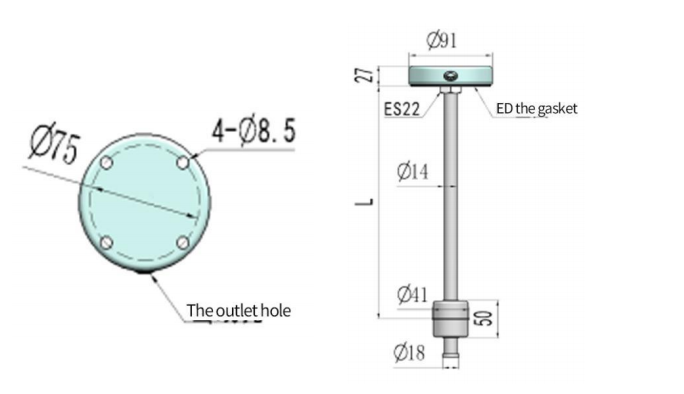

Technical Specification Dimension Figure Selection Table

- Compact structure
- Control sensitive
- Simple installation
- Can be customized size

LF110 - A D 250  R 500  R D specification
LF110 -               LF110 series float type level switch
  A             monosfera
  B             Multi-ball
    D           power supply:24VDC
    W           power supply:220VAC
      L1         Measuring range: specially
customized L1= mm
      250          measuring range:250mm
      500          measuring range:500mm
        R       Normally open + normally closed
        K       normally open
        B       normal close
          L2     Measurement range: special
custom L2= mm
          500      Measuring range: 500mm
          750      Measuring range: 750mm
            R   Normally open + normally closed
            K   normally open
            B   normal close
              D flanged joint
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the code.
