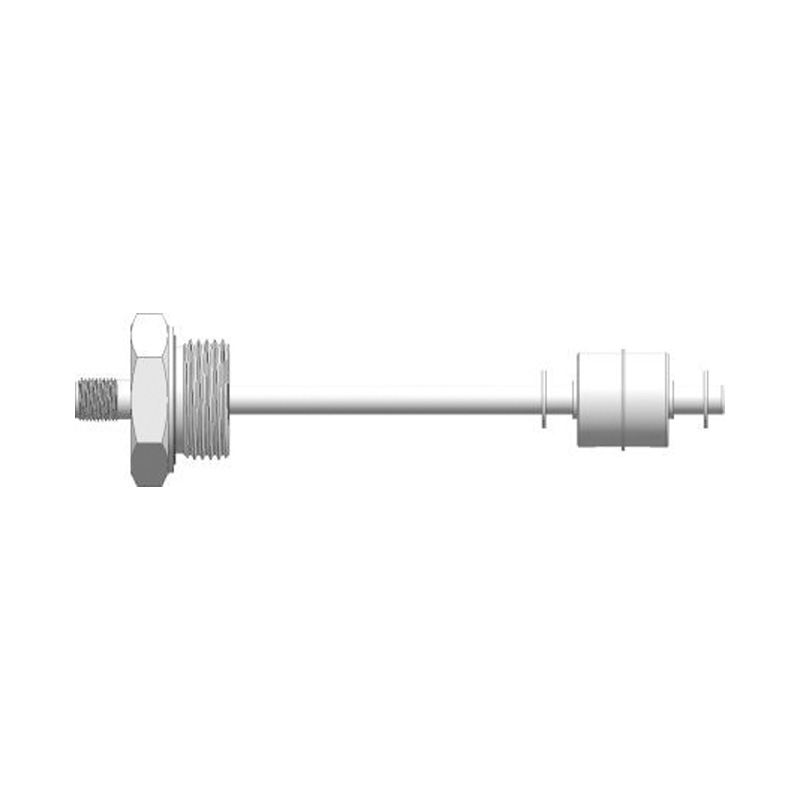

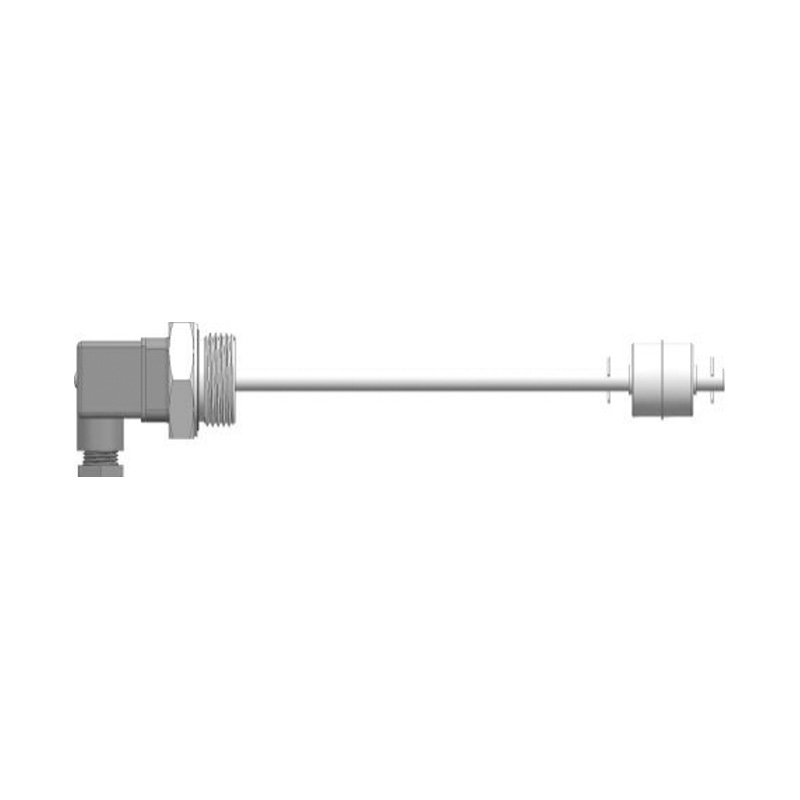

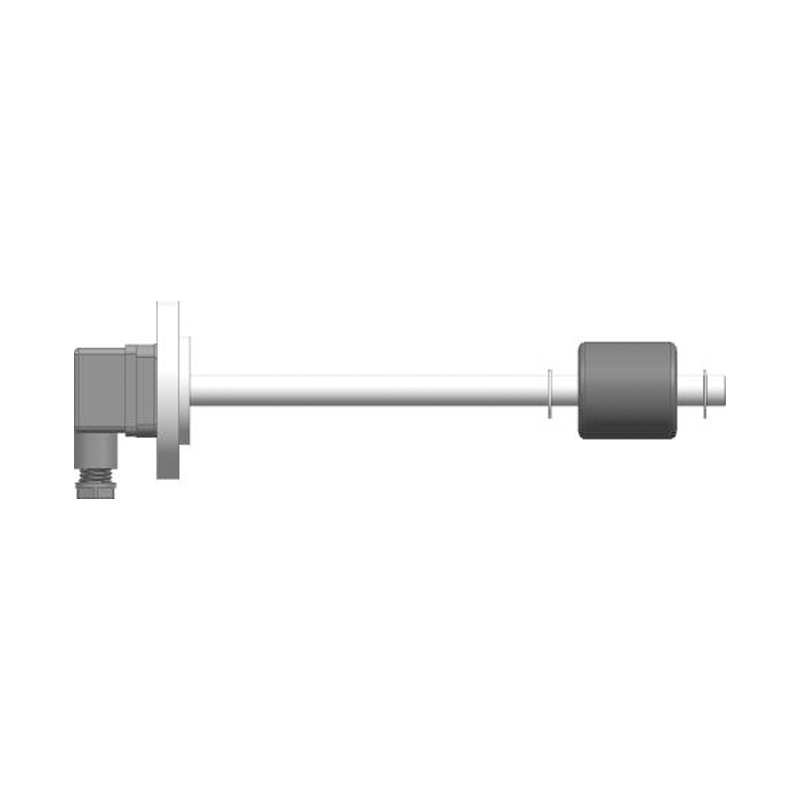

Product 3D Image
Get coupons

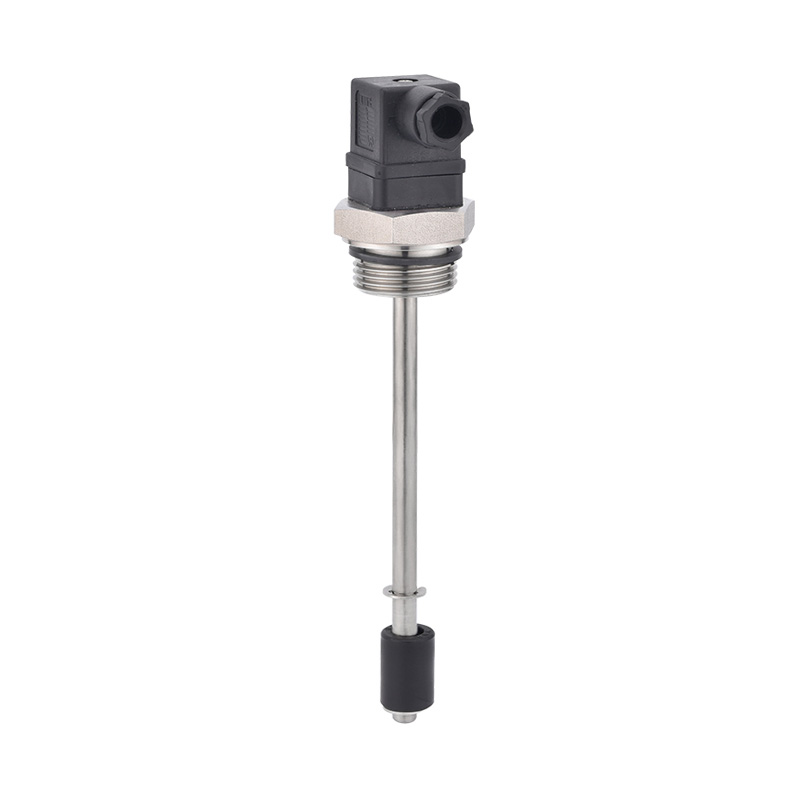

Float Type Liquid Level Switch-LF20D

Product introduction

In the sealed non-magnetic stainless steel is equipped with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.
Can be installed at the top or bottom, compact and firm structure, reliable performance, good repeatability, long life, high temperature resistance.

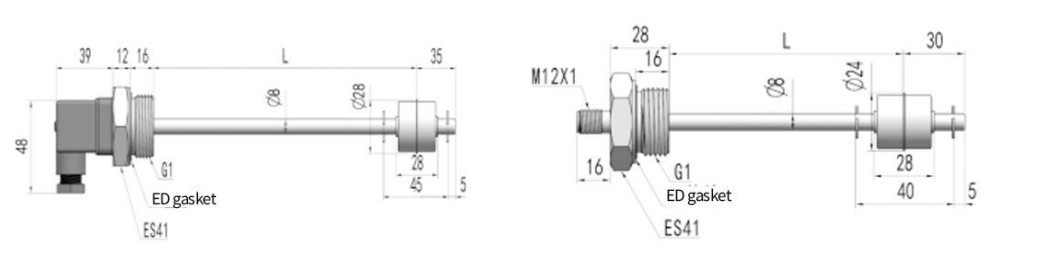

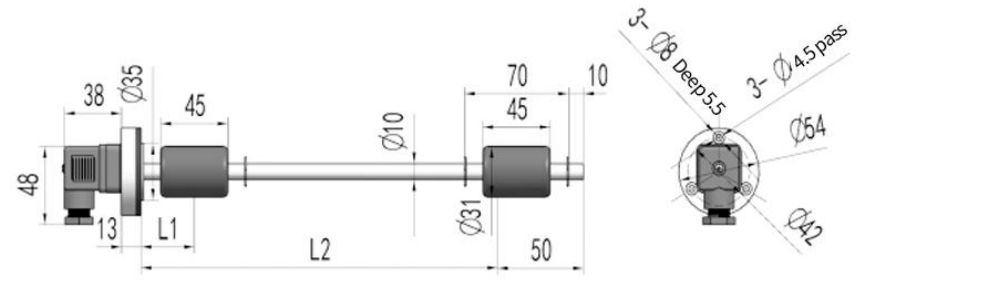

Application Technical Specification Dimension Figure.(Hirschmann flange) Dimension Figure2.(Hertzmann Thread) Selection Table

Used for liquid level measurement of stainless steel float density ≥0.75g/m³ ; NBR float density < 0.75g/m³

- Maximum pressure: 5bar
- Medium temperature: -10℃ ... 130℃ (can be customized high temperature)
- Contact type: Dry reed switch
- Protection grade: IP65
- Material:stainlesssteel

LF20D - A A 250  N 500  F A D X B specification
LF20D -                     LF20D Series Float Level
Switch
  A                   Normal temperature (0-100℃)
  B                   High temperature models
    A                 monosfera
    B                 Multi-ball
      L1               Measuring range: specially
customized L1= mm
      250                Measuring range: 250mm
      500                Measuring range: 500mm
        R             Normally open + normally
closed (single ball optional)
        N             normally open
        F             normal close
          L2           Measurement range: special
custom L2= mm
          500            Measuring range: 500mm
          750            Measuring range: 750mm
            N         normally open
            F         normal close
              A       stainless steel ball
              B       NBRball
                      Custom float
                D     flanged joint
                G     G1 female thread connection
                  X   Installation connection material:
stainless steel
                  L   Installation connection material:
alumina
                    B Hirschman
                    C M12 connectors
    * The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the
code.
