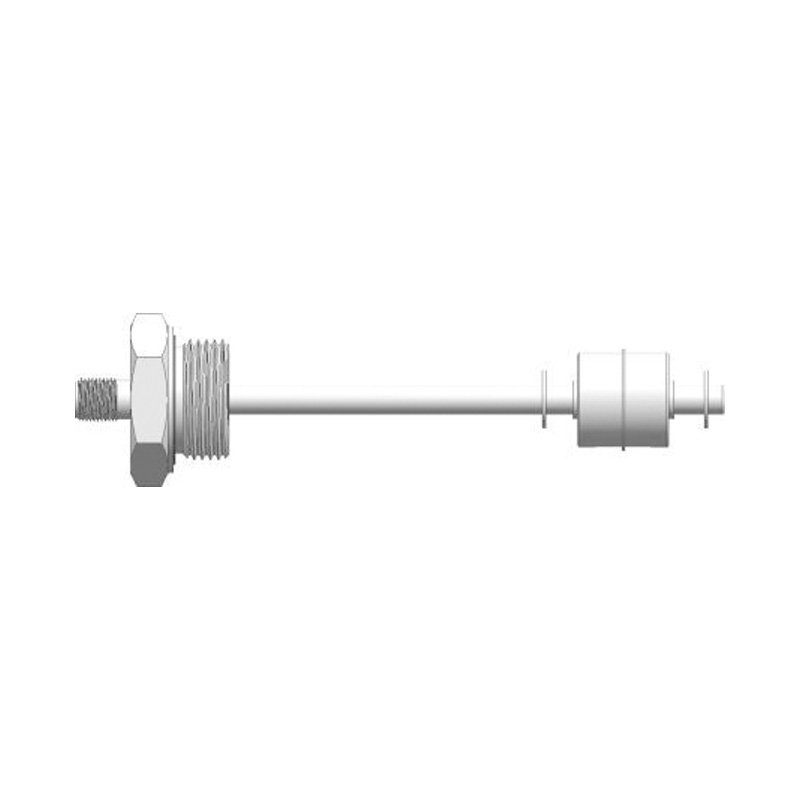

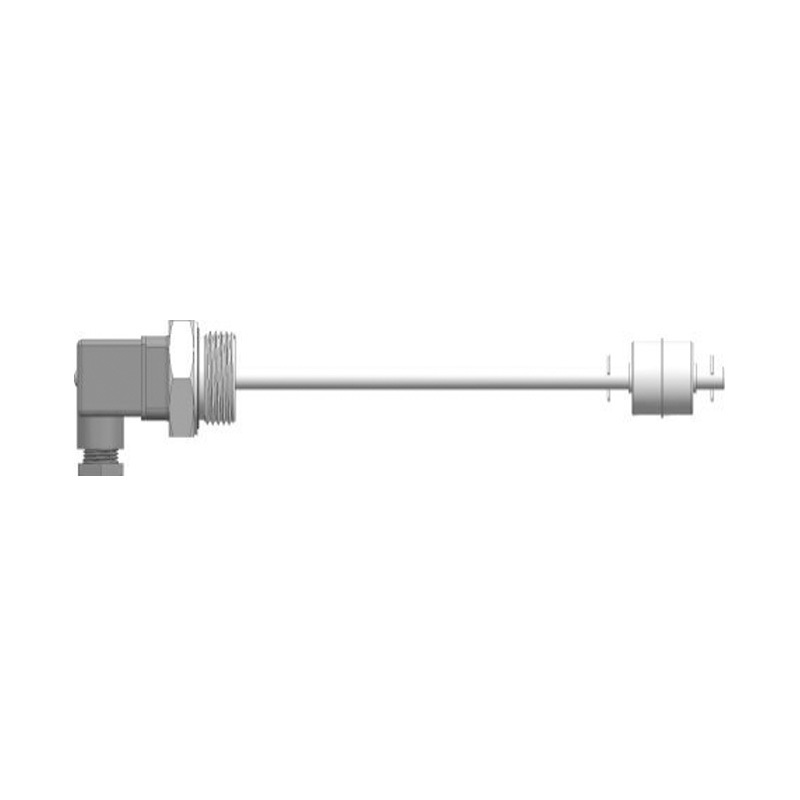

Product 3D Image
Get coupons

Float Type Liquid Temperature Switch-LF200

Product introduction

In the sealed non-magnetic stainless steel is equipped with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal. At the same time, the temperature probe at the end of the control rod can also be used to detect the temperature of the liquid level.

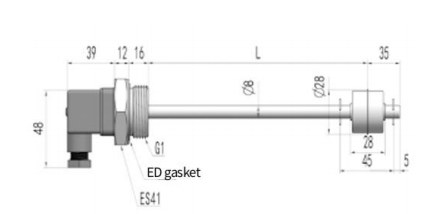

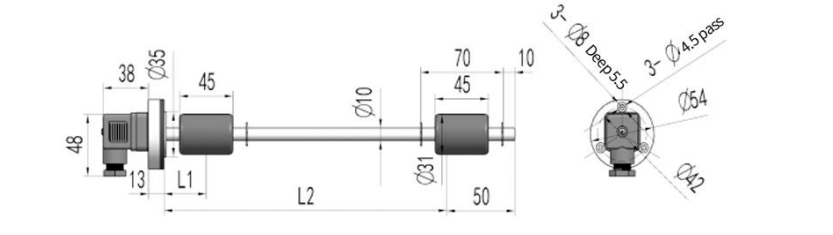

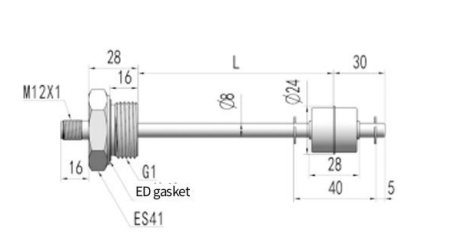

Application Technical Specification Dimensions Figure1.(Hertzmann Thread) Dimensions Figure2(Hersman) Size3.(Paragraph connectors) Selection Table

Used for liquid level measurement with density ≥0.75g/m³

- Maximum pressure: 5bar
- Medium temperature: -10℃ ... 130 ℃
- Contact type: Dry reed switch
- Protection grade: IP65
- Material:stainless steel

LF200 - A A 250  N 500  F A D X N5
0
X B specification
LF200 -                         LF200     series     float     type     liquid
temperature switch
  A                       Normal temperature (0-100℃)
  B                       High temperature models
    A                     monosfera
    B                     Multi-ball
      L1                   Measuring  range:  specially  customized
L1= mm
      250                    measuring range:250mm
      500                    measuring range:500mm
        R                 Normally open + normally closed (single
ball optional)
        N                 normally open
        F                 normal close
          L2               Measurement range: special custom L2=
mm
          500                measuring range:500mm
          750                measuring range:750mm
            N             normally open
            F             normal close
              A           stainless steel ball
              B           NBRball
                          Custom float
                D         flanged joint
                G         G1 female thread connection
                          Custom thread
                  X       Installation connection material: stainless
steel
                  L       Installation connection material: alumina
                    N     Temperature normally open output, such
as 50 degrees normally open, selection:
N50
                    F     Temperature   normally   closed   output,
such  as  50  degrees  normally  closed,
selection: F50
                      X   Probe rod material: stainless steel
                        A Direct line
                        B hersman
                        C M12 connectors
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the code.
