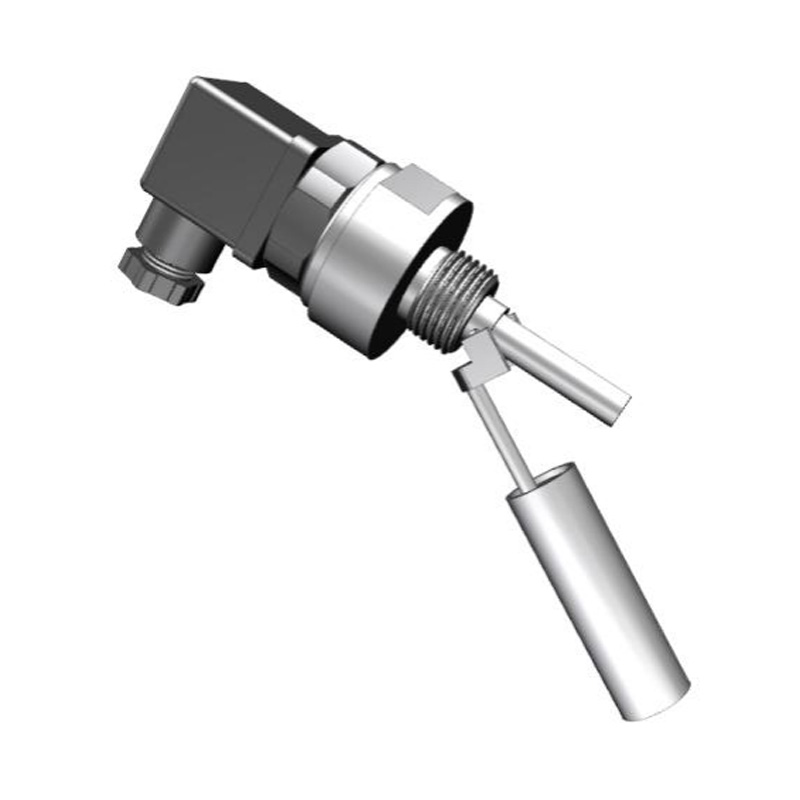

Float Level Switch-LF04

Product introduction

In the sealed non-magnetic stainless steel tube is provided with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.
Can be installed at the top or bottom, compact and firm structure, reliable performance, good repeatability, long life, high temperature resistance.

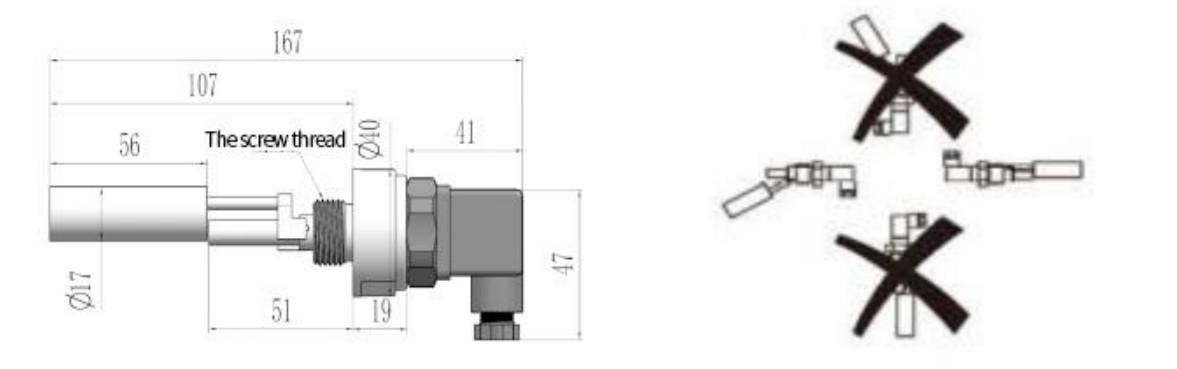

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table

Used for liquid level measurement with density ≥0.75g/cm³

- Maximum pressure: 5bar
- Medium temperature: -10℃--130℃
- medium density: ≥0.75g/cm3

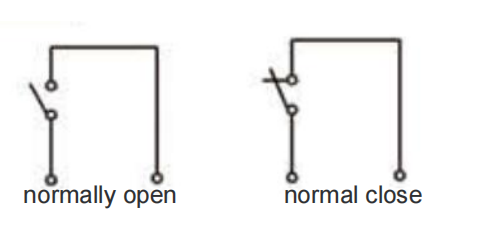

- Output: Normally open or normally closed
- Contact type: Dry reed switch
- contact capacity:250VAC.0.5.A
- Protection grade: IP65
- Wiring mode: directly attached wire
- Material: stainlesssteel

LF04- A H G2 1 R K   specification
LF04-               LF04 series float type level switch
  A             ndard options
  B             Add long style (customized according to
    H           external thread
      R2         Interface thread:R1/2
                Custom thread
              Hersman goes in
              M12x1 connector
          R     Normally open +normally closed
            K   stainless steel housing
*The selection table is only available for parameter selection,and the corresponding code is delivered.
