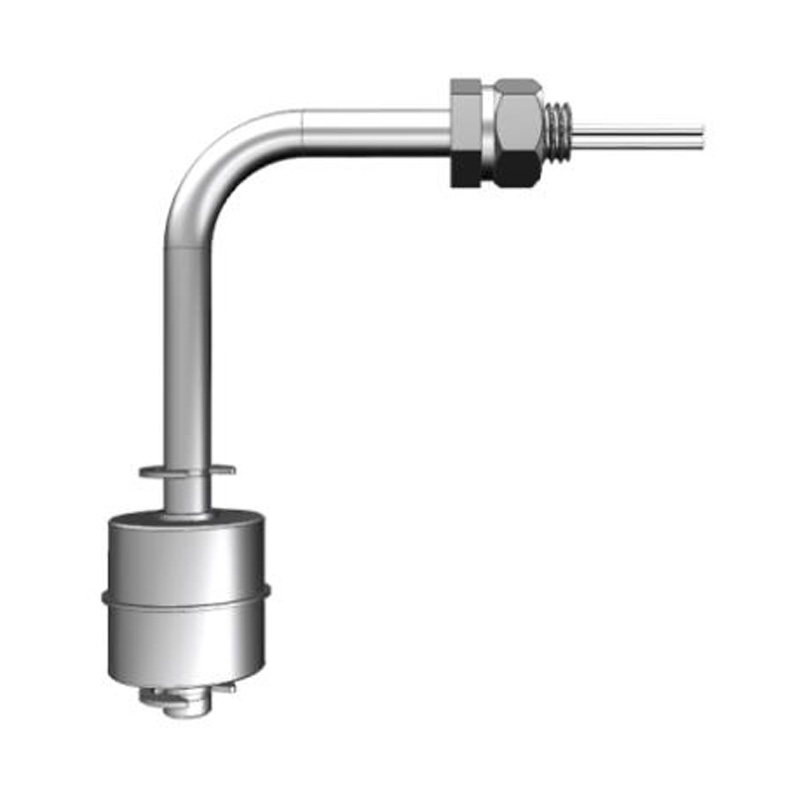

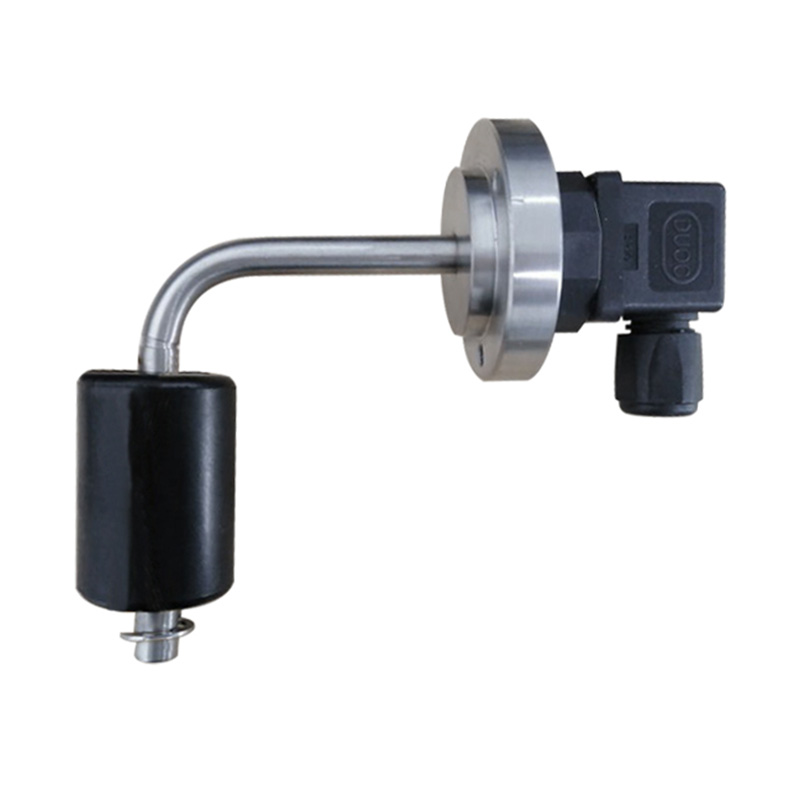

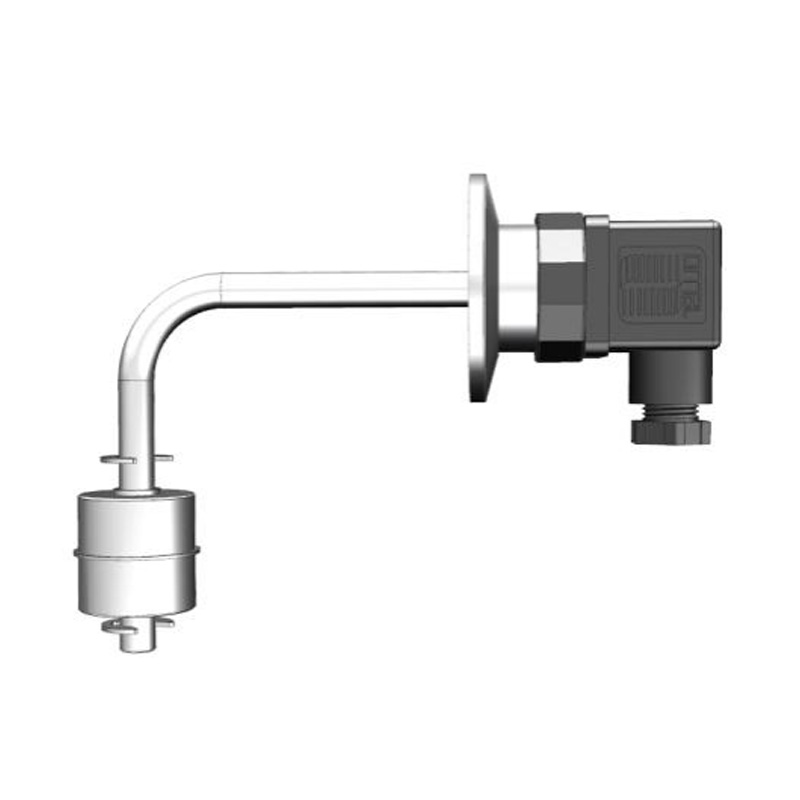

Compact float level switch-LF03

Product introduction

In the sealed non-magnetic stainless steel tube is provided with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.

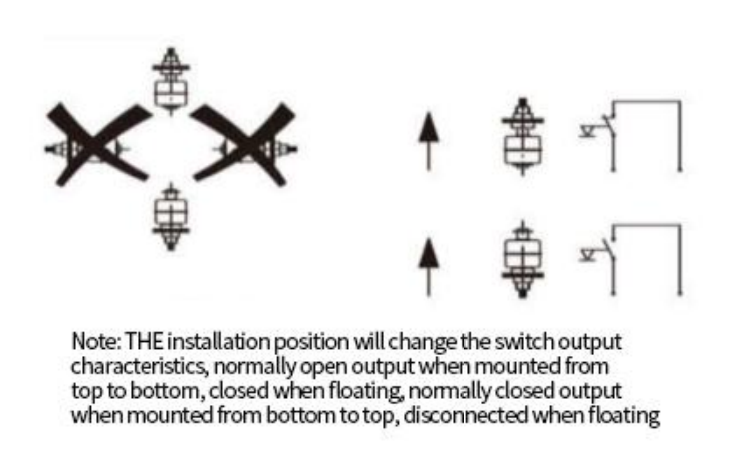

Can be installed at the top or bottom, compact and firm structure, reliable performance, good repeatability, long life, high temperature resistance.

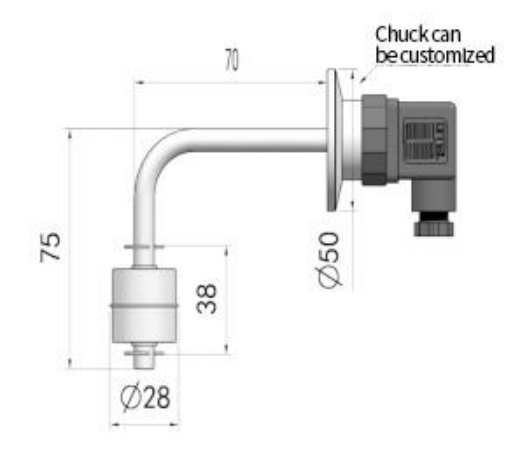

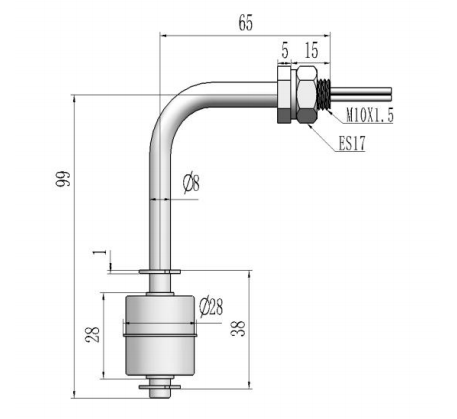

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table Installation Instructions

Used for liquid level measurement with density ≥0.75g/cm³

- maximum pressure:5bar
- medium temperature:-10℃-130℃
- medium density: ≥0.75g/cm3

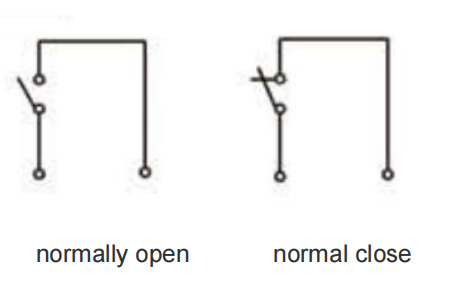

- Output: Normally open or normally closed
- Contact type: Dry reed switch
- contact capacity:250VAC.0.5.A
- Protection grade: IP65
- Wiring mode: directly attached wire
- Material: stainlesssteel

LF03- A M1 K X F A

specification

LF03-













LF03  Series  Float  Level Switch



A











Built-in Type





M1









Interface thread: M10*1





F









flanged joint







K







stainless steel housing









X





Floatmaterial:304 stainless steel











N



normally open











F



normal close













A

Direct line













B

Hersman goes in

*  The  type  selection  table  is  only  for  technical  selection,  and  the corresponding type of the factory model is reflected by the code.
