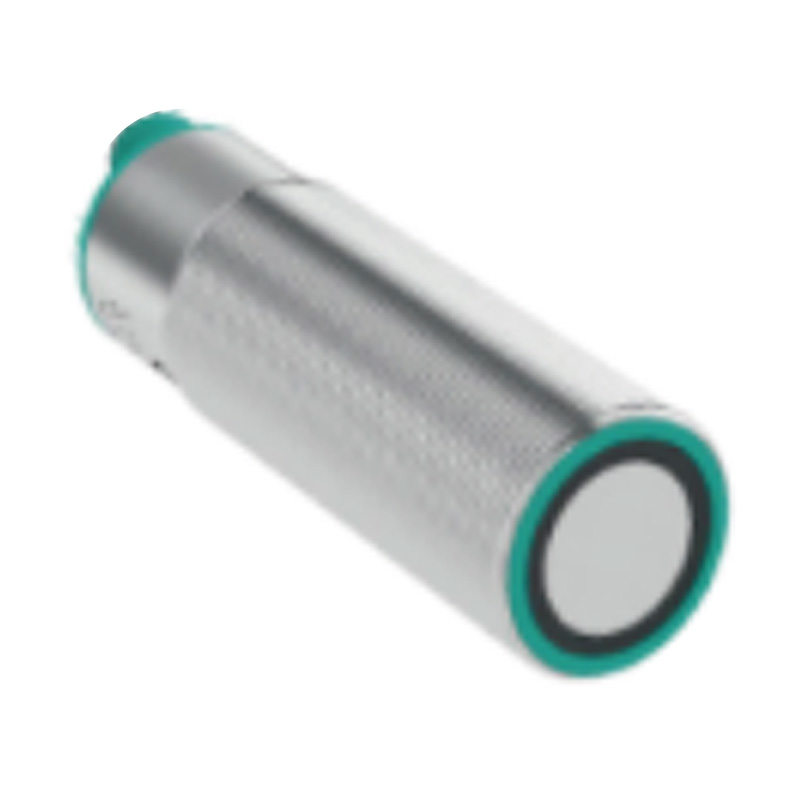

Product 3D Image
Get coupons

Ultrasonic Sensor - LF91B

Product introduction

Ultrasonic sensors are mainly composed of a transmitting part, a receiving part, a control part and a power supply part.
Among them, the transmitting part consists of a transmitter and a transducer, and the transducer can convert the energy generated when the piezoelectric wafer is vibrated by the voltage excitation into ultrasonic waves, and the transmitter will transmit the generated ultrasonic waves; the receiving part consists of a transducer and an amplifier circuit.
Receiving part consists of transducer and amplifier circuit, the transducer receives the reflected ultrasonic waves, due to receive ultrasonic waves will produce mechanical vibration, the transducer can be converted to mechanical energy into electrical energy, and then by the amplifier circuit to amplify the electrical signal generated;
The control part is the control of the whole working system, first control the transmitter part of the transmitter ultrasound, and then the receiver part of the control, to determine whether the received ultrasound is emitted by their own ultrasound, and finally identify the size of the received ultrasound;
The power supply is the power supply for the whole system. In this way, under the action of the power supply and under the control of the control part, the transmitter and the receiver work together to fulfil the required functions of the sensor.

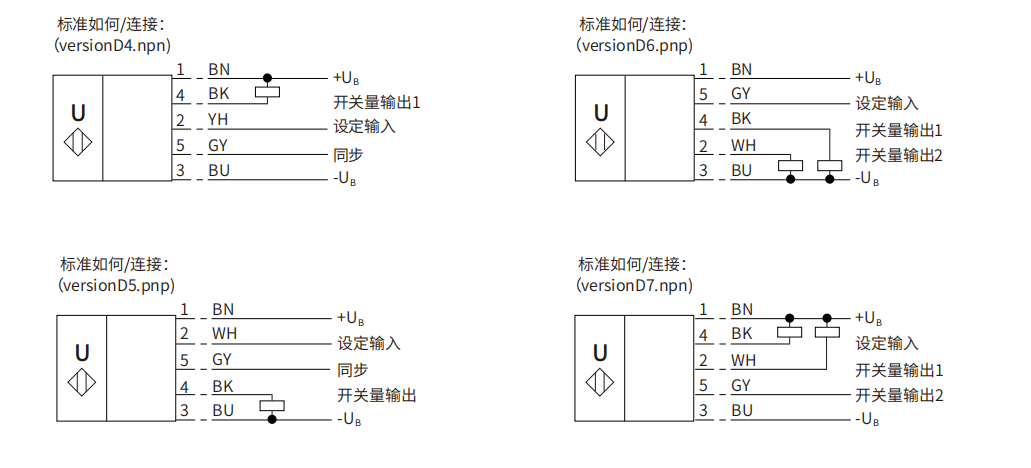

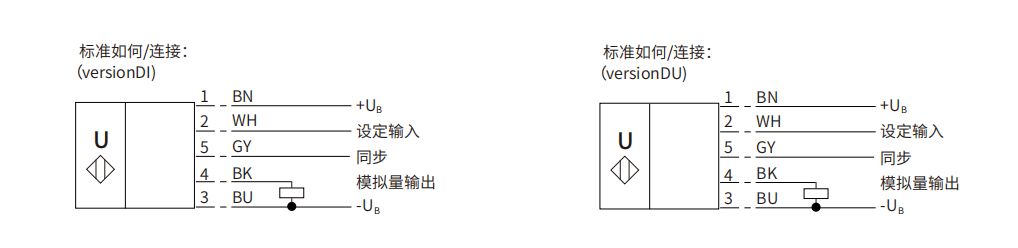

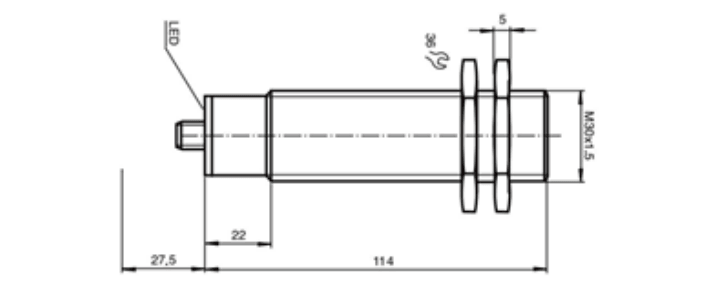

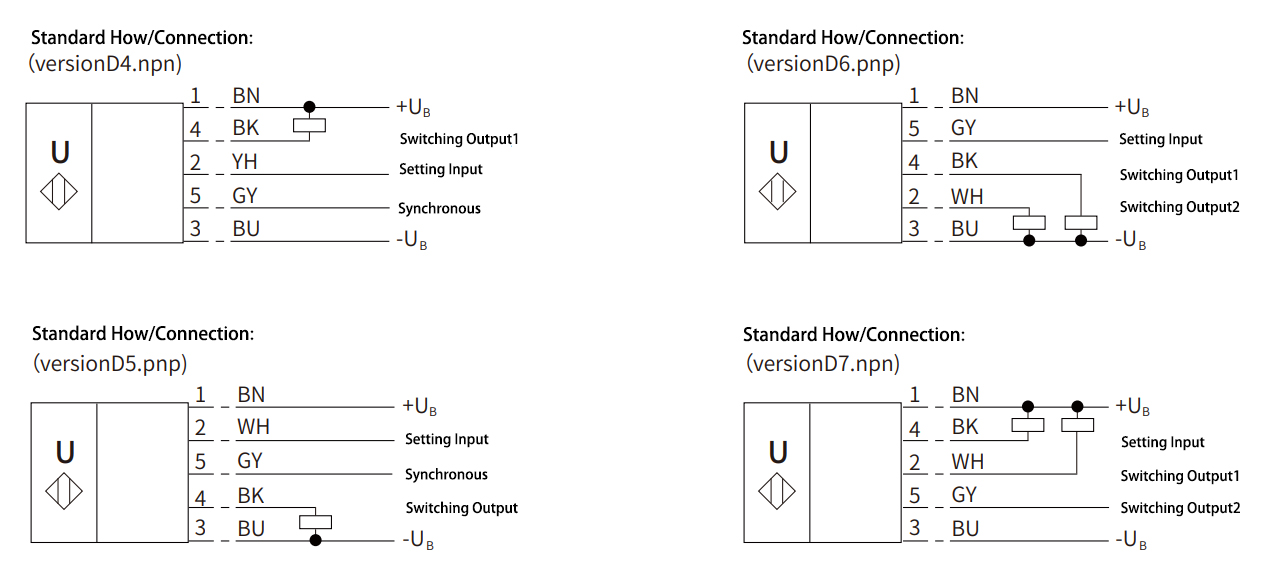

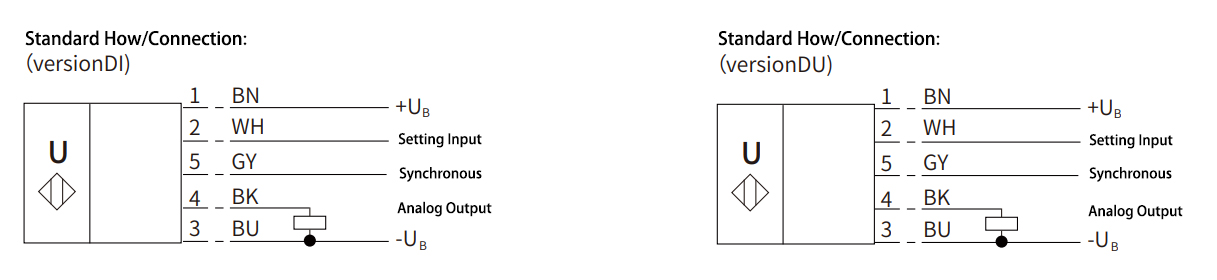

Switching Electrical Diagrams Analogue Electrical Diagrams Dimension Drawing Technical Parameters, Selection Table

Product Model LF91B-AD4-H5 LF91B-BD4-H5 LF91B-AD6-H5 LF91B-BD6-H5 LF91B-ADI-H5 LF91B-BDI-H5
LF91B-AD5-H5 LF91B-BD5-H5 LF91B-AD7-H5 LF91B-BD7-H5 LF91B-ADU-H5 LF91B-BDU-H5
Detection Range 50...500mm 80...2000mm 50...500mm 80...2000mm 50...500mm 80...2000mm
Detection Blind Zone 0...50mm 0...80mm 0...50mm 0...80mm 0...50mm 0...80mm
Transducer Frequency Approx. 380KHz Approx. 180KHz Approx. 380KHz Approx. 180KHz Approx. 380KHz Approx. 180KHz
Response time Approx. 50ms Approx. 150ms 21ms minimum 65ms minimum 21ms minimum 65ms minimum
Switching Frequency Standard Target Board ≤10 Hz ≤3.3 Hz ≤7 Hz ≤2.5 Hz 100mm* 100mm
Output type D4 NPN Normally open/closed selectable D6 two switches PNP normally open / normally closed optional DI 4...20mA short circuit/overload protection
D5 PNP Normally open/closed selectable D7 two switches NPN normally open/closed selectable DU   0-10V
Rated Operating Current 200mA Short circuit protection/overload protection 2* 100mA short-circuit protection/overload protection DI  ≤45 mA            DU  ≤50 mA
Operating Voltage 10-30V DC 10% ripple 15-30V DC 10% ripple
Repeatability ≤0.5% ≤0. 1% ±0. 1% of full scale value
Range Adjustment Furthest and nearest ranges adjustable via adjustment cable
Protection class IP65
Connection method H5 (5-pin) M12 cable / 2 m PVC cable
LED yellow Bright : Switching status output Flashing : Setting
LED red Operating status: Error Setting status: No target detected
