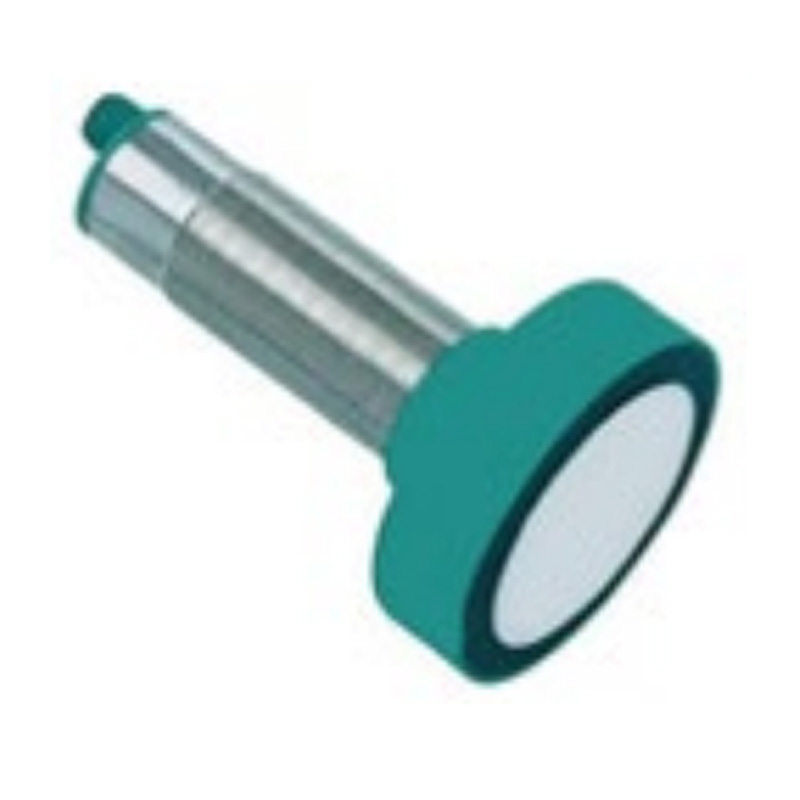

Ultrasonic Sensor - LF91C

Product introduction

The ultrasonic transducer is mainly composed of a transmitting part, a receiving part, a control part and a power supply part.
Among them, the transmitting part consists of a transmitter and a transducer, and the transducer can convert the energy generated when the piezoelectric wafer is vibrated by voltage excitation into ultrasonic waves, and the transmitter will transmit the generated ultrasonic waves;
Receiving part consists of transducer and amplifier circuit, the transducer receives the reflected ultrasonic waves, due to receive ultrasonic waves will produce mechanical vibration, the transducer can be converted to mechanical energy into electrical energy, and then by the amplifier circuit to amplify the electrical signal generated;
The control part is the control of the whole working system, first control the transmitter part of the transmitter ultrasound, and then the receiver part of the control, to determine whether the received ultrasound is transmitted by their own ultrasound, and finally identify the size of the received ultrasound;.
The power supply part is the power supply device of the whole system. In this way, under the action of the power supply and under the control of the control part, the transmitter and the receiver work together to fulfil the required functions of the sensor.

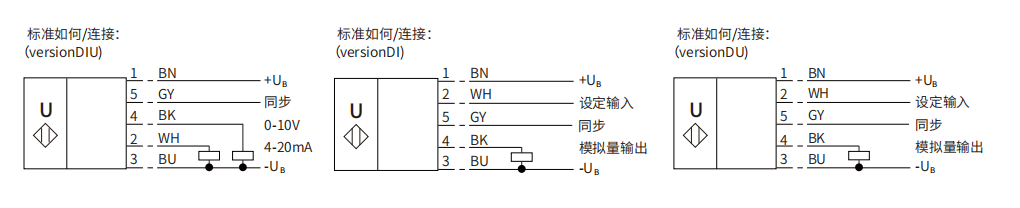

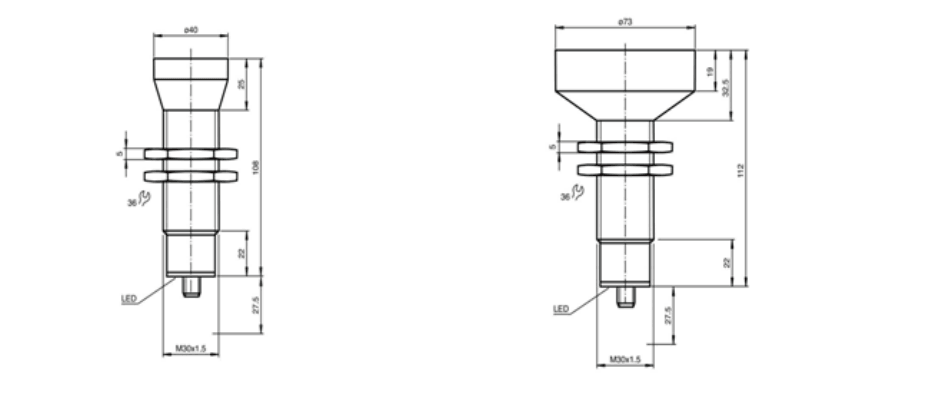

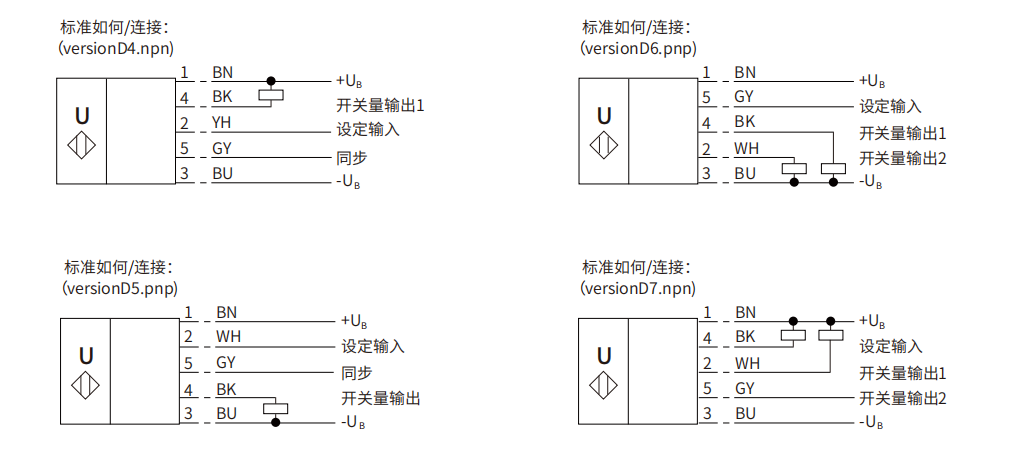

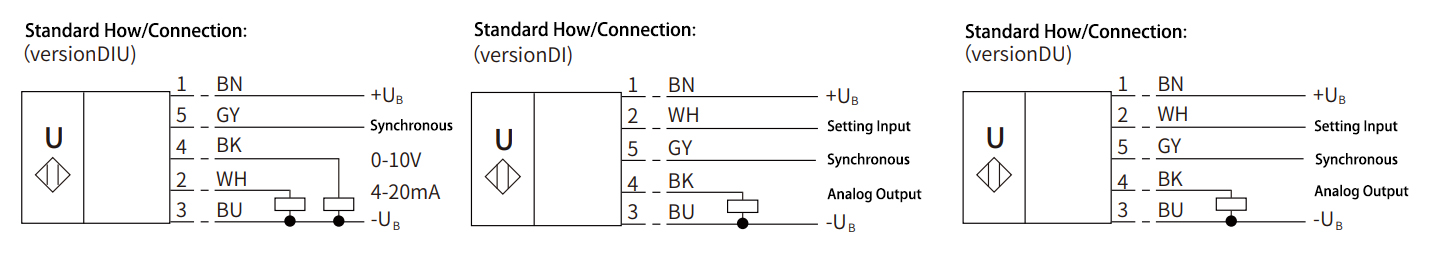

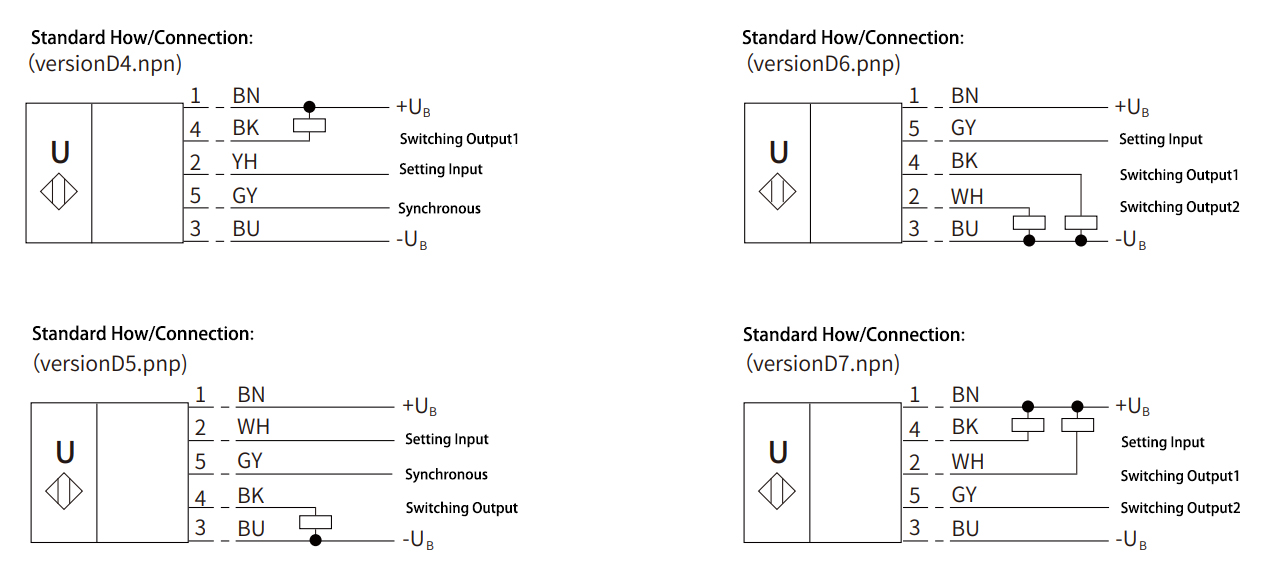

Switching Electrical Diagrams Analogue Electrical Diagrams Dimension Drawing Technical Parameters, Selection Table

Product Model LF91C-AD4-H5 LF91C-BD4-H5 LF91C-AD6-H5 LF91C-BD6-H5 LF91C-ADI-H5 LF91C-BDI-H5
LF91C-AD5-H5 LF91C-BD5-H5 LF91C-AD7-H5 LF91C-BD7-H5 LF91C-ADU-H5 LF91C-BDU-H5
Detection Range 200...4000mm 350...6000mm 200...4000mm 350...6000mm 200...4000mm 350...6000mm
Detection Blind Zone 0...200mm 0...350mm 0...200mm 0...350mm 0...200mm 0...350mm
Transducer Frequency Approx.85KHz Approx.65KHz Approx.85KHz Approx.65KHz Approx.85KHz Approx.65KHz
Response time Approx.25ms Approx.650ms Minimum145ms Minimum285ms Minimum145ms Minimum285ms
Switching Frequency Standard Target Board ≤1.5 Hz ≤0.8Hz ≤1 Hz ≤0.5 Hz 100mm* 100mm
Output type D4 NPN Normally open/closed selectable D6 two switches PNP normally open / normally closed optional DI 4...20mA current output
D5 PNP Normally open/closed selectable D7 two switches NPN normally open/closed selectable DU 0-10V voltage output
Rated Operating Current 200mA Short circuit protection/overload protection 2* 100mA short-circuit protection/overload protection ≤900 mW
Operating Voltage 10-30V DC 10% ripple
Repeatability ≤0.5% ≤0. 1% ±0.1% of full scale value
Range Adjustment Adjust the farthest and nearest ranges with the adjustment cable.
Protection class IP65
Connection method H5 (5-pin) M12 cable / 2m PVC cable
LED green Normally illuminated : Energised Flashing : Target detected in set state
LED yellow Switching status indicator flashing : Target detected in set state
LED Red Red light on : Error Red light flashing : Target not detected
