Ultrasonic Sensor - LF91A

PREV: Ultra-high precision displacement (float level) sensor-LF700
NEXT: Ultrasonic Sensor - LF91B

Product introduction

The ultrasonic sensor is mainly composed of a transmitting section, a receiving section, a control section, and a power supply section.
Among them, the transmitting section consists of a transmitter and a transducer. The transducer can convert the energy generated by the vibration of the piezoelectric chip under voltage excitation into ultrasonic waves, and the transmitter emits the generated ultrasonic waves.
The receiving section consists of a transducer and an amplification circuit. The transducer receives the reflected ultrasonic waves. Since mechanical vibrations are generated when receiving ultrasonic waves, the transducer can convert mechanical energy into electrical energy, and the amplification circuit amplifies the generated electrical signal.
The control section controls the entire operating system. First, it controls the transmitter to emit ultrasonic waves, then controls the receiver to determine whether the received waves are those emitted by itself, and finally identifies the strength of the received ultrasonic waves.
The power supply section is the power device for the entire system. Thus, under the action of the power supply and the control section, the transmitter and receiver cooperate to complete the sensor's required functions.

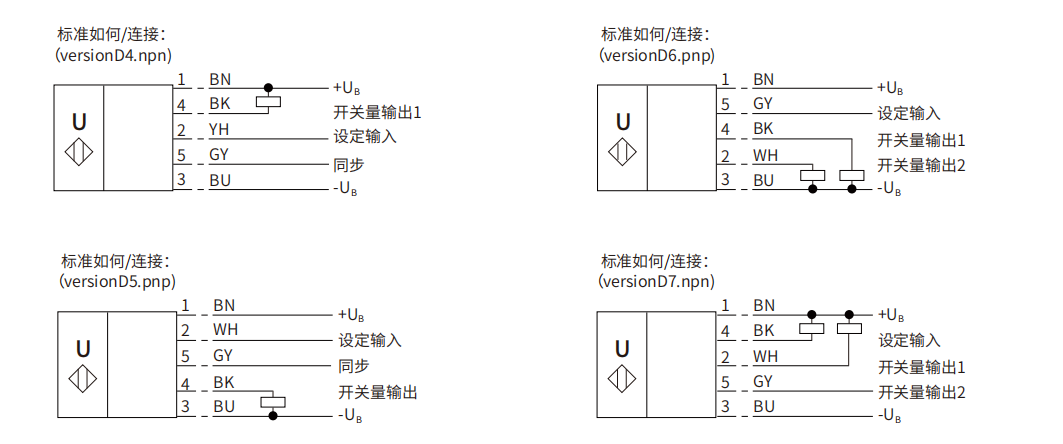

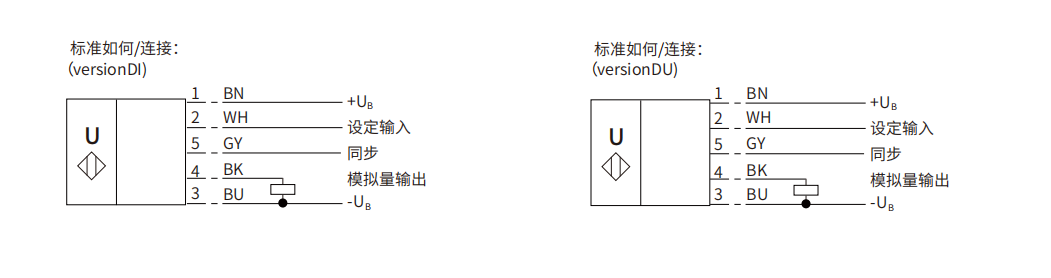

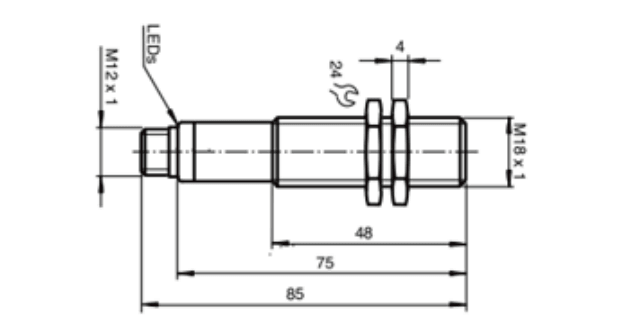

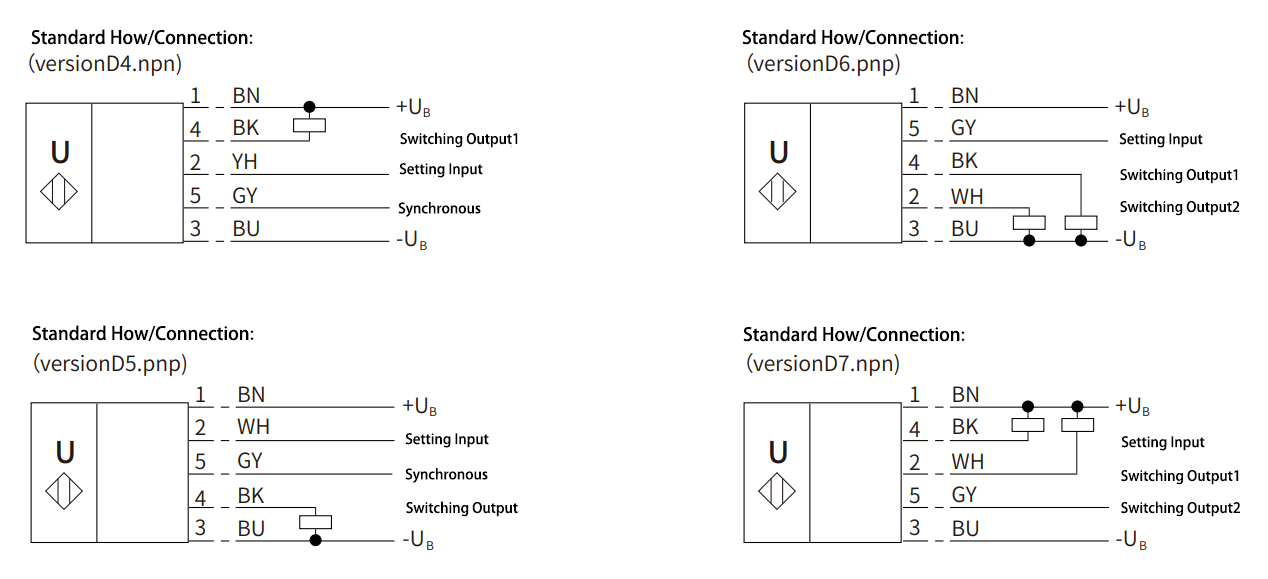

Switching Output Wiring Diagram Analog Output Wiring Diagram Dimensions Diagram Technical Parameters & Model Selection Table

Model Number

LF91A-AD4-H5

LF91A-BD4-H5

LF91A-AD6-H5

LF91A-BD6-H5

LF91A-ADI-H5

LF91A-BDI-H5

LF91A-AD5-H5

LF91A-BD5-H5

LF91A-AD7-H5

LF91A-BD7-H5

LF91A-ADU-H5

LF91A-BDU-H5

Detection Range

50...500mm

70...1000mm

50...500mm

70...1000mm

50...500mm

70...1000mm

Dead Zone

0...50mm

0...70mm

0...50mm

0...70mm

0...50mm

0...70mm

Transducer Frequency

Approx.380KHz

Approx.205KHz

Approx.380KHz

Approx.205KHz

Approx.380KHz

Approx.205KHz

Response Time

Approx.50ms

Approx.125ms

Approx.50ms

Approx.125ms

Approx.50ms

Approx.125ms

Switching Frequency (Standard Target Plate)

≤8 Hz

≤3 Hz

≤8 Hz

≤3 Hz

100mm* 100mm

Output Type

D4 NPN NO/NC Selectable

D6 Two Switching Outputs PNP NO/NC Selectable

DI 4..20mA Short Circuit/Overload Protection

D5 PNP NO/NC Selectable

D7 Two Switching Outputs NPN NO/NC Selectable

DU 0-10V

Rated Operating Current

200mA Short Circuit Protection/Overload Protection

2*100mA Short Circuit Protection/Overload Protection

DI ≤45mA

DU ≤50mA

Operating Voltage

10-30V DC Ripple 10%

15-30V DC Ripple 10%

Repeat Accuracy

≤1%

±1.5% of Full Scale

Range Adjustment

Adjustable for Farthest and Nearest Range via Adjustment Line

Protection Grade

IP65

Connection Method

H5 (5-pin) M12 Connection Cable / 2m PVC Cable

LED Yellow Light

Switching Status Indication – Yellow light flashes when target is detected under setting state

LED Red Light

Red light always on: Error

Red light flashing: No target detected under setting state
