Micro circular gear flow sensor-SN54B

Product introduction

SN54B gear flow sensor built-in double circular gear operation, through the high-precision gear volume calculation of the media through the volume, to achieve the measurement of micro-fluid media. It is a new type of volumetric flow sensor. Used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in pipelines.
-Pulse / 4-20mA analogue option.
-High pressure resistant (1.0-45MPa)
-High and low temperature resistance (-40...150° C). .150° C)
-Measurement of various viscous media
-High accuracy and repeatability
-Wide range ratio (1:100)
-Wide measuring range
-Anti-corrosion and high dirt resistance (acid and alkali)

Technical Description Product Applications Line Graph Wiring Diagram Dimension Drawing Panel Schematic Selection Table
Measuring range  See parameter table for details
Output Signal 4-20mA/Pulse
Measurement accuracy 0.5%
Repeatability 0. 1%
Power supply 16--30Vdc
Medium temperature -30...80℃
(High temperature customized 150℃ )
Material pressure resistance Aluminum: Standard withstand pressure 100bar
Stainless steel: standard pressure 200bar
Stainless steel: customized pressure resistance 420bar

SN54B Gear Flow Sensor is widely used in various industries for accurate measurement of low flow rates. Applicable media: additive fuels, flotation tanks for water treatment, corrosion inhibitors, catalysts, emulsifiers, oils, greases, fragrances, adhesives, solvents, inks and pesticides, and other partially high-viscosity media. Applications include automotive, aviation, mining, power
Air, mining, electric power, chemical, pharmaceutical, food, paint, petroleum, environmental protection, printing and other industries.
Especially suitable for heavy oil, polyvinyl alcohol, resin and other viscosity of the media flow measurement (can measure the viscosity of up to 10,000 Pa.s fluid). Volume, light weight, low vibration and noise during operation and stable operation, can also be used to measure the small pipe diameter of the measurement of the micro-flow. Starting flow rate of small range ratio is wide, suitable for measuring the flow of liquids in line with the large changes in the measurement accuracy is not affected by changes in pressure and flow rate, stable performance, long life, large flow capacity.
-Resin, glue measurement
-Measurement of hydraulic oil, lubricating oil and grease.
Fuel oil measurement
-Measurement of liquid nitrogen, freezing liquid and solvents.
-Measurement of edible oil, fish oil, and food filling
Measurement of chemical and anti-corrosion fluids
-Fluid dosing control system
-Wide measuring range
Anti-corrosion and dirt resistance (acid and alkali)
-Optional stainless steel housing/aluminium housing
-Digital signal control transmission

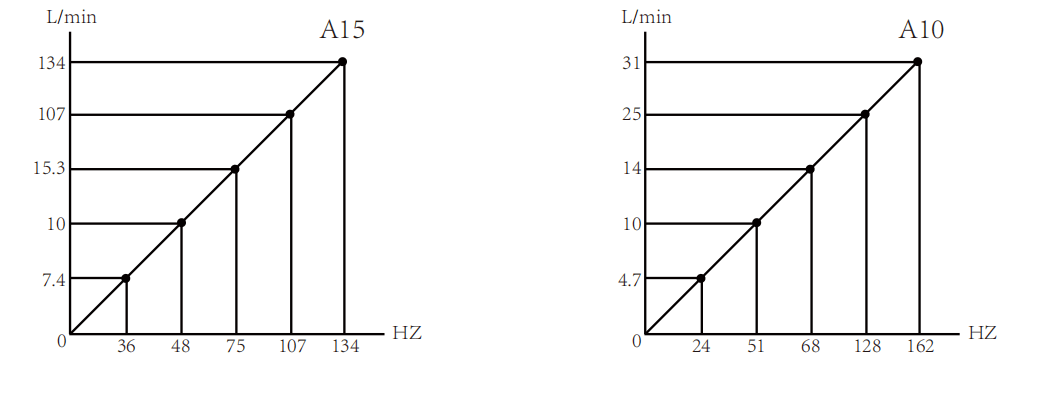

Needle Cables Signal
1 Brown Power supply
2 White Switch 2
3 Blue GND
4 Black Switch 1
5 Grey mA/Pulse P

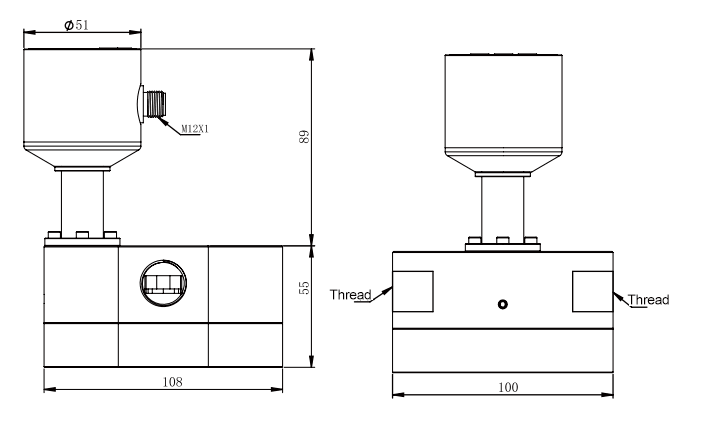

SN54B- A2 F X B Detailed Description
SN54B-           SN54B Series Micro Circular Gear Flow Sensor
  A1         Range : 0.003-0.8L/mi (corresponds to: female G1/8)
  A2         Range : 0.003-2L/min (corresponds to: female G1/4)
  A5         Range : 0.004-4L/min (corresponds to: female G1/4)
  A8         Range : 0.1-10L/min (corresponds to: female G1/4)
  A8.1         Range: 0.01-10L/min (corresponds to: female G1/4)
  A9         Range: 0.2-20L/min (corresponds to: female G1/2)
  A9.1         Range: 0.02-18L/min (corresponds to: female G3/8)
  A10         Range : 0.03-40L/min (corresponds to: female G1/2)
  A15         Range : 0.8-80L/min (corresponds to: female G3/4)
  A15.1         Range : 0.05-80L/min (corresponds to: female G3/4)
  A20         Range: 0.1-120L/min (corresponds to: female G1)
  A25         Range: 1-250L/min (corresponds to: female G1-1/4)
  A30         Range: 2-380L/min (corresponds to: female G1-1/2)

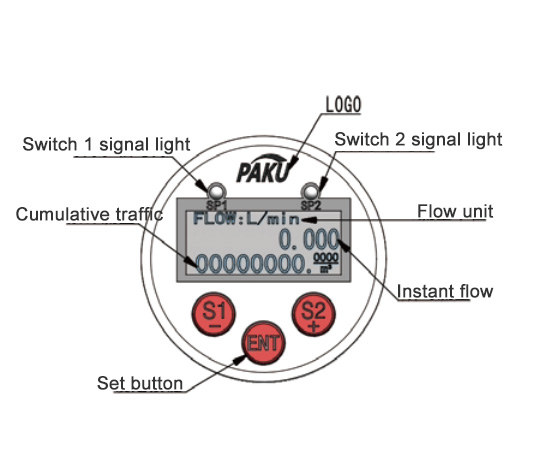

          2 switching + 1 analogue 4-20mA outputs, local display
      F     Sealing material FKM (standard type)
      P     Seal material: PP (anti-corrosion type)
        L   Body material: aluminium oxide
        X   Body material: 304 stainless steel
        P   Body material: PP
          B Standard type
          T High temperature
          P High pressure
*Note: The flowmeter pulse coefficient is labelled on the flowmeter and is generally XX ml/pulse.
*The selection table is for parameter selection only, and the corresponding code of the parameter will be shipped from the factory.
