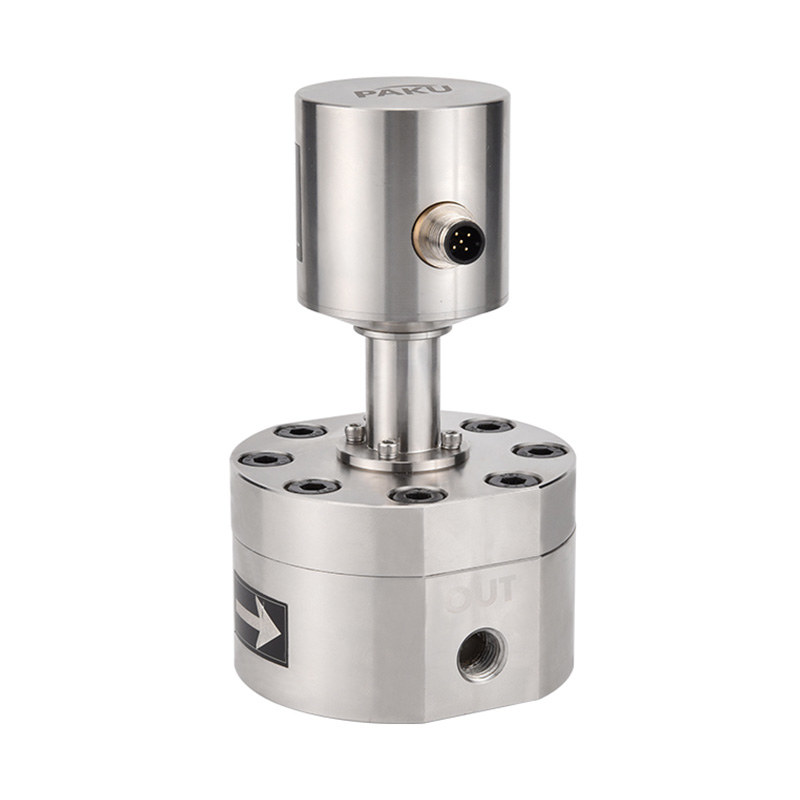

Micro oval gear flow sensor-SN55A

Product introduction

The SN55A Micro Gear Flow Sensor has a built-in double elliptical gear, which is driven by liquid flowing into the measuring chamber of the Gear Flow Meter, with each tooth and the wall of the measuring chamber forming a space containing an equal volume of liquid. The volume of liquid flowing through is measured by the number of gears that a particular sensor detects passing through.
The SN55A gear flow meter is not affected by the viscosity of the medium, and has high measurement accuracy and repeatability, even at the upper and lower limits of the range. Especially suitable for measuring high viscosity media.
-Dual analogue switching outputs
-PNP/NPN selectable at will
-Highly accurate monitoring
-Precise dosing
-Wide range of media applications
-Not affected by medium pulsation
-Stainless steel/aluminium enclosure optionally available
-Digital signal control transmission

Product Applications Technical Description Wiring Diagram Dimension Drawing Selection Table

Widely used in a variety of industries for low-flow accurate measurement, applicable media: additive fuels, flotation tanks for water treatment, corrosion inhibitors, catalysts, emulsifiers, oils, greases, spices, adhesives, solvents, inks and pesticides, and other parts of high-viscosity media. Application industries include automotive, aviation, mining, electric power, chemical, pharmaceutical, food, paint, petroleum, environmental protection, printing and other various industries.

-Measuring range: see selection table
-Output signal: pulse
-Measuring accuracy:0.5 per cent
-Power supply:24Vdc
-Medium temperature:-30...80°C (high temperature customised:150°C)
-Standard pressure:5MPa
-High pressure: 40MPa (stainless steel)

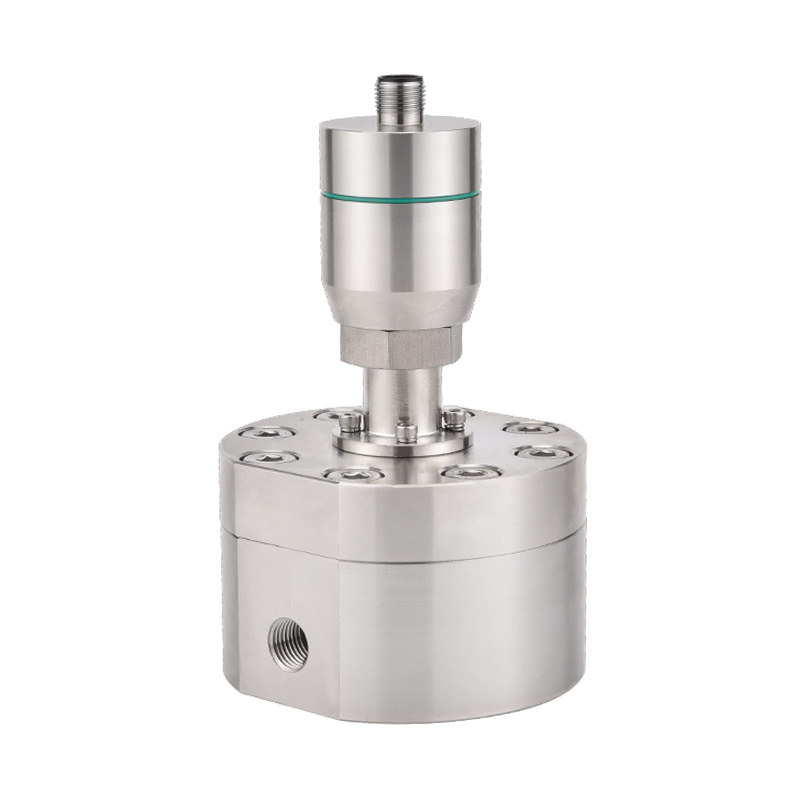

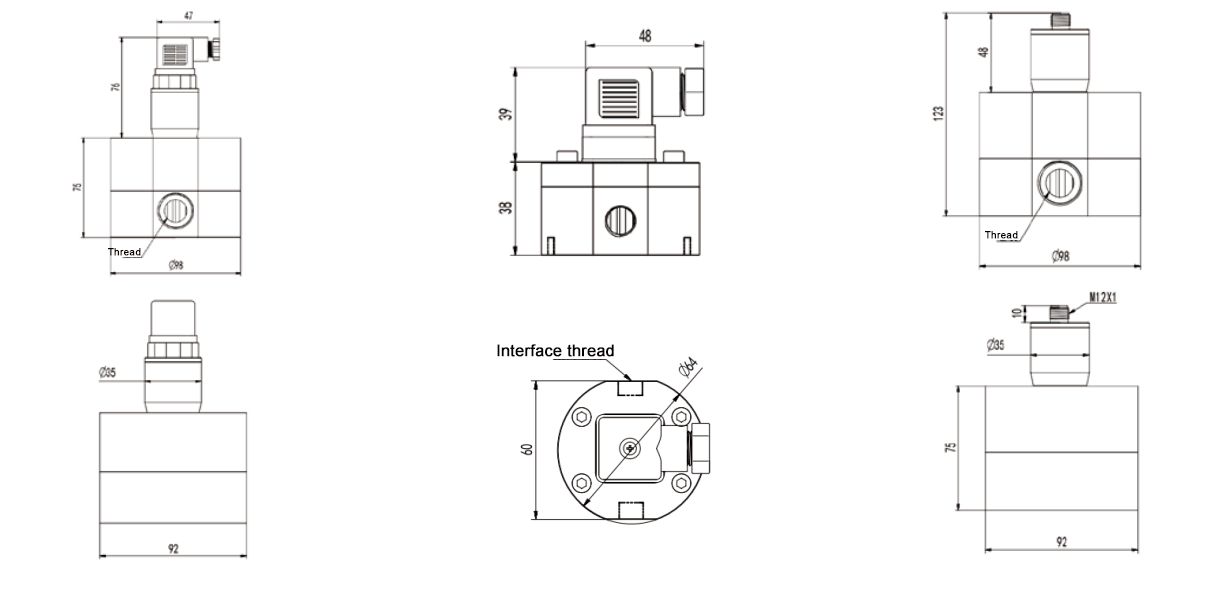

Dimensional drawing 1 (M12 connector type)

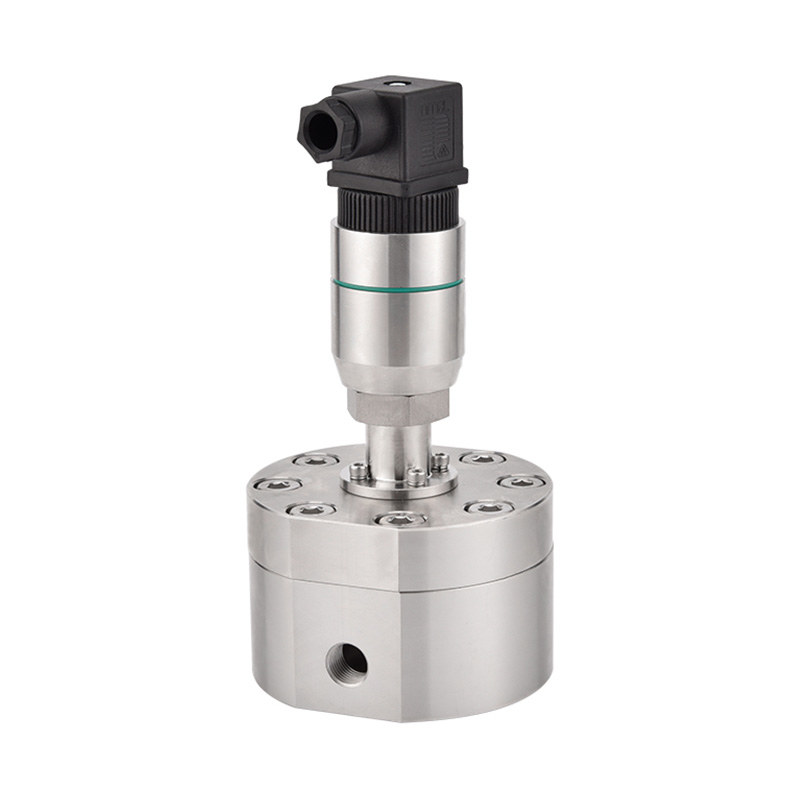

Dimensional drawing 2 (Hirschmann type)

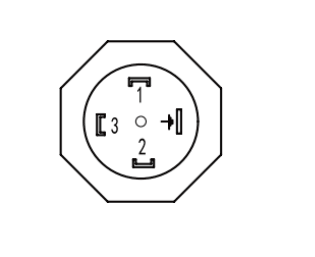

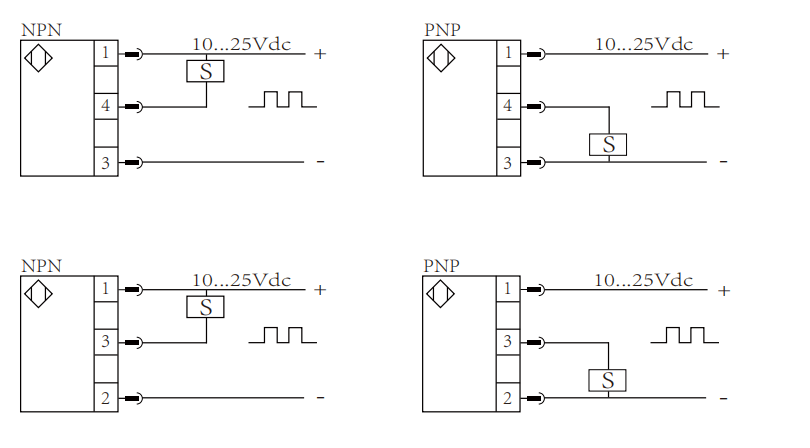

Signal Needle
Power Positive 1
Pulse 2
Power Negative 3

SN55A- B D P X B Pulse Coefficient
Ml/P
Detailed description
SN55A-             SN55A Series Tiny Elliptic Gear Flow Sensor
  A           Connectors
  B           Hussman
  C           Compact type (4-20mA output, 1-5V output is not optional)
  E           No LED display
    D       0.5  Range : 0.02 - 2L/min (corresponds to: female thread G1/8, M6)
    E       2.5  Range : 0.1-10L/min (corresponds to: female G1/4, M10)
    F       8.5  Range : 0.3-30L/min (corresponds to: female G1/2, M12)
    F1       14.3  Range: 0.6-60L/min (corresponds to: female G3/4, M20)
    G       23  Measuring range: 1-100L/min (corresponds to: female G1, M25)
    H         Special design
      P       PNP pulse output
      N       NPN pulse output
            4-20mA output
            1-5V output
        X     Stainless steel case
        L     Aluminium case
          B   Standard
          T   High temperature customisation
          P   High Voltage
* The selection table is for parameter selection only, and will be shipped with the corresponding code for the parameter.
