Product 3D Image
Get coupons

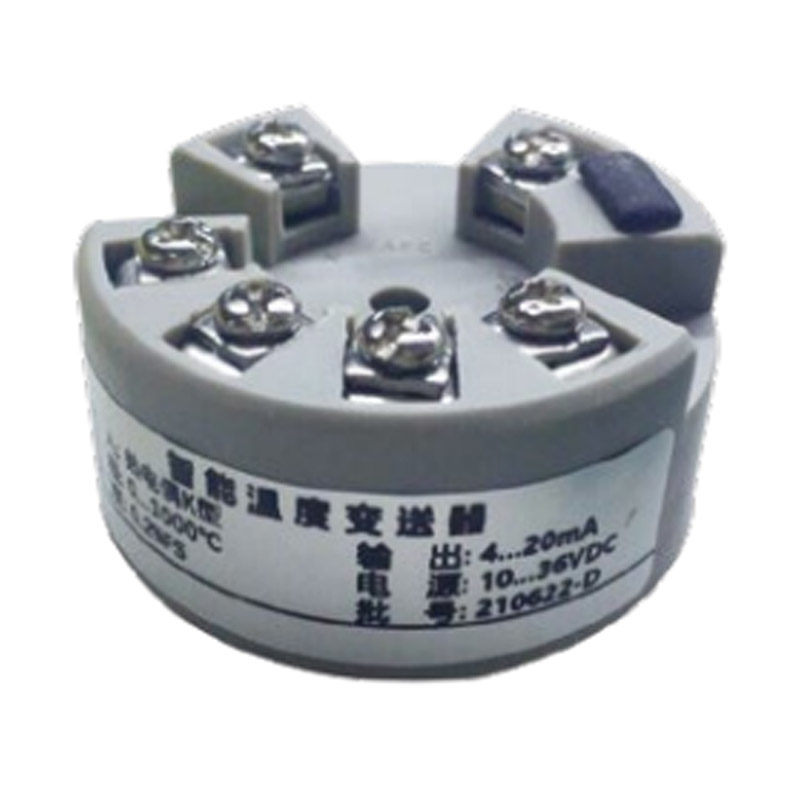

Product introduction

-Higher measurement accuracy and stability
- Two-wire output, input and output electrical isolation
-Intelligent nonlinear compensation
-TC automatic cold end compensation - PC USB interface
calibration configuration, can be configured online during
measurement - Output limit function and LED indication sensor fault alarm - Universal integrated intelligent temperature
transmitter, used to convert various input signals into 4-20mA
signals - Universal input, can accept thermal resistor (RTD),
thermocouple (TC), resistance (Ω), voltage (mV) signal input -
Compact structure, can be directly installed in the junction box of thermocouple and thermal resistor; optional special card can
realize DIN35 rail installation

TR2 Thermal Resistance Temperature Transmitter Module TR3 switch output temperature transmitter module TR1 Thermocouple Temperature Transmitter Module

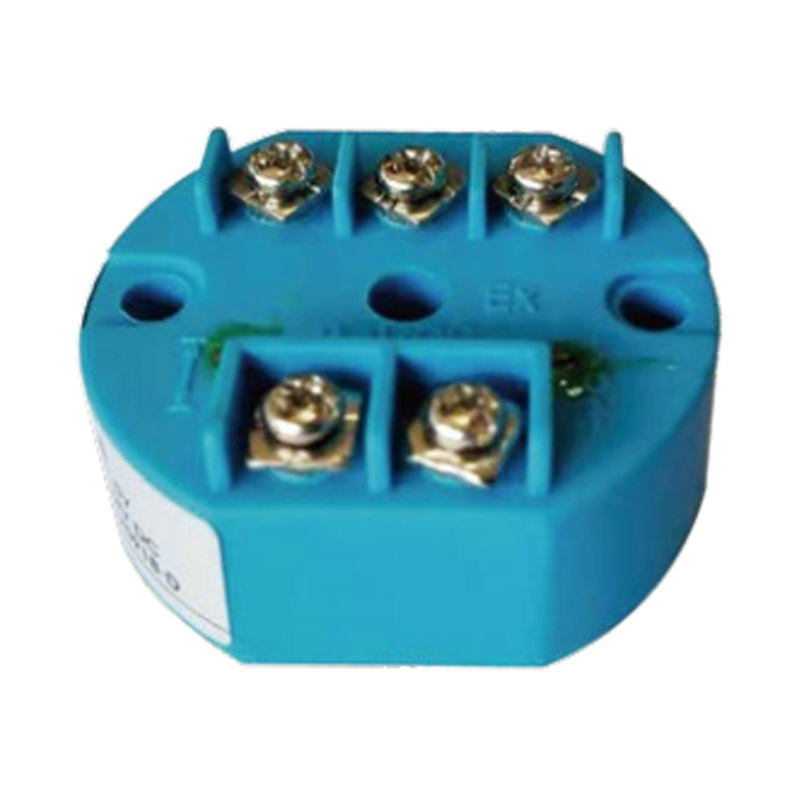

-Output signal: 4-20 two-wire system
-Power supply voltage: 24V DC (12~30V) -Measurement range:
customized -Accuracy level: ±0.5%FS ±0.2%FS ±0.1%FS -Ambient temperature: -20~80 ℃ -Functional features: linear compensation, wire break protection function -Application range: can be selected to adapt to various types of thermal resistance sensors Pt100, Pt1000, Cu50, Cu100 -Overall dimensions: φmm H16mm Installation hole distance 36mm

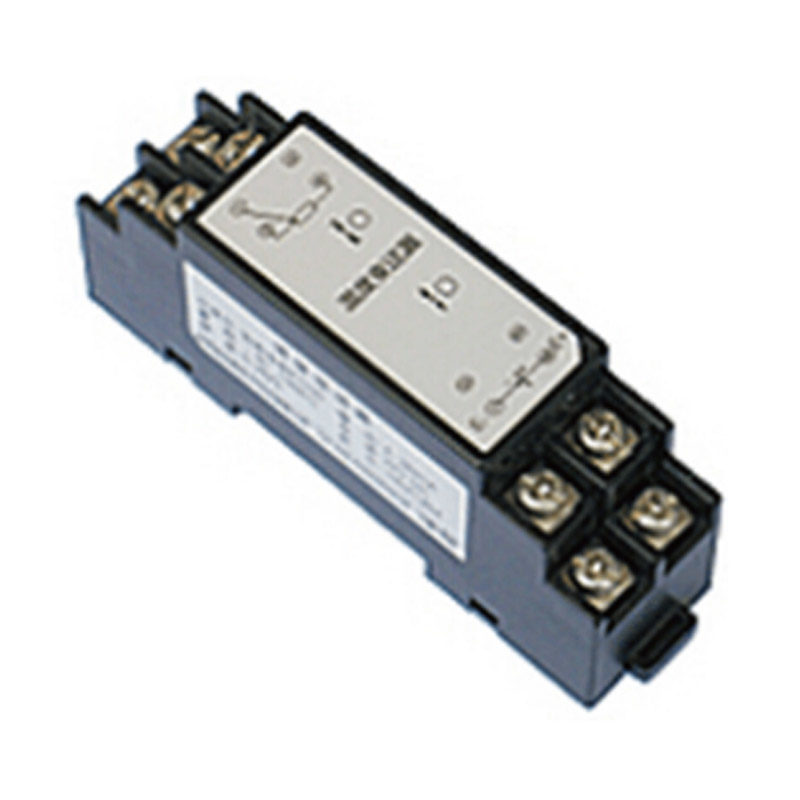

-Output signal: switch quantity and 0/1~5/10V voltage -Supply voltage: 24v DC (15, 30v) Measuring range: customized

-Ambient temperature: -20, 80 ℃
-Functional features: linear compensation, sensor disconnection alarm, enhanced anti-interference -Scope of application: suitable for various types of thermal resistance sensors pt100, Pt1000,
Cu50, Cu100, etc.
-Dimensions: 94X24mm H41mm
-DLN35 rail installation

-Output signal: 4-20mA two-wire - Supply voltage: 24V DC (12~30V)
-Measurement range: customized -Accuracy: ± 0.5%FS -Ambient temperature: -20~80℃ -2
-Energy-saving features; automatic cold end compensation, sensor disconnection alarm function - Scope of application: Suitable for all types of thermocouple sensors K, S, E, B, etc.

-Dimensions:φ45mm H16 installation hole distance 36mm
