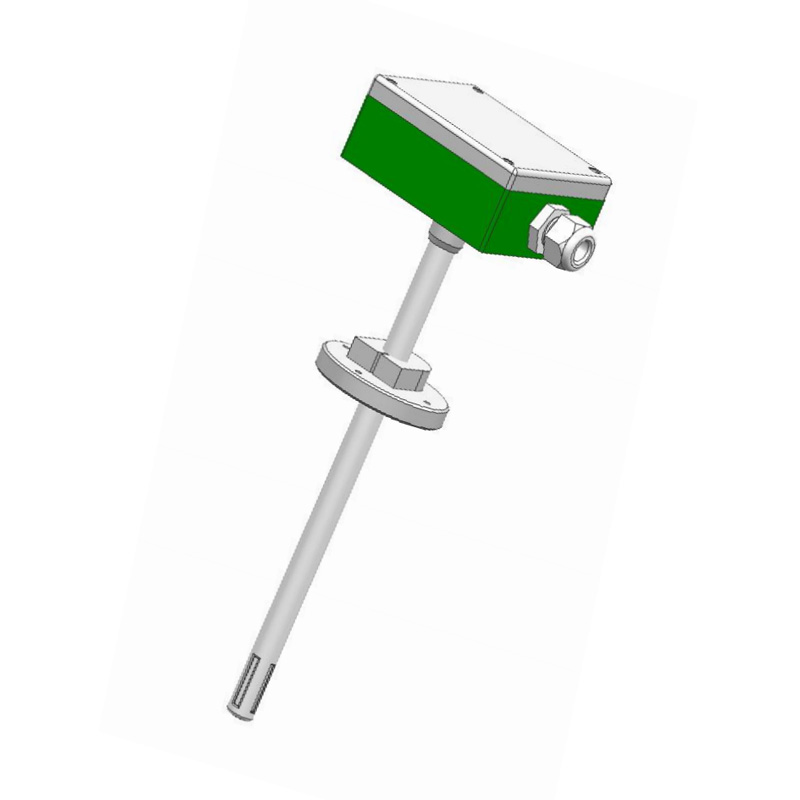

Product 3D Image
Get coupons

Temperature and humidity transmitter-T100D

Product introduction

Temperature and humidity transmitter adopts high precision digital chip, which can be used to measure temperature and humidity and output standard industrial signals through the transmitter.
- Small volume, high precision, stable performance
- Support analog quantity, RS485/232 output
- Excellent cost performance, suitable for different use environment
- Low temperature drift, fast response
- Power reverse and overvoltage protection

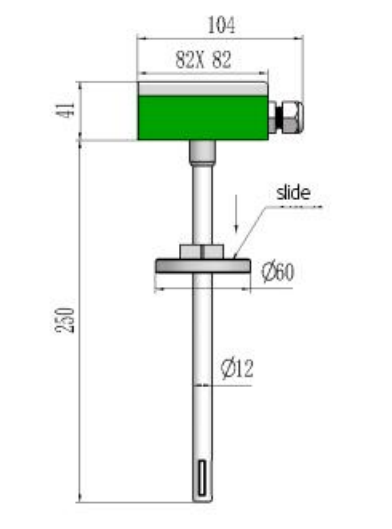

Product Application Wiring Diagram Dimension Figure Technical Specification Selection Table

It is widely used in ventilation pipes, HVAC and other fields where the temperature and humidity in the air need to be measured and controlled.
- Semiconductor and microelectronics industry
- textile industry
- electronic industry tobacco industry
- Seed andaquaculture

24vdc
GND
mA/V ( ℃ )
mA/V( RH )
RS485( A )
RS485( B )

project humidity(RH) temperature(℃)
range ability 0...100% -20.…80
measurement accuracy ≤±2% ≤±0.5
stability <0.5%/year <0.1/year
response time <3s <1s
supply voltage 12.…36VDC
signal output mA、V、RS485
output load mA<500Ω、V>10KΩ
environment temperature -20.…65℃
storage temperature -40...85℃
Protection grade IP54
shell material PA PC
Measuring Media air
T100D- A C0-50 specification
        T100D series temperature and humidity transmitter
  A     wall-mounted
  B     split type
    C...   Temperature range: -20... 80℃ (user-defined)
    S...   Humidity range: 0... 100% (user customizable)
      4-20 ma output
      0 to 10 v output
      4R 4-20 ma output + RS485
      0R 0 to 10 v output + RS485
* Support special customization.
* The type selection table is only for technical selection, and the corresponding type of the factory model is reflected by the code.
