Display Controller - F11

PREV:
Product introduction

Principle and Features:
The F11 series display controller is used together with temperature or pressure sensors to display and control temperature or pressure values. It can be configured to output switch signal alarms based on set thresholds.

4-digit LED numeric display
Input types: J, K, S, T, E, B, N, C, DIN-PT100, JIE-PT100, 420mA, 0-5V, 15V, 0~10V
Proportional control (P): 0.0~300.0% F.S
Derivative (D): 0~900 sec
ON/OFF control: Hysteresis range 0~2000
Sampling cycle: 0.5 s
Operating temperature: 0…50°C
Humidity: 90% RH

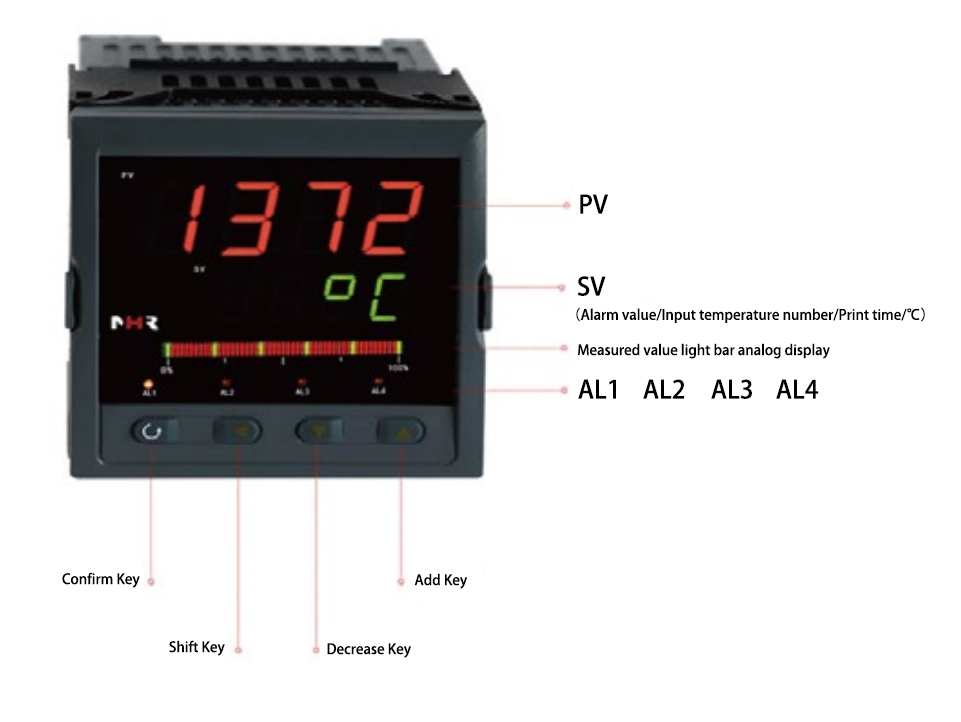

Outline Dimensions Table Output Code Table Panel View Diagram Model Selection Table

Code

Outline Dimensions

Panel Cutout Dimensions

A1

160*80mm (horizontal)

152*76mm

A2

80* 160mm

(vertical)

76* 152mm

A3

96*96mm

(square)

92*92mm

A4

96*48mm

(horizontal)

92*45mm

A5

48*96mm

(vertical)

45*92mm

A6

72*72mm

(square)

68*68mm

A7

48*48mm

(square)

45*45mm

A8

160*80mm

(horizontal bar graph)

152*76mm

A9

80* 160mm

(vertical bar graph)

76* 152mm

A10

96*96mm

(square bar graph)

92*92mm
Code Output Description
A One relay alarm output
B Two relay alarm outputs
C Three relay alarm outputs
D Four relay alarm outputs
E One relay alarm + one 4–20 mA analog output
F Two relay alarms + one 4–20 mA analog output
G Three relay alarms + one 4–20 mA analog output
H Four relay alarms + one 4–20 mA analog output
I One relay alarm + one PT100 input
J Two relay alarms + one PT100 input
K Three relay alarms + one PT100 input
L Four relay alarms + one PT100 input
M No output, local display only

F11

-

A1

A

P

1

D

Details

F11

-











F11 Series Display Controller





A1-A10









Select outline dimensions: Refer to the Outline Dimensions Table







A-L







Output type: Refer to the Output Code Table









P





Input: PT100 (see Input Specification)









4





Input: 4–20 mA (see Input Specification)











1



No communication interface output











2



Communication Interface: RS485











3



Communication Interface: RS232













D

Power Supply: DC 24V ±10%













J

Power Supply: AC 220V ±10%

* Please double-check all options after selection to avoid configuration errors!

* This selection table is for technical configuration only. The final factory model is determined by corresponding code.
Shanghai Kayuan Electronic
Technology Co., Ltd.
