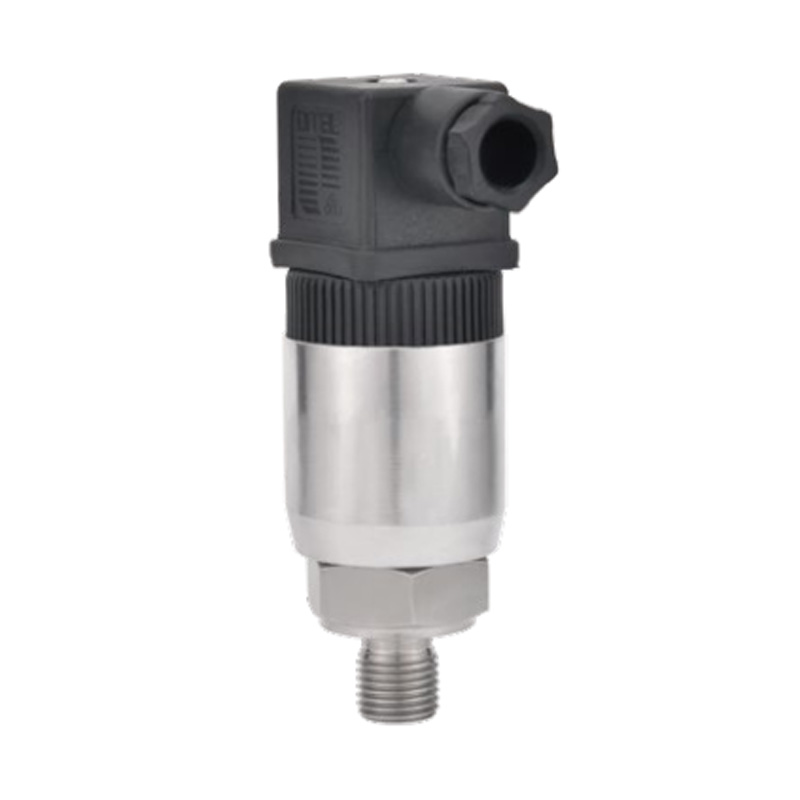

Rugged Anti-Impact Pressure Transmitter – PN50B

Product introduction

Principle & Features

PN50B is a rugged and anti-impact diffusion silicon pressure transmitter.

Wide selection range and compact design

Suitable for harsh environments with high reliability

Wide measuring range (0...1000 bar)

Available for gauge pressure and absolute pressure

Ideal for machinery, hydraulic and pneumatic systems, locomotives, and pressure control

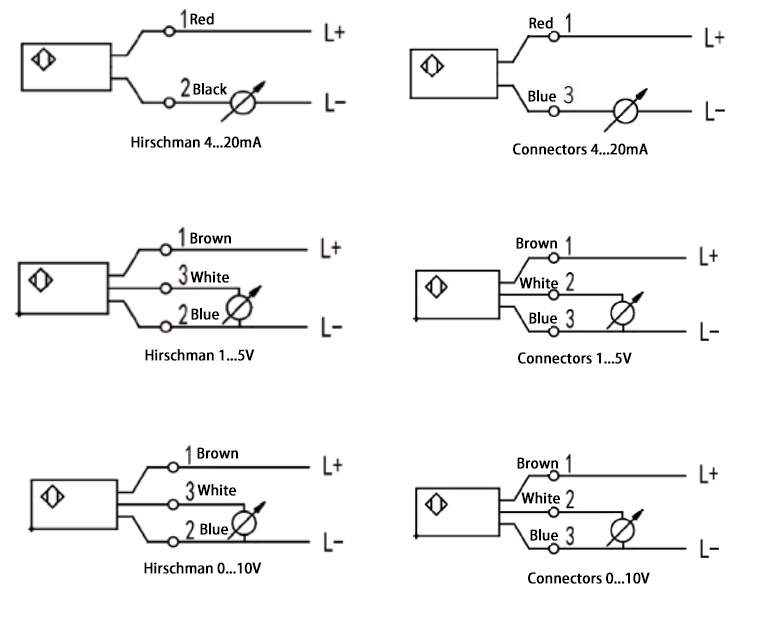

Technical Specifications Wiring Diagrams Measuring Range Table Dimensional Drawing Model Selection Guide Optional Display Head

Measuring Range: Customized according to user requirements
Overload Limit: 1.5× measuring range
Accuracy: 0.5%
Linearity: ±0.2%
Repeatability: ≤ ±0.1% F.S.
Stability: Within accuracy range for 1 year
Temperature Effect: < ±0.02% F.S./K
Response Time: < 1 ms (10...90% F.S.)
Power Supply: 10...30VDC (3-wire: 14...30V)
Load Resistance:
≥10KΩ (0...10V)
≥5KΩ (1...5V)
≤(UB-10)V / 0.02A (4...20mA)
Power Consumption: Signal current (2-wire); 8mA (3-wire)
Electrical Protection: Overload / reverse polarity protection

Ambient Temperature: -30...85°C
Medium Temperature: -25...80°C
Storage Temperature: -30...100°C
Protection Grade: IP65
Housing Material: Stainless steel 304
Wetted Parts: Stainless steel 304
Sealing: FKM (Viton)
Weight: 0.10 kg

Range

Gauge Pressure Code

Absolute Pressure Code

0--1bar

GB001

AB001

0--2bar

GB002

AB002

0--4bar

GB004

AB004

0--10bar

GB010

AB010

0--20bar

GB020

AB020

0--40bar

GB040

AB040

0--60bar

GB060

AB060

0--100bar

GB100

AB100

0--160bar

GB160

AB160

0--200bar

GB200

AB200

0--250bar

GB250

AB250

0--400bar

GB400

AB400

0--600bar

GB600

AB600

PN50B-

GB...

C

G4

H

4

B

B

Detailed

PN50B-















PN50B Rugged Anti-Impact Pressure Transmitter



GB...













Gauge Pressure Range: ___ bar (refer to range table)



AB...













Absolute Pressure Range: ___ bar (refer to range table)



GP...













Custom Range: ___ kPa (user-defined)

















Customized Range





C











Accuracy Grade: 0.5







G4









Process Connection Threads: G1/4







G2









Process Connection Threads:

G1/2







N4









Process Connection Threads:

NPT1/4







N2









Process Connection Threads:

NPT1/2







M2









Process Connection Threads:

M20* 1.5







P









Flat diaphragm > G1/2

















Custom threads









H







H = Male thread / K = Female thread











4





4-20mA Output Signal











1





1-5V Output Signal











0





0-10V Output Signal













B



B: Hirschmann connector













C

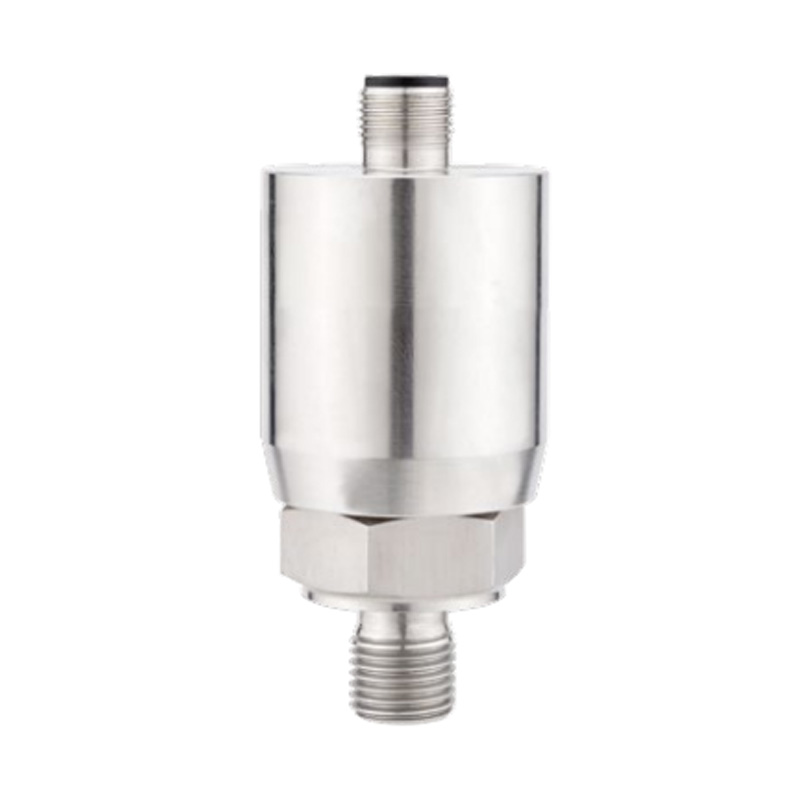

C: M12*1 plug















B

None: No damping pin, no heat sink















Z

Z: Damping pin  S: Heat sink (optional)

Note: Selection table is for reference only. Product codes will be assigned based on selected parameters.

F10-

A

Display

F10-



Head Options



A

4–20mA output



B

1–5V output



C

0–10V output

Electronic display device for showing sensor signals

Display range adjustable via setting buttons

Free programmable by microprocessor

No need for on-site configuration

Compatible with 4–20mA output sensors

Protection rating: IP55

Optional for Hirschmann models
