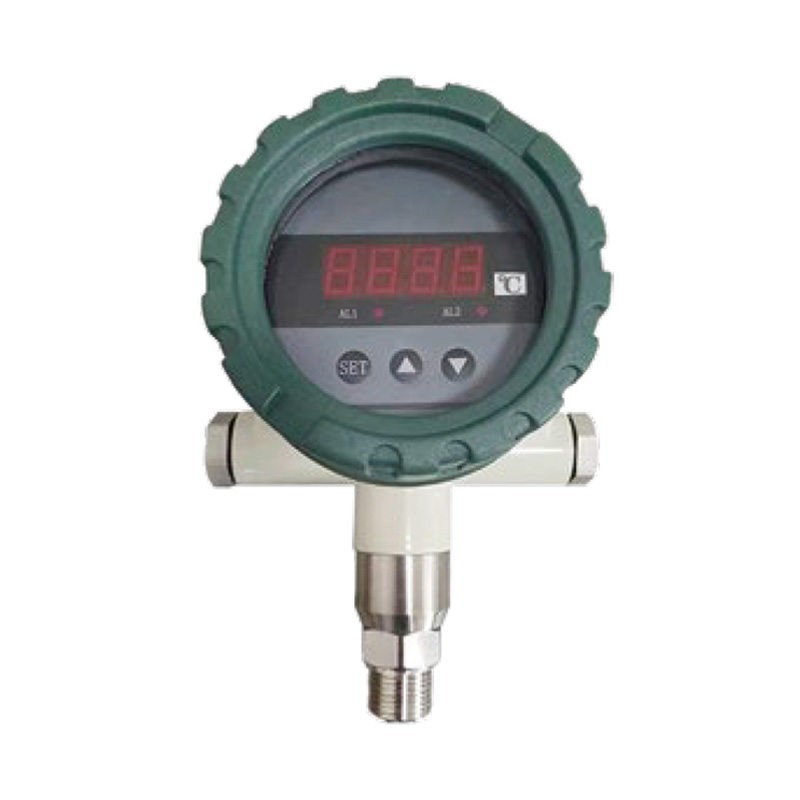

Intelligent digital pressure switch sensor-PN65C

Product introduction

Principle and Features: The PN65C series intelligent pressure controller is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output, and control. This product is fully electronic in structure, with a front-end isolated and oil-filled piezoresistive pressure sensor. High-precision A/D conversion and microprocessor operation processing enable on-site display and output of one analog signal and four switch signals.
This intelligent digital pressure controller is flexible to use, simple to operate, easy to debug, and safe and reliable. It is widely used in hydropower, tap water, petroleum, chemical, machinery, and hydraulic industries for on-site pressure measurement, display, and control of fluid media.
It can be directly installed on hydraulic pipelines through a pressure pipe connector (M20*1.5) (other connector sizes can be specified when ordering). In critical applications (such as severe vibration or shock), the pressure pipe connector can be mechanically decoupled through a micro flexible hose.
Note: When the measuring range is less than 100KPa, vertical installation is required.

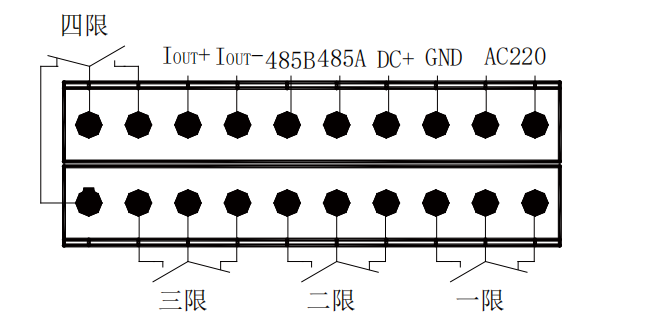

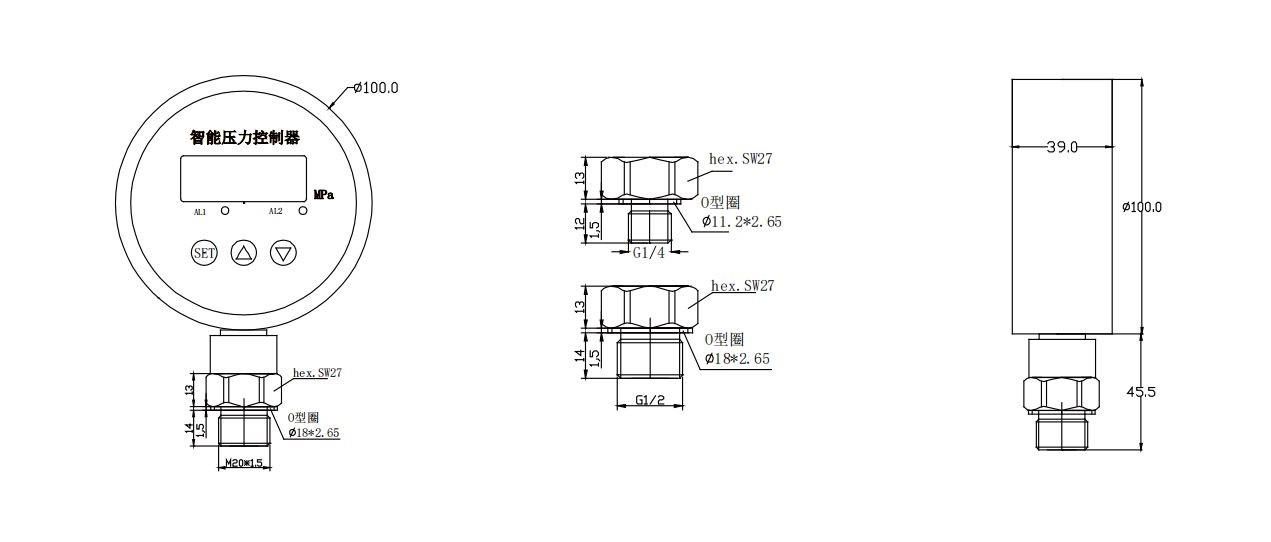

Technical Parameters Wiring Diagram Dimension Drawing Selection Table

-100 standard instrument installation
-4-digit LED display
-Four relay control point outputs
-On-site setting of control points
-Standard 4~20mA signal output
-Power supply options: 24VDC, 220VAC

PN65C-A P Z A G4 H D Q B

Detailed Description

PN65C-

PN65C Series Digital Intelligent Pressure Switch Sensor

PN65C-A

Standard Version

PN65C-B

Explosion-Proof Version

    Z

Positive Pressure

    F

Negative Pressure

      A           Setting range:  -1.. 1bar or 0.. 1bar
      B           Setting range:  -1..2bar or 0..2bar
      C           Setting range:  -1..5bar or 0..5bar
      D           Setting range :0.. 10bar
      E           Setting range :0..25bar
      F           Setting range :0.. 100bar
      G           Setting range :0.. 160bar
      H           Setting range :0..250bar
      I           Setting range :0..400bar
      J           Setting range :0..600bar
      K

Customized Range, e.g., 300bar, Selection Code: K300

        G4

Connection Thread: G1/4

        G2

Connection Thread: G1/2



Customized Thread

          H

External Thread

          K

Internal Thread

            A

1 Switch Output

            B

2 Switch Outputs

            C

1 Analog Output 4-20mA

            D

1 Switch Output + 1 Analog Output 4-20mA

            E

2 Switch Outputs + 1 Analog Output 4-20mA

            F

4 Switch Outputs + 1 Analog Output 4-20mA

              A

Wiring 24V

              B

Wiring 220V

                B

Without Damping Pin, Without Radiator

                Z

Damping Pin (Optional)

                S

Radiator (Optional)

* Selection Table for Parameter Selection Only, Product Shipped Based on Corresponding Parameter Code. Temperature Range: -30–80℃
