Product introduction

The PN65A series electronic pressure sensor adopts a high-precision diffused silicon core to ensure high accuracy and durability. It is equipped with on-site display; the LED digital screen shows real-time pressure or menu settings.
Maximum measuring range: -1...600bar. The digital LED displays pressure value and switching status. The menu allows settings of switching point, analog output start and end points, output function, memory function, and display function—thus configuration can be done without being physically present on-site.
It features high reliability, and the output can be directly connected to PLC. The M12 locking connector offers easy disconnection and high protection level. Capable of measuring both positive and negative pressure. With both switching and analog outputs, this sensor can serve as both a pressure switch and a pressure transmitter.

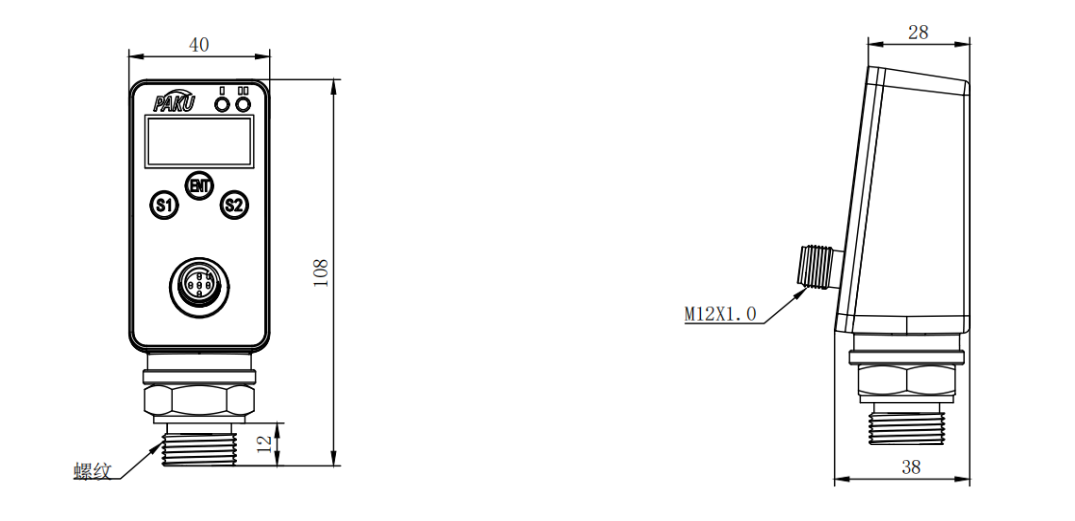

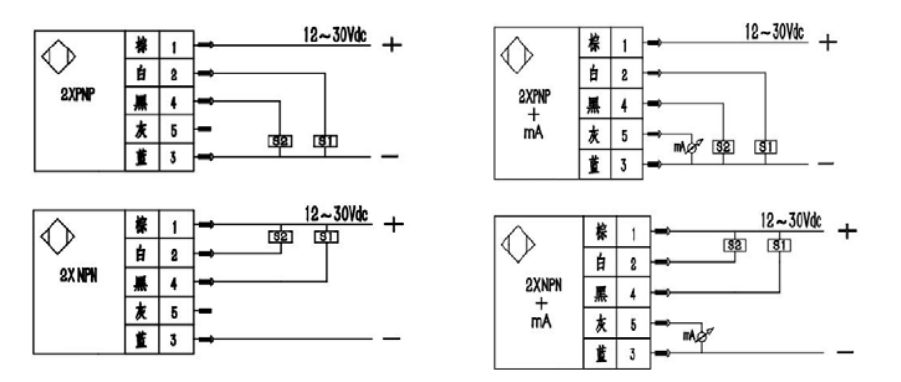

Appliance Technical Parameters Dimension Diagram Wiring Diagram Selection Table

Compatible with both gas and liquid. Suitable for:
Pump control, tank level monitoring, liquid level control, filter clogging detection, leak monitoring.
Also widely used in hydraulic and pneumatic systems such as mechanical equipment and process control.

Measuring range: See selection table
Process capacity: See table below
Switching output: Settable range 0.5%...100% FS
Accuracy: 0.5% FS
Number of switches: 1 or 2 (optional)
Output function: PNP; NPN normally open or normally closed (settable)
Rated current ≤300mA
Response time: ≤30ms
Analog output: Output type 4...20mA
Load ≤500Ω
Accuracy: 0.5%
Repeatability: 0.5% FS
Display: Red 9mm LED, range -999...9999
Power supply: 15...30VDC
Electrical protection: Reverse polarity, overload, short circuit protection
Ambient temperature: -20...80℃
Medium temperature: -30...100℃
Storage temperature: -40...100℃
Temperature effect: <±0.03%FS/K
Protection grade: IP56
Process connection: Stainless steel + NBR seal
Housing material: Zinc alloy
Electrical connection: M12×1 connector
M12×1 Connector

Pin

Cable Color

Signal

1 Brown  24V
2 White  Switch 2
3 Blue  GND
4 Black  Switch 1
5 Grey mA
PN65A- P Z A G4 H D Q B Details
PN65A-

PN65A Series Digital Intelligent Pressure Switch Sensor

  P

PNP Output

  N

NPN Output

    Z

Positive Pressure

    F

Negative Pressure

      A           Setting range: -1..1bar or 0..1bar
      B           Setting range: -1..2bar or 0..2bar
      C           Setting range: -1..5bar or 0..5bar
      D           Setting range: 0..10bar
      E           Setting range: 0..25bar
      F           Setting range: 0..100bar
      G           Setting range: 0..160bar
      H           Setting range: 0..250bar
      I           Setting range: 0..400bar
      J           Setting range: 0..600bar
      K

Customized Range, e.g., 300bar, Selection Code: K300

        G4

Connection Thread: G1/4

        G2

Connection Thread: G1/2

        K5

Clamp Connection (Outer Diameter 50.5mm) (Maximum Range 16bar)



Customized Thread

          H

External Thread

          K

Internal Thread

            A

1 Switch Output

            B

2 Switch Outputs

            C

1 Analog Output 4-20mA

            D

1 Switch Output + 1 Analog Output 4-20mA

            E

2 Switch Outputs + 1 Analog Output 4-20mA

            F

1 Switch Output + 1 Analog Output 1-5V

              Q

M12*1 Connector (Standard with 2-meter Cable)

                B

Without Damping Pin, Without Radiator

                Z

Damping Pin (Optional)

                S

Radiator (Optional)

                A

With Mounting Holes M4

* Selection Table for Parameter Selection Only, Product Shipped Based on Corresponding Parameter Code.
