Product introduction

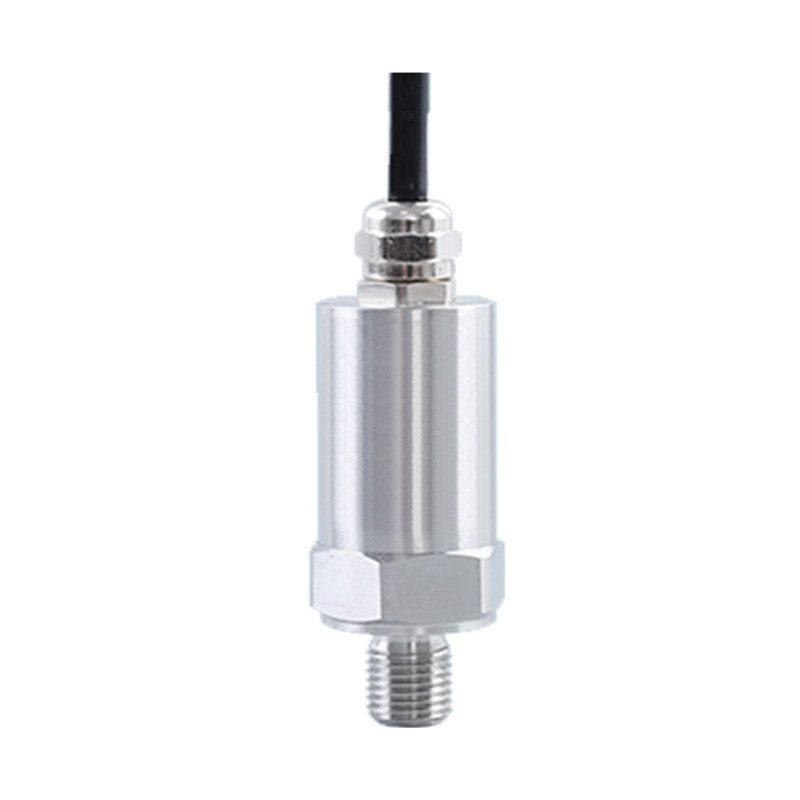

Compact diffused silicon pressure transmitter, wide choice, compact structure, suitable for harsh environment, high reliability. Wide range (0... 600bar), which can be used to measure gauge pressure and absolute pressure. Suitable for mechanical equipment, hydraulic pneumatic device, locomotive, pressure control.

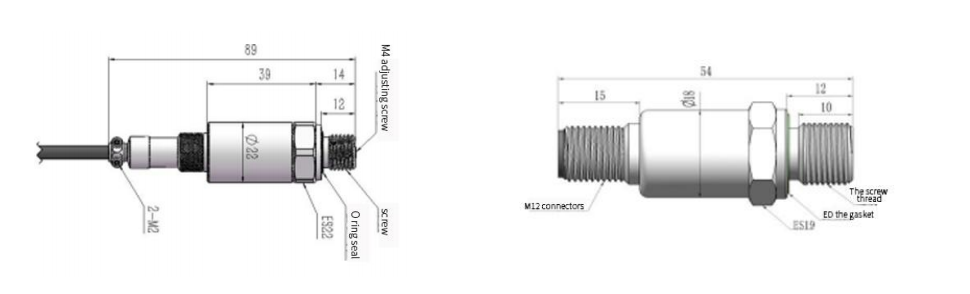

Technical Specification Wiring Diagram Dimension Figure Selection Table

- Measurement range: customized according to user requirements
- Overload range: 1.5 times of measuring range
- precision :0.25% ,0.5%
- linearity: ±0.2%
- Repeatability: ≤ ± 0.1fs
- Stability: no more than the accuracy of the transmitter within 1 year
- Temperature effect: < ±0.02%FS/K
- response time: <1ms(10...90%FS)
- power supply: 10...30VDC(3-wire 14...30V)
- load: ≥10KΩ(0...10V), ≥5KΩ(1...5V) ≤( UB-10)V,0.02A(4...20mA)
- Power consumption: Signal current (2-wire), 8mA(3-wire)
- Electrical protection: overload/reverse phase protection
- Ambient temperature: -30... 85 ℃
- medium temperature: -25... 80 ℃
- Storage temperature: -30... 100 ℃ Protection grade: IP65
- Shell material: 304 stainless steel
- Liquid material: 304 stainless steel
- Sealing: fluorinerubber
- weight:0.10Kg

PN502- A GB... C G4 H 4 C B specification
PN502-                 PN502 series spread silicon type
pressure sensors
  A               A
  BC               Type B: gauge pressure
  BD               Type B: Absolute pressure
    GB...             Optional range: bar (unit)
    GP...             Optional range: kPa (unit)
                  Custom range
      B           Accuracy class: 0.25
      C           Accuracy grade: 0.5
        N4         Interface thread: NPT1/4
        N2         Interface thread: NPT1/2
        G4         Interface thread: G1/4
        G2         Interface thread: G1/2
        M2         Interface thread: M20*1.5
                  Custom thread
          H       external thread
          K       internal thread
                4-20 ma output
                1-5 v output
                0 to 10 v output
              C   M12 x 1 connector
                B No damper, no heat sink
                Z Damper (optional)
                S Heat sink (optional)
* The selection table is only available for parameter selection, and the corresponding code is delivered.
