Compact Differential Pressure Transmitter – PN51

PREV: Digital Display Pressure Transmitter Controller – PN53E

Product introduction

The PN51 series compact differential pressure transmitter consists of a dual-isolated differential pressure sensor and an integrated amplifier circuit, offering high stability and excellent dynamic measurement performance. It is equipped with a high-performance microprocessor that performs non-linear and temperature drift compensation on the sensor, enabling accurate digital data transmission, field device diagnostics, and remote bidirectional communication. This makes it suitable for the measurement and control of liquids and gases.

With a wide range of selectable measurement ranges, the PN51 transmitter can meet the diverse needs of users and is widely used in metallurgy, machinery, petroleum, chemical engineering, power plants, light industry, food, environmental protection, national defense, and scientific research.

Working Principle:

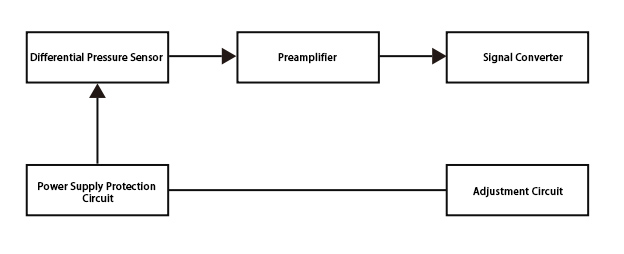

The pressure from the process is applied to the sensor, which outputs a voltage signal proportional to the pressure. This signal is amplified and converted into a standard 4–20mA current signal. The transmitter includes a power supply protection circuit and a precise temperature compensation circuit to ensure stable operation.

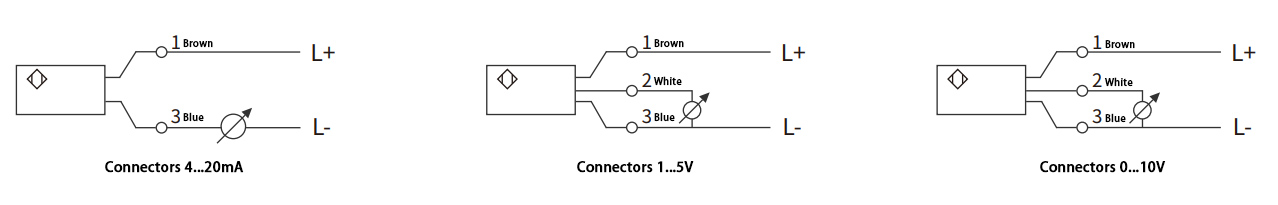

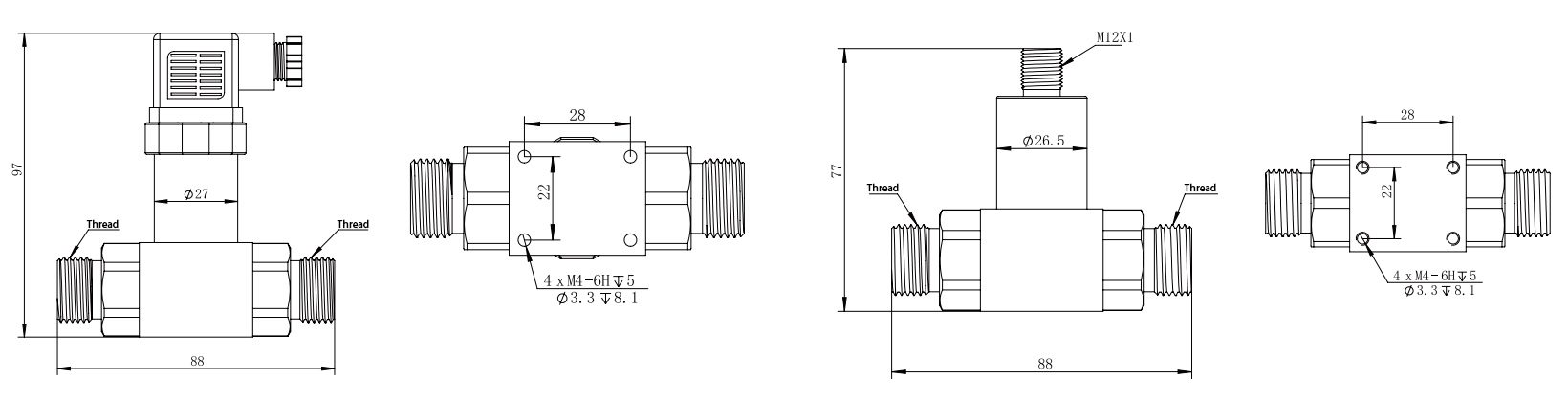

Technical Specifications Wiring Diagram Dimension Drawing Model Selection Guide Precautions

Measuring Range	0...0.2 bar to 0...35 bar
Accuracy	±0.5%
Power Supply	24VDC(10-30)VDC
Output Signal	4-20mA DC
Long-Term Stability	≤ ±0.2% F.S/year
Overload Pressure	≤ 3x rated pressure
Operating Temperature	（-20～80） ℃
Interface Size	Customizable

PN51-	...	A	G4	H	1	Detailed Description
PN51-						PN51 Series Compact Differential Pressure Transmitter
	...					Measuring Range: 0...0.2 bar to 0...35 bar (customizable by user)
		A				Output: 4-20mA
		B				Output: 0-5V
		C				Output: 1-5V
		D				Output: 0-10V
			G4			Thread Interface: G1/4
			G2			Thread Interface: G1/2
			N4			Thread Interface: NPT1/4
				H		External Thread Connection
				K		Internal Thread Connection
					1	Hirschmann Connector
					2	M12*1 Connector
Note: The selection table is for parameter configuration only. Final product is manufactured based on the selected code.

The transmitter is compact and lightweight and can be installed directly at the measurement point. Ensure the sealing of pressure ports to prevent air leakage that may affect accuracy.

Proper wiring as per specifications will allow the transmitter to function immediately. For high-accuracy applications, allow the device to warm up for 30 minutes before use.

It is recommended to install a two-way valve at the measuring point to prevent excessive static pressure on either side of the transmitter.

Only use the transmitter with gases or liquids that are non-corrosive to the 316L stainless steel diaphragm.

Follow the wiring instructions strictly to ensure proper operation.

In environments with strong electromagnetic interference or high performance requirements, use shielded cables.
