Intelligent pressure switch-PN800

Product introduction

The PN800 series of intelligent pressure switches uses a high-precision diffusion silicon core to ensure high accuracy and durability of the pressure switch.
Maximum measuring range: -1... .600bar, menu setting of switching point start and end points, output function and memory function. .600bar, menu setting for switching point start and end points, output function, and memory function, so that the setting does not need to be done on site. Highly reliable, the output can be used directly with a PLC, and the M12 locking connector provides easy access and a high degree of protection. Positive or negative pressure can be measured.

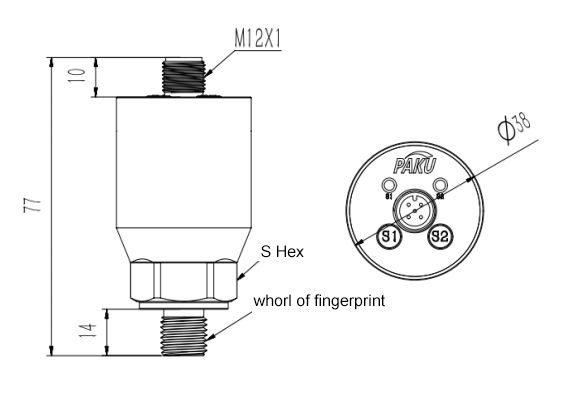

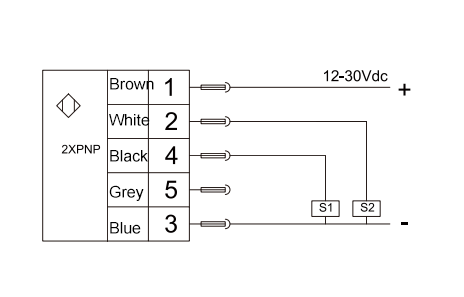

Technical Parameters Dimension Drawing Wiring Diagram Range Chart Selection Table

-Supply voltage: 12....30Vdc
-High precision diffusion silicon core
-No-load current consumption: 30mA max, 24Vdc power supply
-Switching output:
-Output type: PNP, NPN optional normally open and normally closed can be set.
S1, S2 Output current: <500mA Response time <10ms
Switching accuracy: ≤±0.5% of range
Load RA:≤0.5KOhm
-Linearity: ≤ 0.5% of range
-Wiring protection: reverse phase, overload, short circuit protection
-Accuracy: ≤±0.5% of range
Stability (annual drift): ≤ ± 0.3% of the range
Temperature: medium temperature: -20...85°C Ambient temperature: -20...85°C .85°C
Ambient Temperature: -20.... .80°C
Storage temperature: -30... .80°C Material: Housing: -30... .80°C .80℃ Material: Shell: Stainless steel 304
Media contact part: Stainless steel 304
-Protection class: IP56
- Outlet: M12x1 connector

coding Standard ranges
A    Setting range :0..10bar
B    Setting range:0..25bar
C    Setting range :0..100bar
D    Setting range :0..160bar
E    Setting range :0..250bar
F    Setting range:0..400bar
G    Setting range:0..600bar
H Customised ranges, e.g. -1...1bar
 Option : H-1...1
PN800- P   N.. H.. N.. H.. G4 H Q Details
PN800-                   PN800 Series Intelligent Pressure Switches
  P                 PNP Output
     A               Selection by reference to the range table
S1 alarm point setting N..             Normally open, e.g. 50bar normally open, option: N50
F..             Normally closed, e.g. 50bar normally closed, option: F50
        H..           Tolerance: user-defined, e.g. 1bar:H1
(Customer has no requirement to set according to the tolerance of 1bar)
S2 Alarm point setting N..         Normally open, e.g. 80bar normally open, option: N80
F..         Normally closed, e.g. 80bar Normally closed, option: F80
            H..       Differential: user-defined, e.g. 1bar:H1
(customer does not require 1bar differential)
              G4     Interface thread: G1/4
              G2     Interface thread: G1/2
                    Customised thread
                H   External thread
                K   Internal thread
                  Q M12*1 connector
*The selection table is for parameter selection only, and is shipped with the corresponding code of the parameter.
