Compact Mechanical Adjustable Pressure Switch - PN330

Product introduction

The pressure switch has built-in bellows and mechanical structure. When the system pressure rises or falls, the corresponding regulating spring and bellows generate extension or contraction displacement, and the lever pushes the switch to cut off or connect the control loop.
Compact structure, wide measuring range (0... 30bar), high repeatability, hysteresis adjustable, contact silver plated.

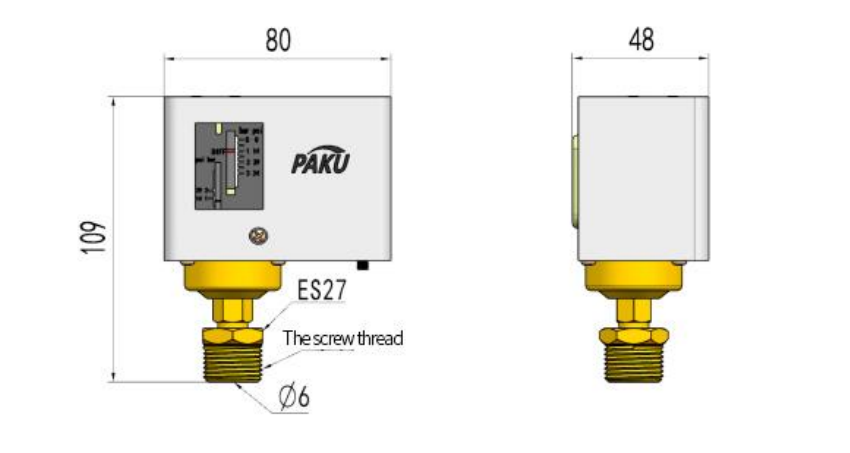

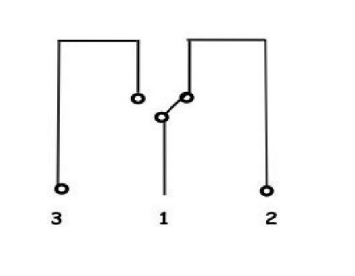

Technical Specification Wiring Diagram Parameter List Dimension Figure Selection Table

- Measurement range: See the table below
- Slag: See the table below
- Error: See the table below
- Output: normally open + normally closed contacts silver plated
≤DC 42V,1A
≤DC 115V,0.15V
≤DC 42V,3A
≤DC 125V,3A
≤DC 250V,0.5A
- medium temperature: -30... 100 ℃
- Protection Protection: IP33
- Wiring mode: terminal wiring
- interface thread: M12*1.25
- Connection material: brass nickel plating
- Shell: NBR

Model adjustable range
( bar )
Adjustable hysteresis
( bar )
specification error
( bar )
repeatability
( bar )
PN330-02MM12H 0--2 0.2--1 ±0.2 0.08
PN330-03MM12H 0--3 0.3--1.2 ±0.2 0.08
PN330-06MM12H 0--6 0.4--1.5 ±0.3 0.10
PN330-10MM12H 1--10 1--3 ±0.5 0.20
PN330-12MM12H 2--12 1--4 ±0.5 0.20
PN330-20MM12H 4--20 1--4 ± 1.0 0.35
PN330-30MM12H 5--30 2--8 ± 1.5 0.50

PN330- 02  M M12 H specification
PN330-         PN330 series mechanical adjustable pressure switch
  02        Measuring range: 0--2bar
  03        Measuring range: 0--3bar
  06        Measuring range: 0--6bar
  10        Measuring range: 1--10bar
  12        Measuring range: 2--12bar
  20        Measuring range: 4--20bar
  30        Measuring range: 5--30bar
    M     Liquid part material: brass nickel plating
      M12   Interface thread: M12*1.25
      G12   Interface thread: G1/2
      G14   Interface thread: G1/4
        H external thread
* The selection table is only available for parameter selection, and the corresponding code is delivered.
