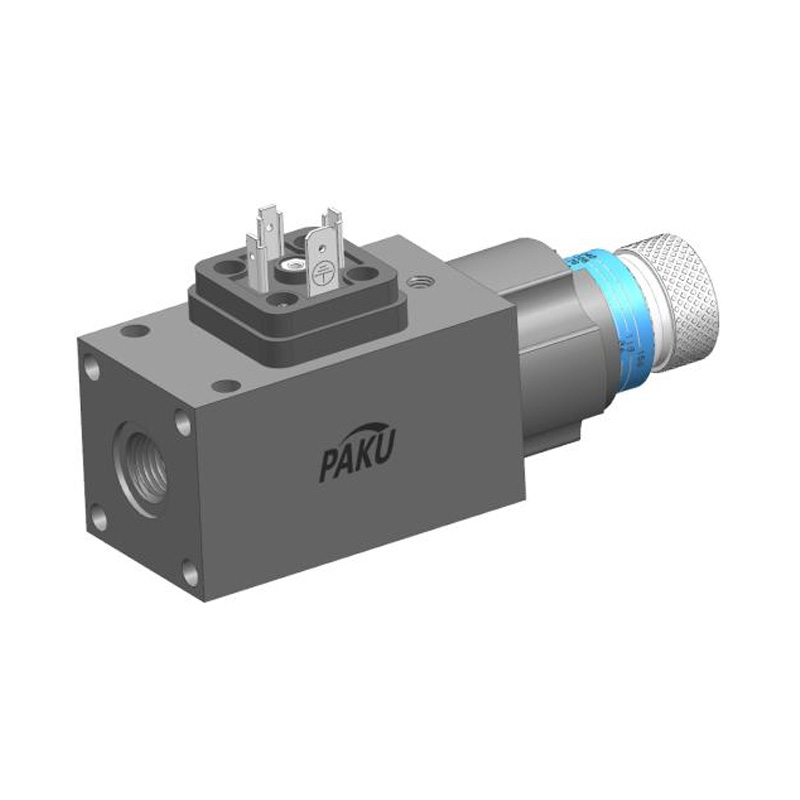

Product 3D Image
Get coupons

Adjustable Rotary Piston Pressure Switch - PN10C

Product introduction

Pressure switch adopts thin film (low pressure) or piston (high pressure) measuring element, can be used for gas or liquid pressure detection. When the pressure reaches the set value, the moving parts trigger a spring-supported microswitch. Can be installed in plate type. Can measure neutral gas, air, lubricating oil, oil and other media.

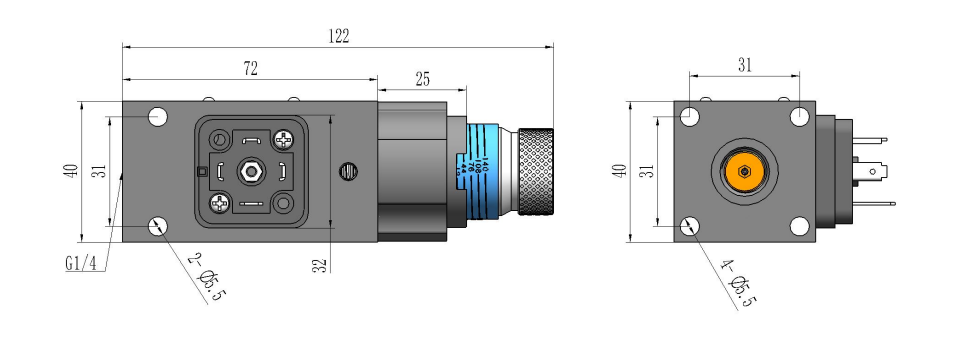

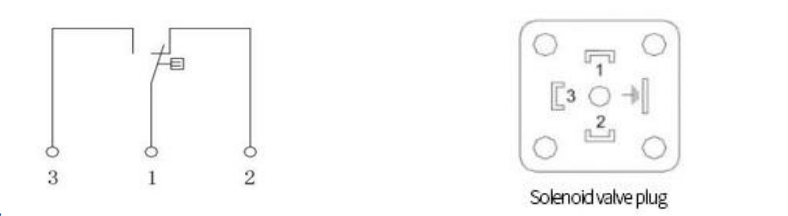

Technical Specification Wiring Diagram Dimension Figure Selection Table

- Measurement range: See the table below
- Error: See the table below
- Hysteresis: ± 10% of the set value
- Error: ±2% of the set value
- output:5( 4 )A / 14Vdc 4( 3 )A / 30Vdc 5( 3 )A / 125Vac 3( 2 )A / 250Vac
- Pressure: 900bar
- Protection Protection: IP65
- Contact life: 106 times
- Electrical contact: Silver SPDT
- Sealing: NBR + Teflon

PN10C- 008  L G4 F R specification
PN10C-           PN10C series adjustable knob piston
pressure switch
  008          Measuring range: 8... 150bar
  040          Measuring range: 40... 400bar
    L       anodised aluminium
      G4     Interface thread G1/4
        F   internal thread
          R   Form
* The selection table is only available for parameter selection, and the corresponding code is delivered.
