Float Type Liquid Level Switch-LF01

Product introduction

In the sealed non-magnetic stainless steel tube is provided with a dry reed tube, the floating ball is equipped with an annular magnetic ring, the floating ball moves with the rise or fall of the liquid level, thus triggering or releasing the magnetic reed switch in the stainless steel tube, sending a switch signal.
Can be installed at the top or bottom, compact and firm structure, reliable performance, good repeatability, long life, high temperature resistance.

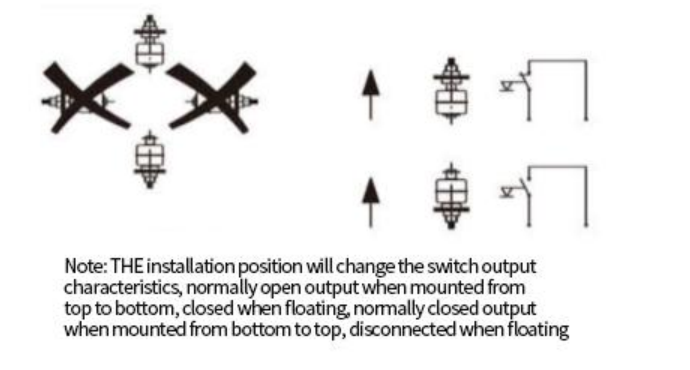

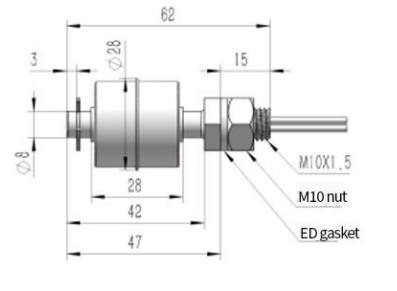

Product Application Technical Specification Wiring Diagram Dimension Figure Selection Table Applicable Medium Installation Instructions

Used for liquid level measurement with density ≥0.75g/cm³

- Maximum pressure: 5bar
- Medium temperature: -10℃--130℃
- medium density: ≥0.75g/cm3

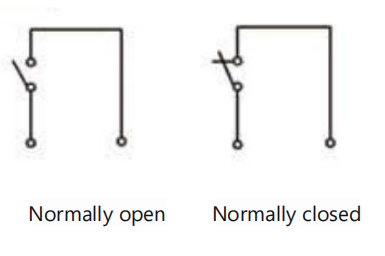

- Output: Normally open or normally closed
- Contact type: Dry reed switch
- Contact capacity:250VAC.0.5.A
- Protection grade:IP65
- Cable connection: Direct cable connection
- Material: Stainless steel/PP/PVDF

LF01- A M1 H K X specification
LF01-
  A         In the transition
    M1
      K     stainless steel housing
      P     PP+PVDF PTFE housing
        X
        P   Float material: 304 stainless
        F   Float material: PP
          N Floatmaterial:PVDF
          F normally open
*  The  type  selection  table  is  only  for  technical  selection,  and  the
corresponding type of the factory model is reflected by the code.
